Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Wiper Motor >> Testing and Inspection >> Component Tests and General Diagnostics >> Test 106A: Wipers Inoperative In Low Speed Mode >> Part 2 of 2

Part 2 of 2

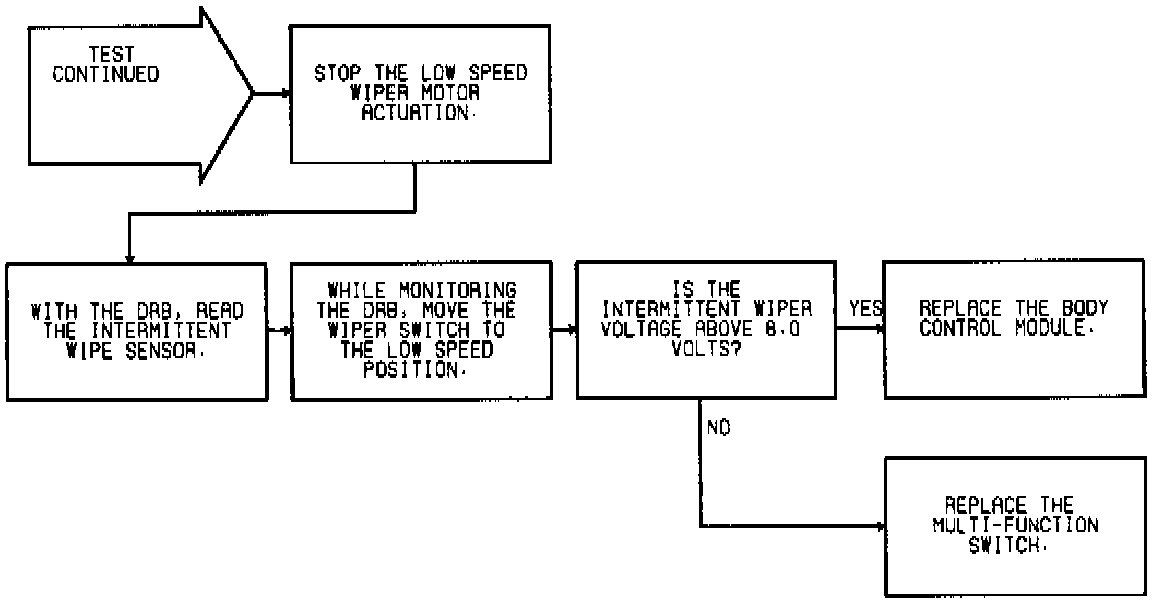

Fig.32 Test 106A: Wipers Inoperative In Low Speed Mode Part 2 of 2:
