Regulator Replacement

REMOVAL
1. Remove door trim panel and water shield.
2. Disconnect wire connector to power window motor.

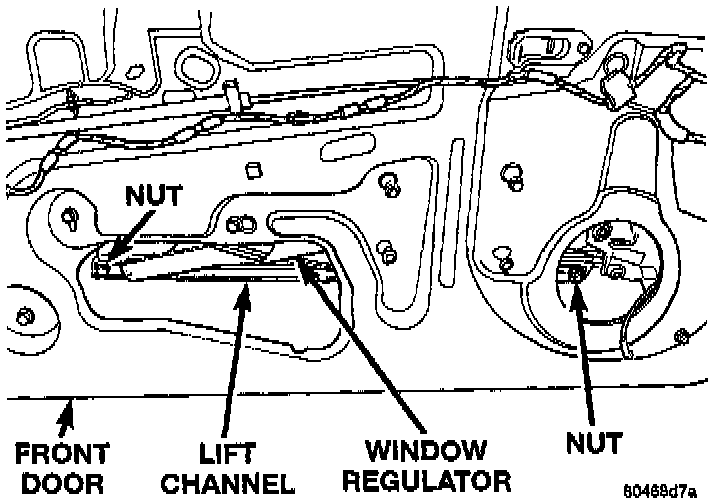

Regulator Lift Channel:

3. Remove nuts holding regulator lift channel to door glass.
4. Secure door glass in upward position.
5. Mark position of rear bolt of roller channel to inner door panel to aid in installation.
6. Remove bolt holding rear of roller channel to door panel.
7. Loosen bolt holding front of roller channel to door panel.

Roller Channel:

8. Separate roller channel from door panel.
9. Loosen bolts holding window regulator to inner door panel reinforcement.
10. Separate bolt heads from key-hole slots in inner door panel.

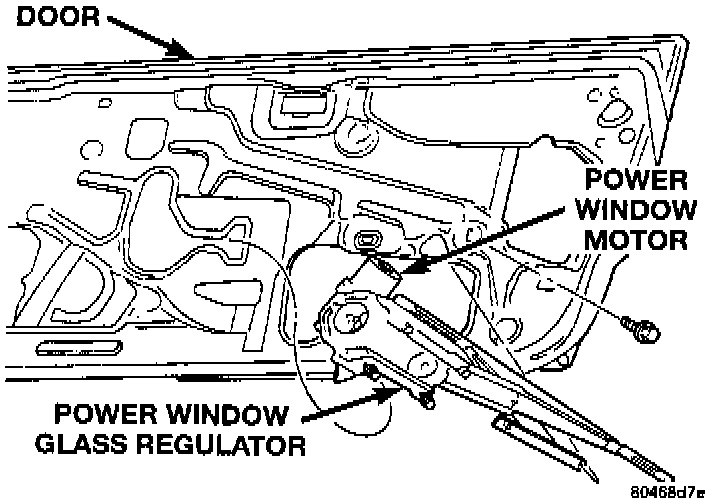

Power Window Regulator:

11. Remove window regulator through large hole in inner door panel.
12. Remove power window motor from regulator.

INSTALLATION
1. Install power window motor on regulator.
2. Move window regulator into position in door and engage bolt beads into key-hole slots in inner door panel reinforcement and tighten bolts.
3. Install roller channel to door panel.
4. Install bolt at rear of roller channel. Make sure that bolt is aligned to mark on inner door panel made previously
5. Tighten front and rear bolts of roller channel.
6. Install nuts holding regulator lift channel to door glass.
7. Verify glass fit and operation. Adjust door glass, if necessary
8. Connect wire connector to power window motor.
9. Install door trim panel and water shield.
