Quarter Glass Adjustment

NOTE: The door glass must be properly adjusted prior to performing any quarter glass adjustments.

UP-STOP ADJUSTMENTS
1. Remove quarter trim panel.
2. Remove center and rear side rail weatherstrips from side rail weatherstrip retainer channels.
3. Loosen up-stop nuts.
4. Raise quarter glass.

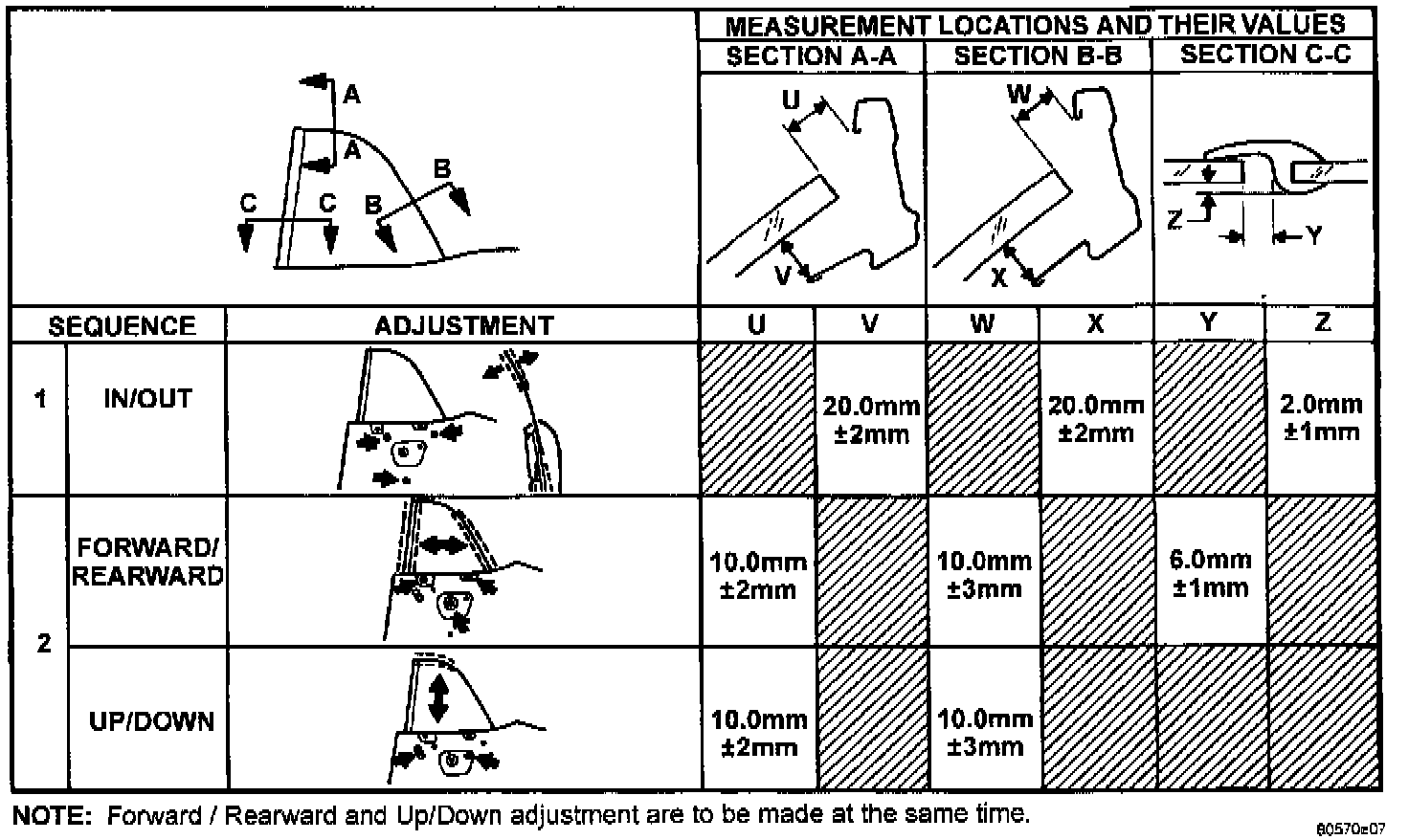

Window Adjustment Specifications:

5. Slide up-stop to achieve proper glass to weatherstrip retainer gap.
6. Tighten all fasteners.
7. Install center and rear side rail weatherstrips to side rail weatherstrip retainer channels.
8. Cycle quarter glass between full up and full down positions. Verify operation and re-adjust as necessary.
9. Verify that the top edge of the door glass is beneath the lip of the weatherstrip.
10. Install quarter trim panel.

TOP OF GLASS-INBOARD/OUTBOARD ADJUSTMENTS
1. Remove quarter trim panel.
2. Remove center and rear side rail weatherstrips from side rail weatherstrip retainer channels.
3. Using a suitable wrench, loosen the lower jackscrew jam-nuts.
4. Raise quarter glass.

Window Adjustment Specifications:

5. Using a suitable allen-wrench, rotate jack- screws to achieve the proper gap between the door glass weatherstrip retainer channel.
6. Verify that the quarter glass maintains even contact with the outer belt weatherstrip.
7. Install center and rear side rail weatherstrips to side rail weatherstrip retainer channels.
8. Cycle quarter glass between full up and full down positions. Verify operation and re-adjust as necessary.
9. Tighten all fasteners.
10. Verify that the top edge of the door glass is beneath the lip of the weatherstrip with glass in the full up position.
11. Install quarter trim panel.

GLASS-FRONT/REAR ADJUSTMENT
1. Remove quarter trim panel.
2. Remove center and rear side rail weatherstrips from side rail weatherstrip retainer channels.
3. Loosen glass attachment bolts.

Window Adjustment Specifications:

4. Raise quarter glass and position correctly.
5. Tighten all fasteners.
6. Install center and rear side rail weatherstrips to side rail weatherstrip retainer channels.
7. Cycle quarter glass between full up and full down positions. Verify operation and re-adjust as necessary.
8. Install quarter trim panel.

QUARTER GLASS ALIGNMENT VERIFICATION
1. Raise door glass to full up position.
2. Cycle quarter glass between full up and full down positions.
3. Verify that quarter glass operates smoothly and maintains correct alignment to convertible top and door glass.
4. Verify that quarter glass weatherstrip fully contacts door glass.
5. Verify that no scissoring of the door glass and weatherstrip occurs.
6. If any of the above conditions are found
a. Re-adjust quarter glass.
b. Adjust the door glass as necessary to cure the condition.
