Front Door Glass Adjustment

NOTE: Verify that the door is properly adjusted to the body prior to adjusting the door glass.

NOTE: Lower quarter glass to the full down position while making door glass adjustments, unless otherwise instructed.

UP-STOP ADJUSTMENTS
1. Remove door trim panel.
2. Remove water shield as necessary to gain access to adjuster.

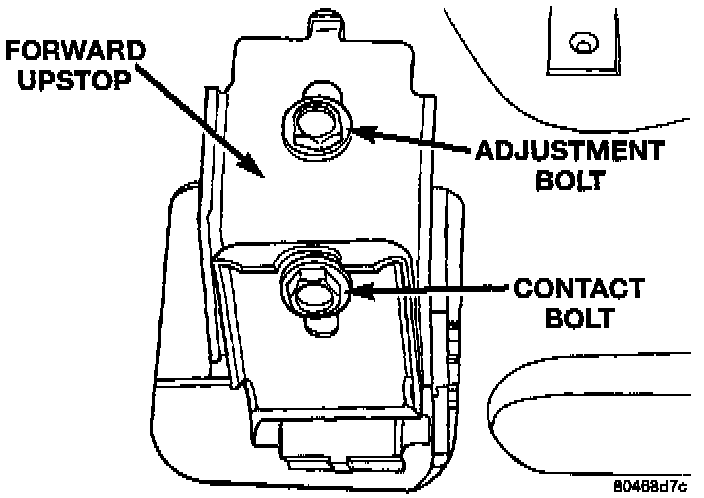

Forward Up-Stop Adjustment:

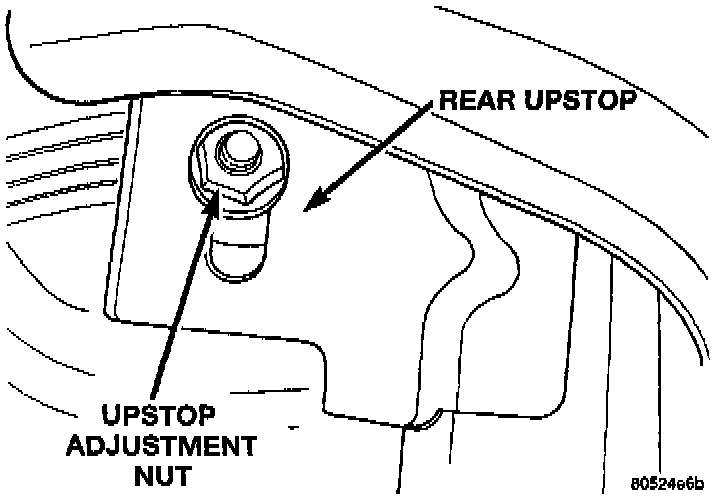

Rear Up-Stop Adjustment:

3. Loosen up-stop bolt (front) and nut (rear).
4. Remove weatherstrip from location to be adjusted.

NOTE: Remove only one weatherstrip section at a time or the glass to weatherstrip retainer measurements will not be accurate.

5. Close door and raise door glass.

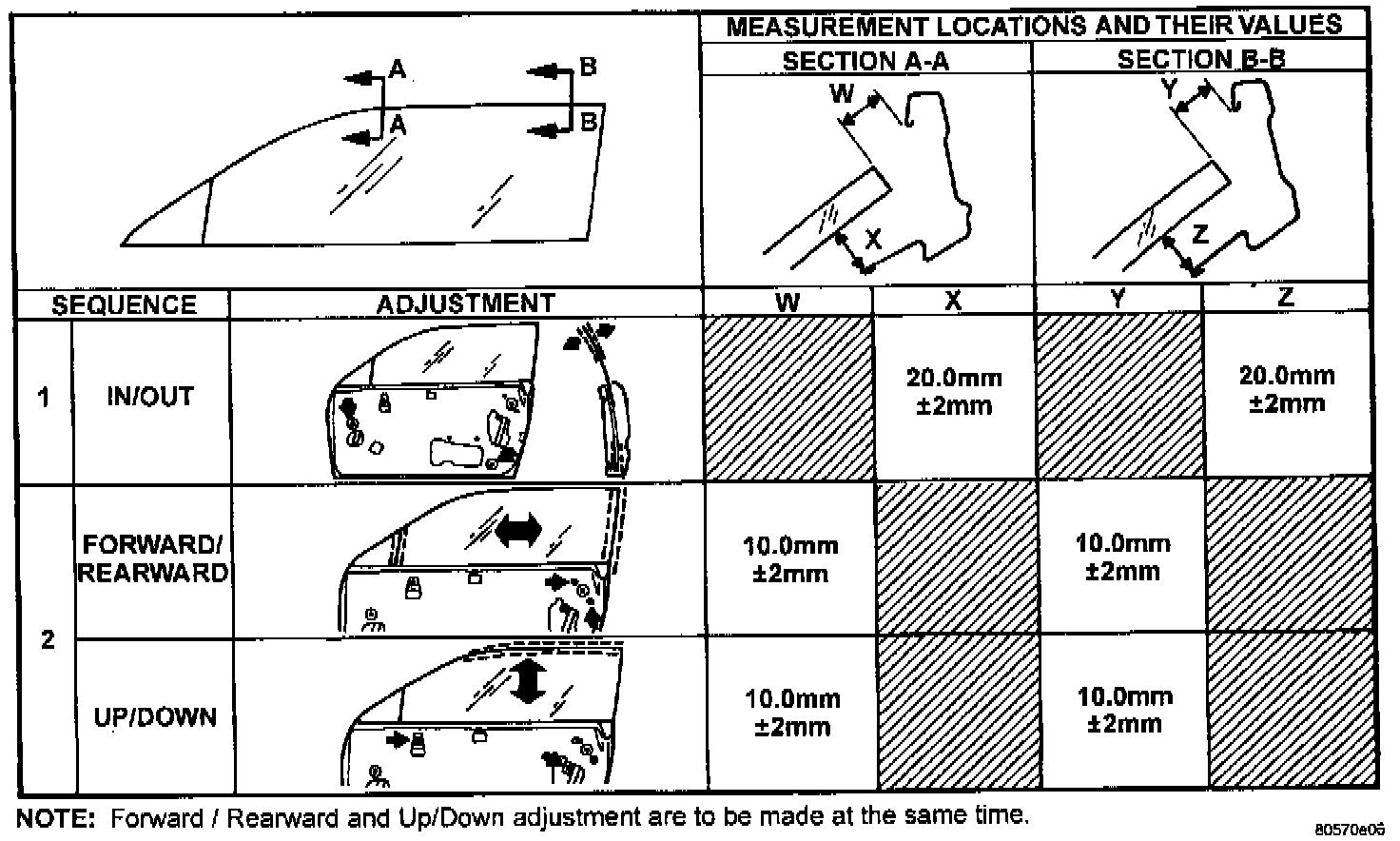

Window Adjustment Specifications:

6. Slide up-stop to achieve proper glass to weatherstrip retainer gap.
7. Tighten all fasteners.
8. Verify that forward upstop fully contacts hook on glass. Adjust contact bolt on forward up-stop as necessary.

TOP OF GLASS-INBOARD/OUTBOARD ADJUSTMENTS
1. Remove door trim panel.
2. Remove water shield as necessary to gain access to adjusters.

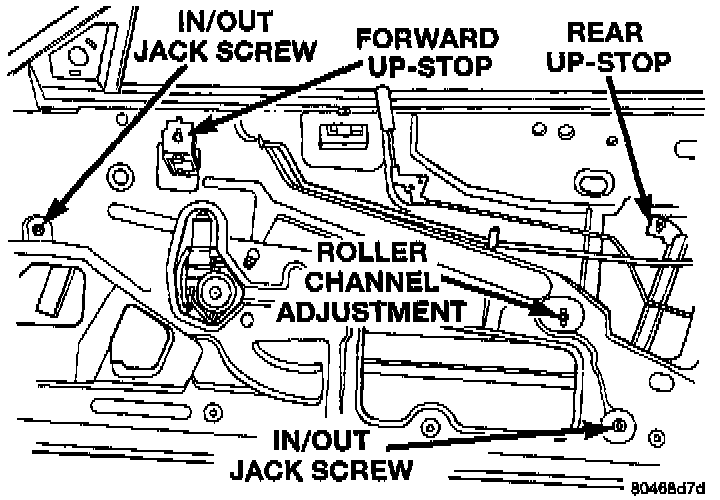

Inboard/Outboard Glass Adjustment:

3. Using a suitable wrench, loosen the lower jack- screw jam-nuts.
4. Remove weatherstrip from side rail weather- strip retainer at point to be adjusted.
5. Close door and raise glass.

Window Adjustment Specifications:

6. Using a suitable allen-wrench, rotate jack- screws to achieve the proper gap between the door glass weatherstrip retainer strip.

NOTE: Remove only one weatherstrip section at a time or the glass to weatherstrip retainer measurements will not be accurate.

7. Verify that the top edge of the door glass is beneath the lip of the weatherstrip.
8. Tighten all fasteners.

GLASS-FRONT/REAR ADJUSTMENT
1. Remove door trim panel and water shield.
2. Lower door glass to gain access to glass attachments.
3. Loosen three glass attachment bolts.

Window Adjustment Specifications:

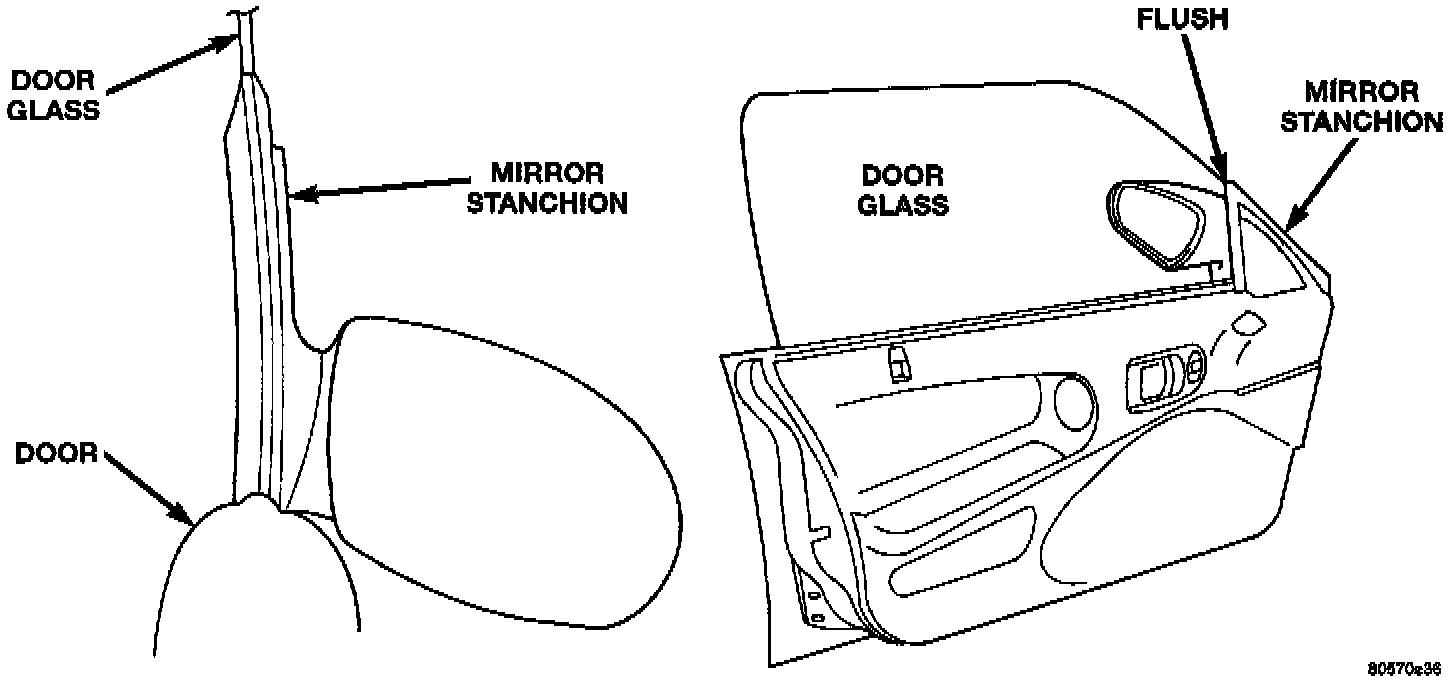

Front/Rear Glass Position:

4. Raise door glass and position correctly.
5. Tighten the two accessible glass fasteners in the full up position.
6. Lower door glass and tighten the remaining glass fastener.
7. Raise glass to top of travel and verify positioning.
8. To verify proper fit of the door glass to the header/A-pillar weatherstrip,
a Lower door glass slightly
b Place a paper strip between the glass and weatherstrip near mirror flag and another near the front upper corner of the door glass.
c Raise glass to full up position.
d Pull the strip from between the door glass and the weatherstrip. There should be slight tension on the paper.


DOOR GLASS ALIGNMENT VERIFICATION

NOTE: Door Glass Alignment Verification procedure must be done whenever the door glass is adjusted and after all adjustments are made.

1. Raise quarter glass to full up position.
2. Close door and cycle door glass between full up and full down positions.
3. Verify that door glass operates smoothly and maintains correct alignment to convertible top and quarter glass.
4. Verify that quarter glass weatherstrip fully contacts door glass.
5. Verify that no scissoring of the door glass and weatherstrip occurs.
6. If any of the above conditions are found,
a. Adjust quarter glass. Refer to Quarter Glass Adjustment procedures found in this section.
b. Re-adjust the door glass as necessary to cure the condition.
