Electrical Diagrams

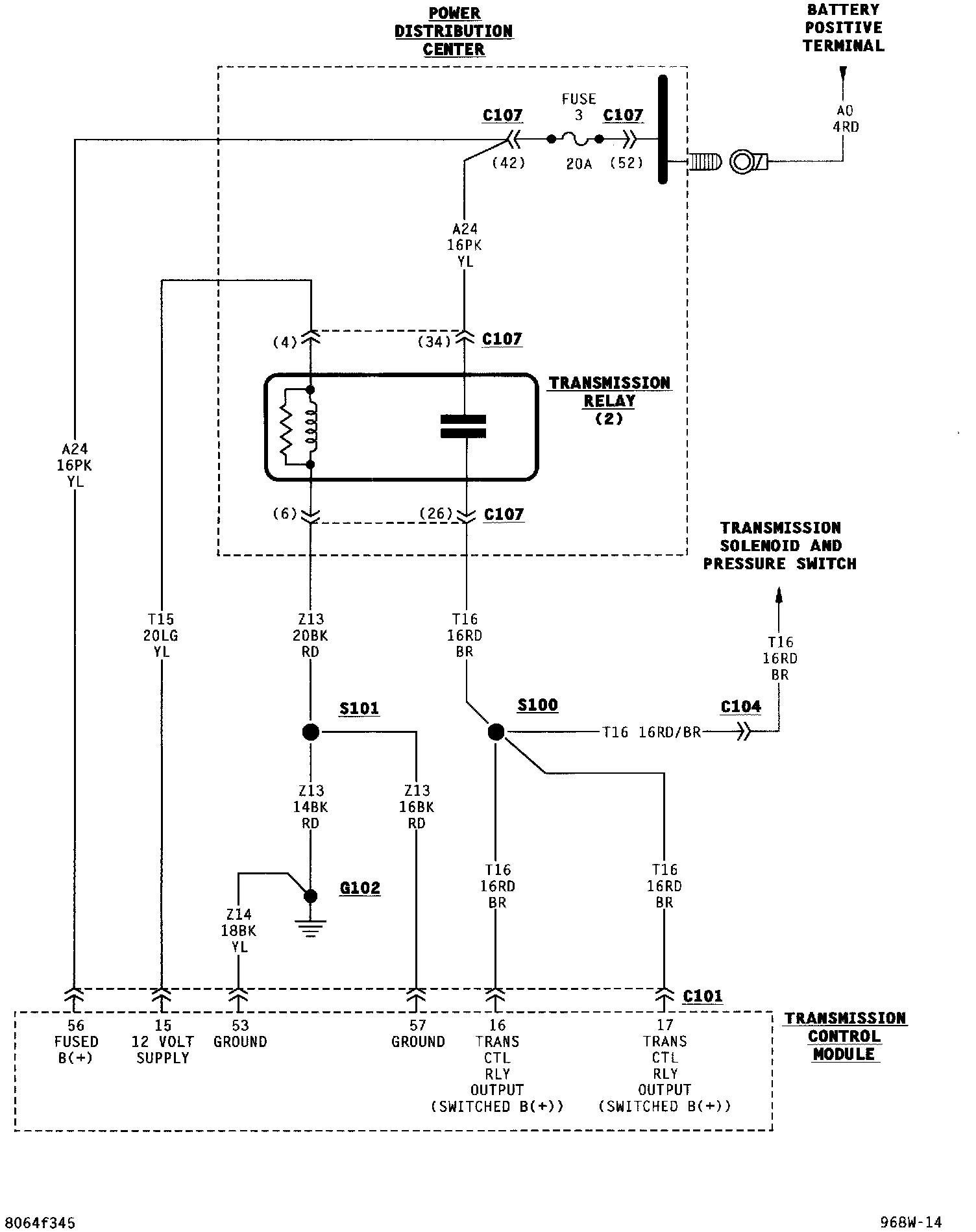

Fuse 3 (PDC)
Transmission Control Module
Transmission Relay (2)

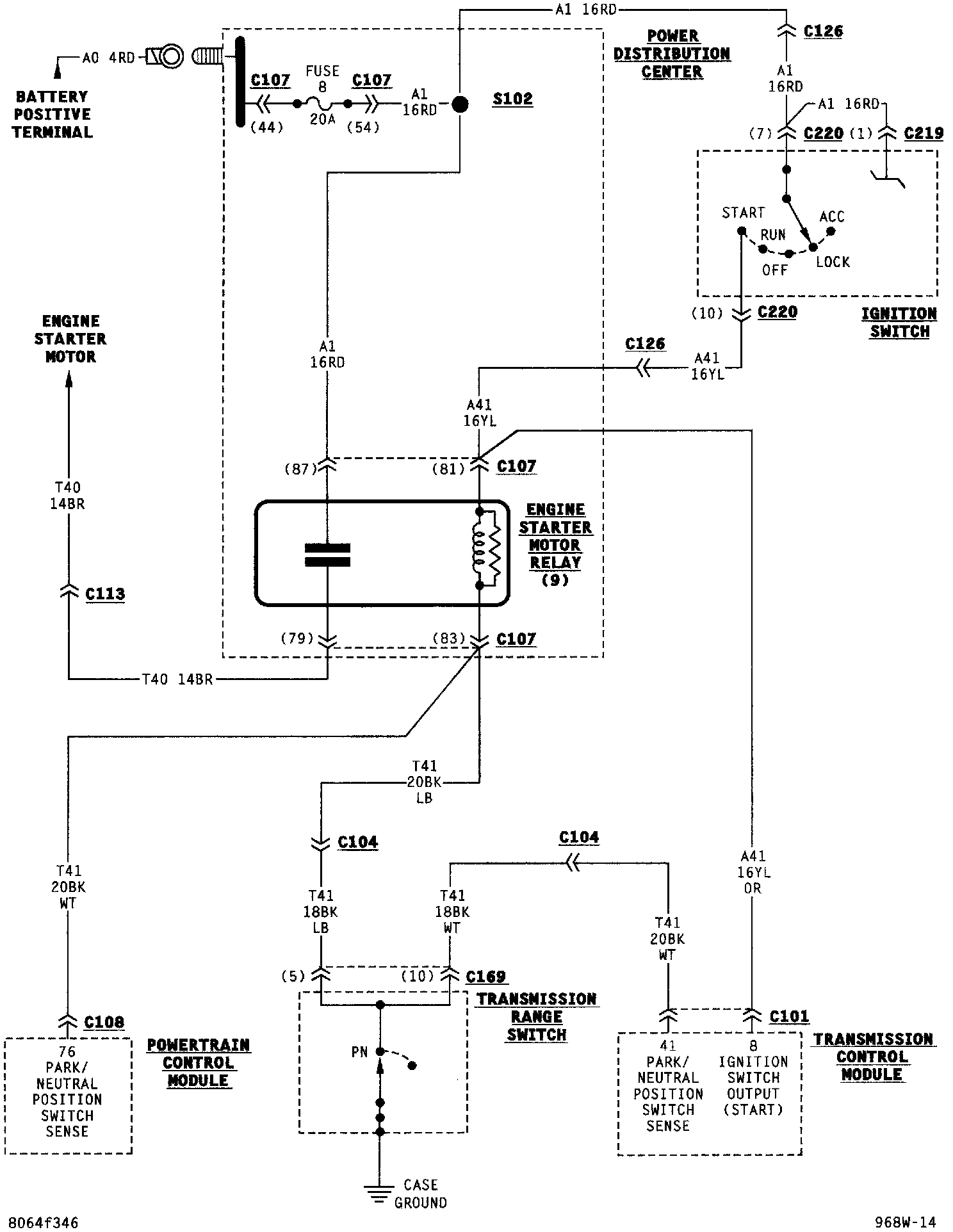

Engine Starter Motor Relay (9)
Fuse 8 (PDC)
Ignition Switch
Powertrain Control Module
Transmission Control Module
Transmission Range Switch

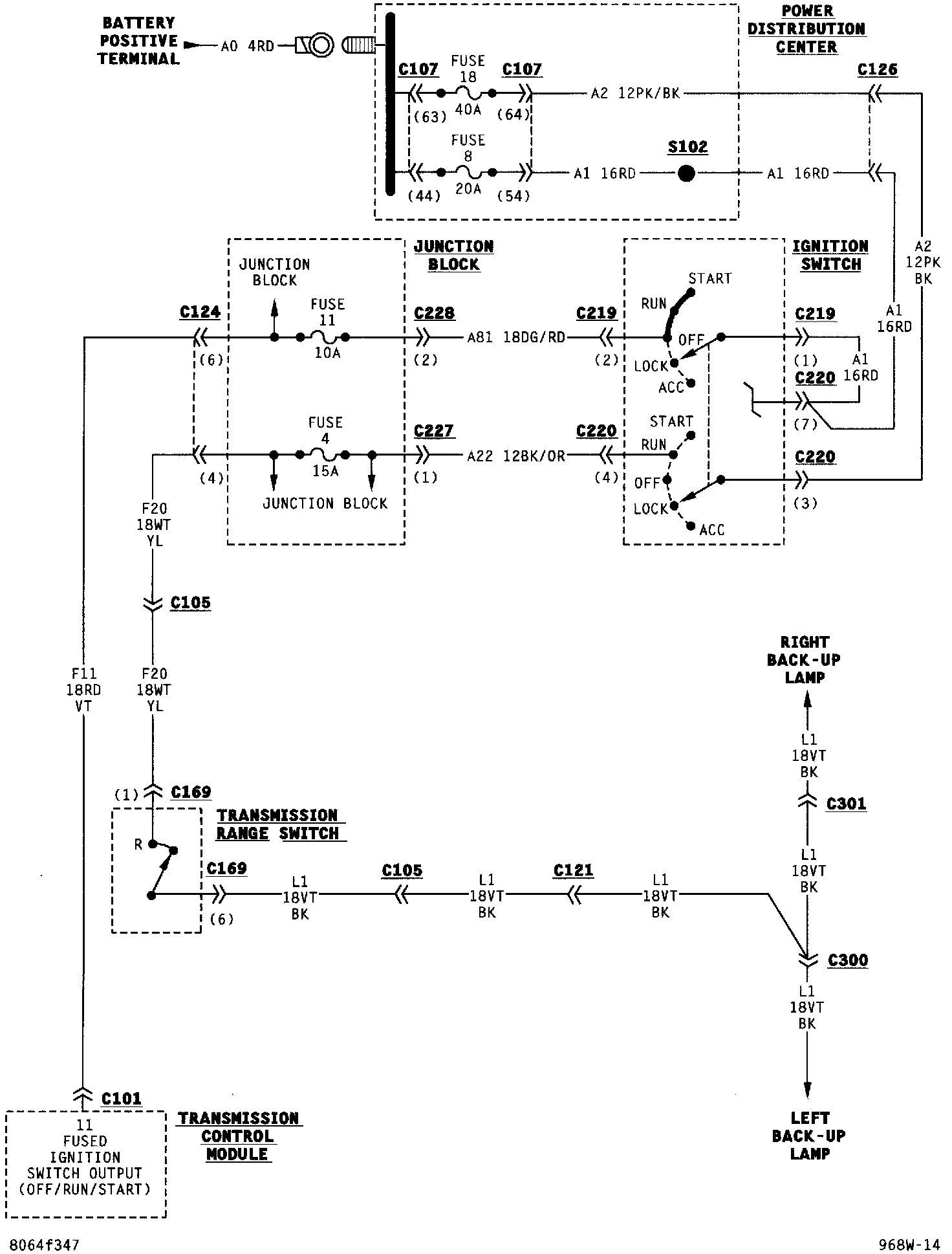

Fuse 4
Fuse 8 (PDC)
Fuse 11
Fuse 18 (PDC)
Ignition Switch
Transmission Control Module
Transmission Range Switch

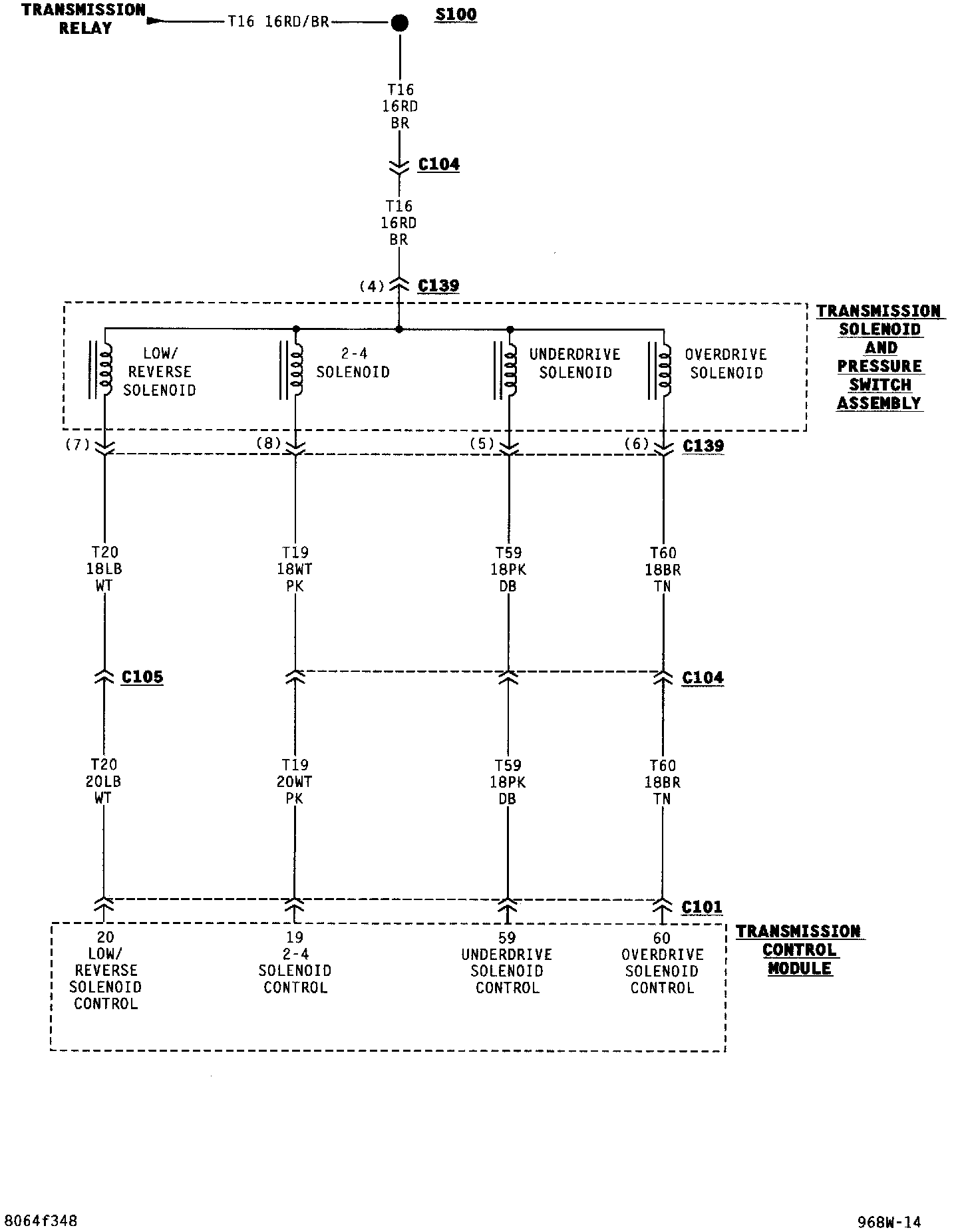

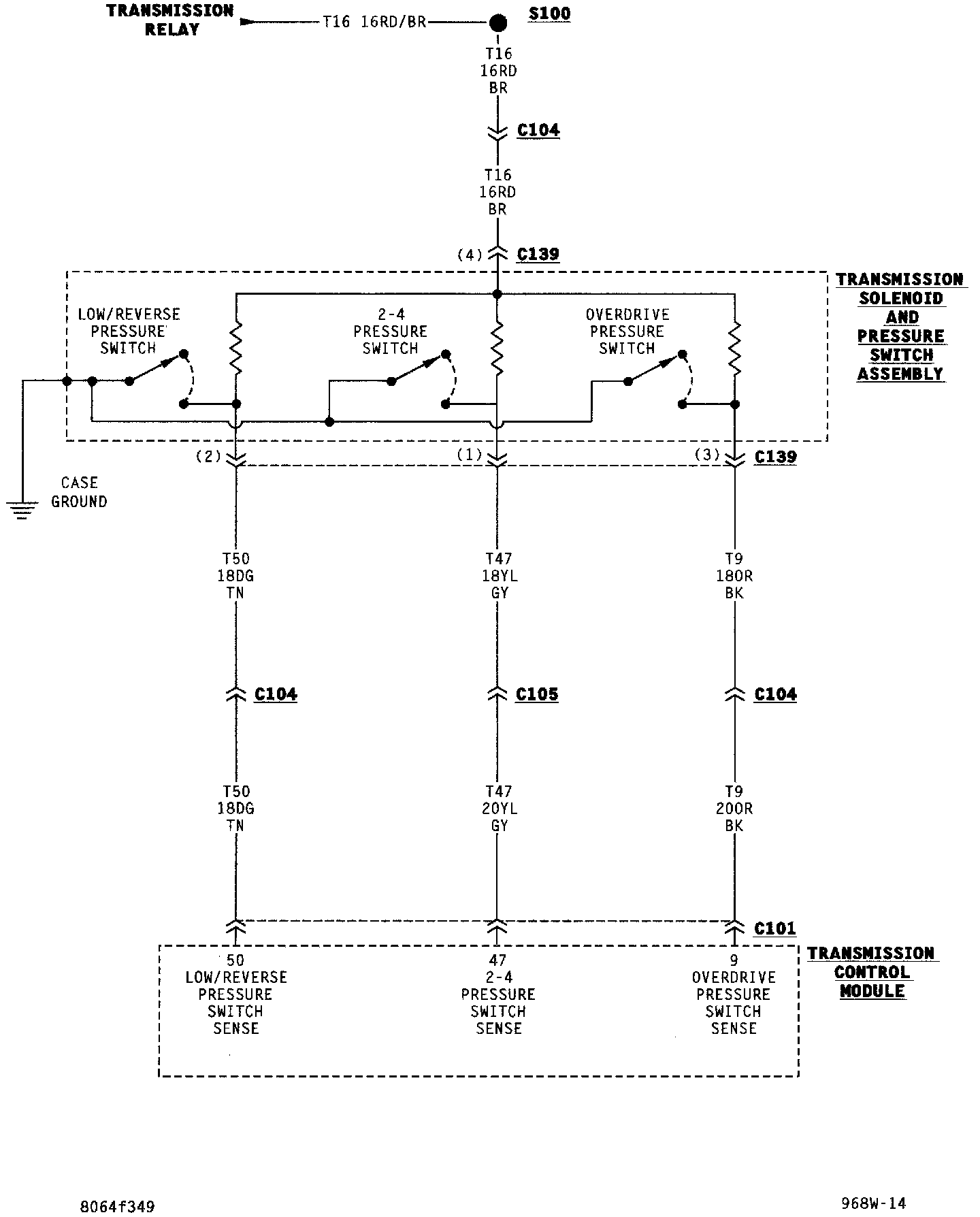

Transmission Control Module
Transmission Solenoid and Pressure Switch Assembly

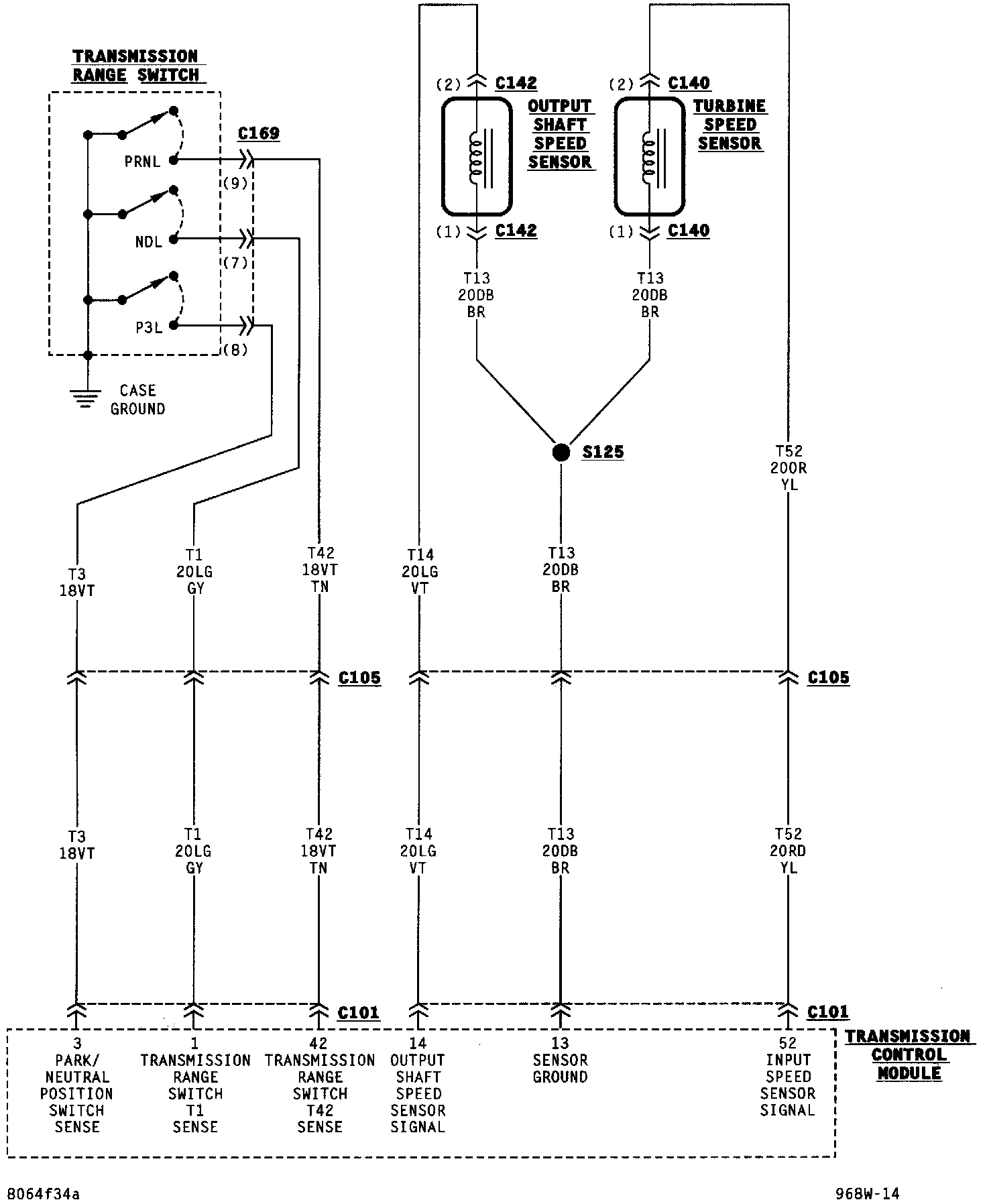

Output Shaft Speed Sensor
Transmission Control Module
Transmission Range Switch
Turbine Speed Sensor

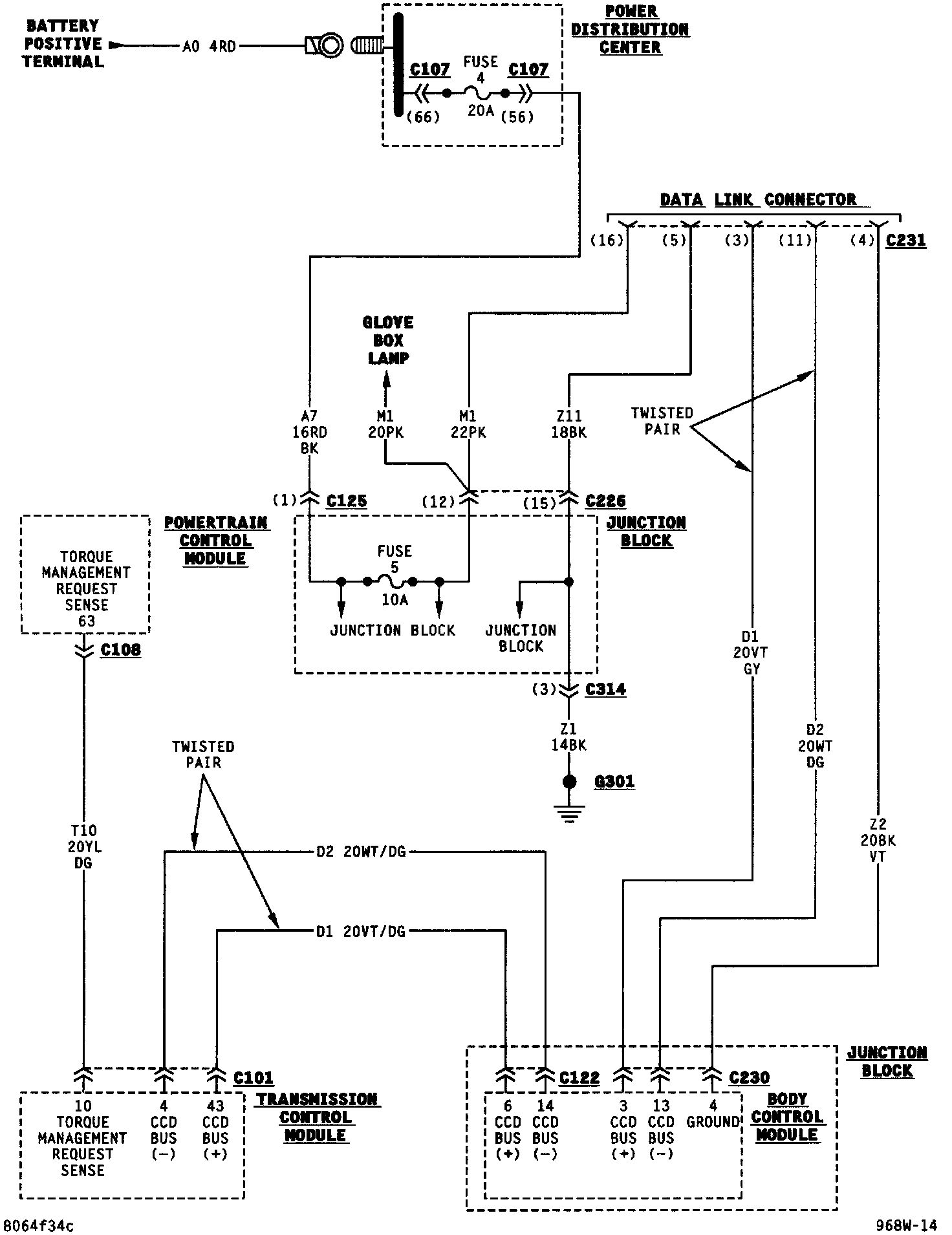

Powertrain Control Module
Transmission Control Module

Body Control Module
Data Link Connector
Fuse 4 (PDC)
Fuse 5
Powertrain Control Module
Transmission Control Module

Data Link Connector

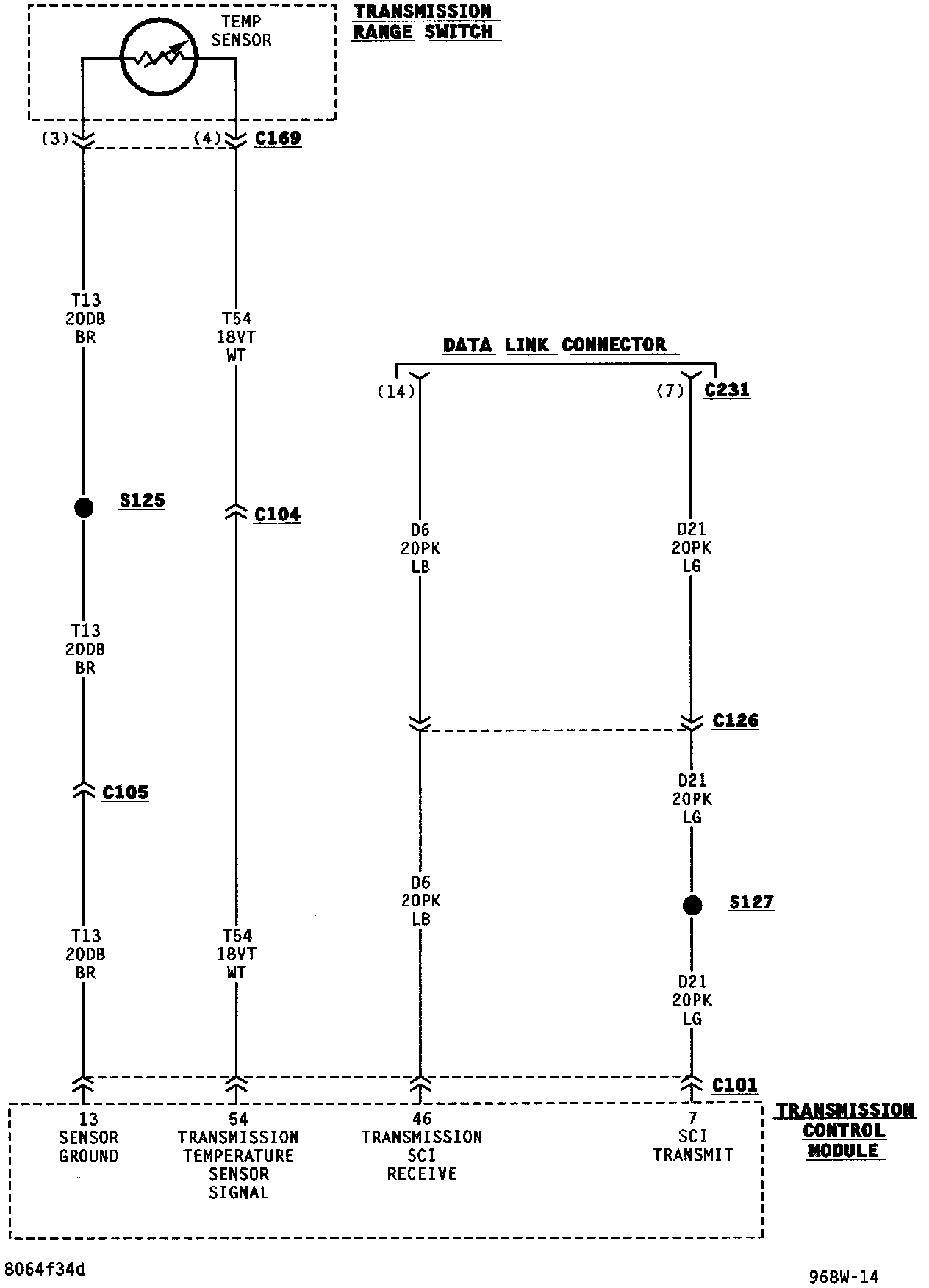

Transmission Control Module
Transmission Range Switch

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
