Clutch Cable: Service and Repair

1. Remove air cleaner assembly, then the clutch cable inspection cover.

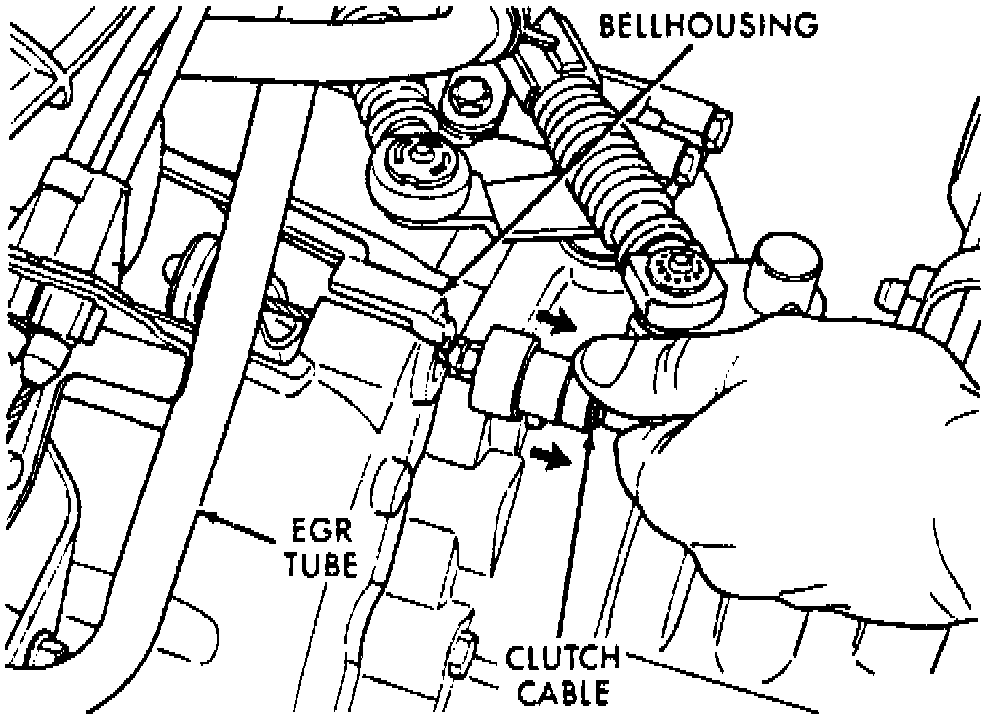

Fig. 2 Clutch Cable Removal:

2. Pull back on clutch cable housing and disengage cable from housing.

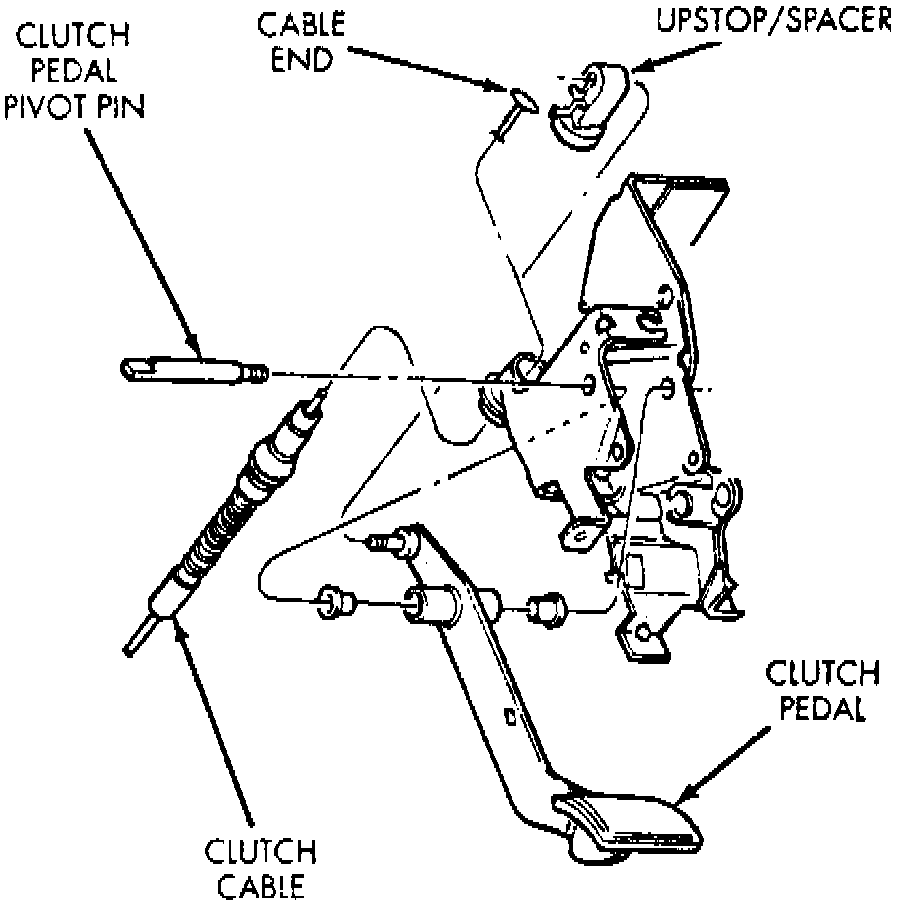

Fig. 3 Clutch Cable End Separation From Pedal Assembly:

3. Disconnect clutch cable up-stop/spacer with cable strand. Depressing the clutch pedal provides access to clutch cable strand.
4. Disconnect cable up-stop/spacer from pedal pivot by wedging a suitable flat blade pry tool between pin and retaining tab.
5. Hold tab slightly away from pin, then pull the up-stop/spacer off pedal.
6. Remove cable end from up-stop/spacer.
7. Reverse procedure to install.
