Solenoid Assembly Replacement

REMOVAL

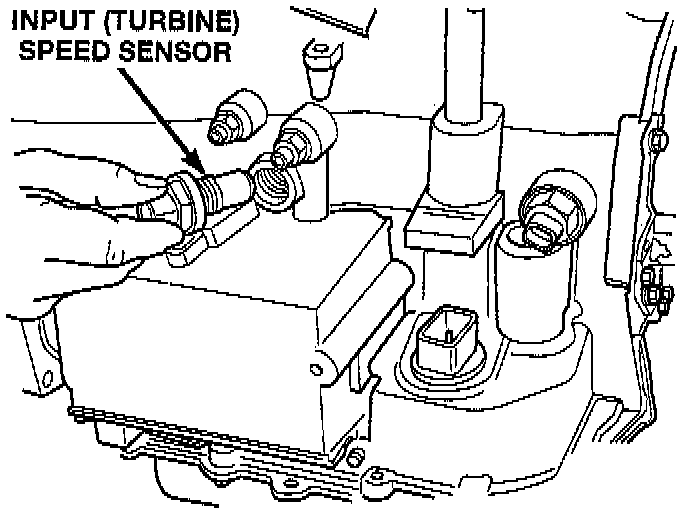

Input Speed Sensor Removed:

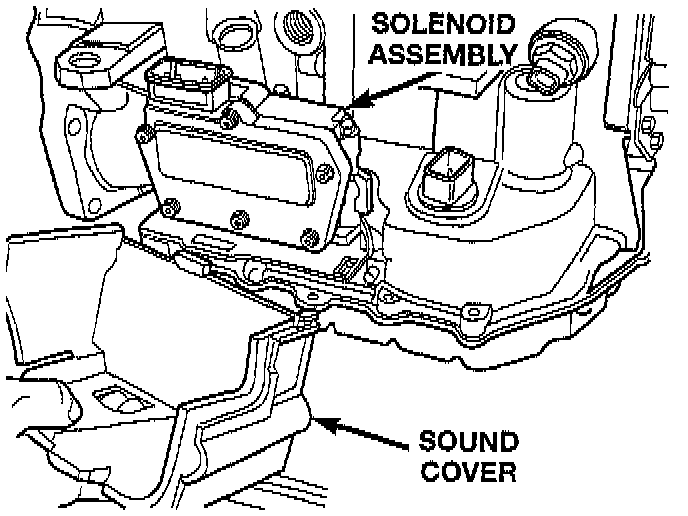

Remove Sound Cover:

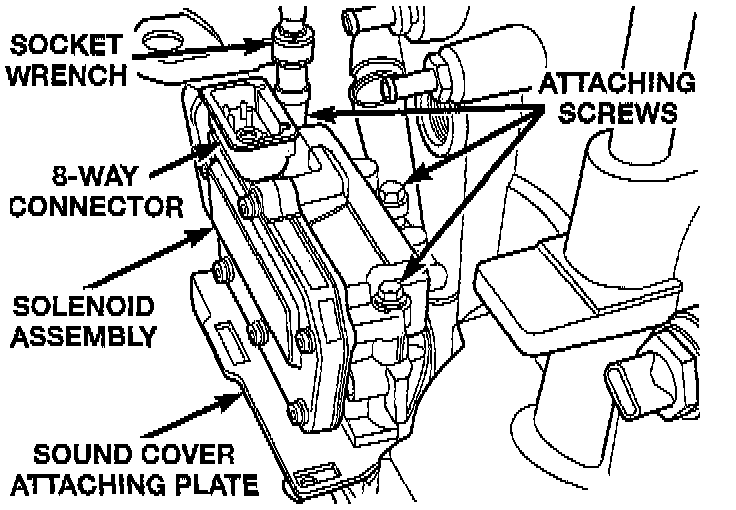

Remove Attaching Screws:

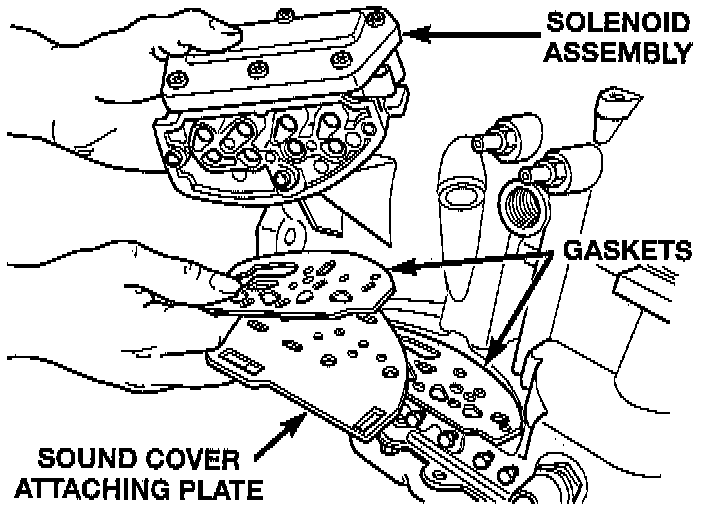

Remove Solenoid Assembly:

INSTALLATION
To install solenoid assembly, reverse removal procedure. Tighten screws to 12 Nm (105 inch lbs.).
