Removal and Installation

Removal

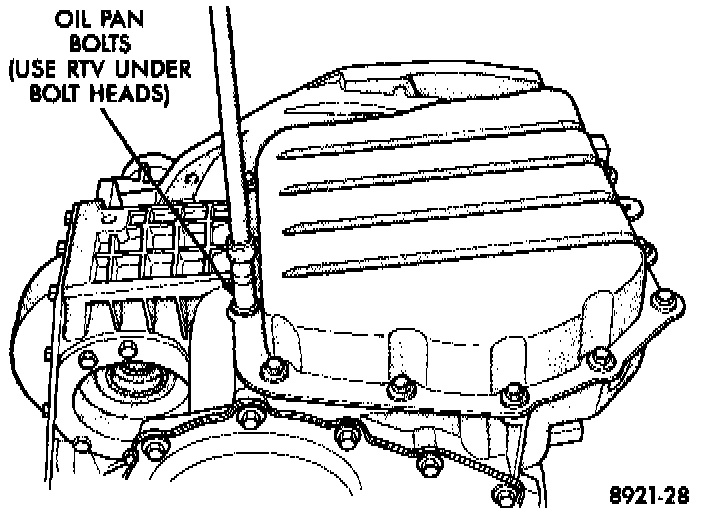

Oil Pan Bolts:

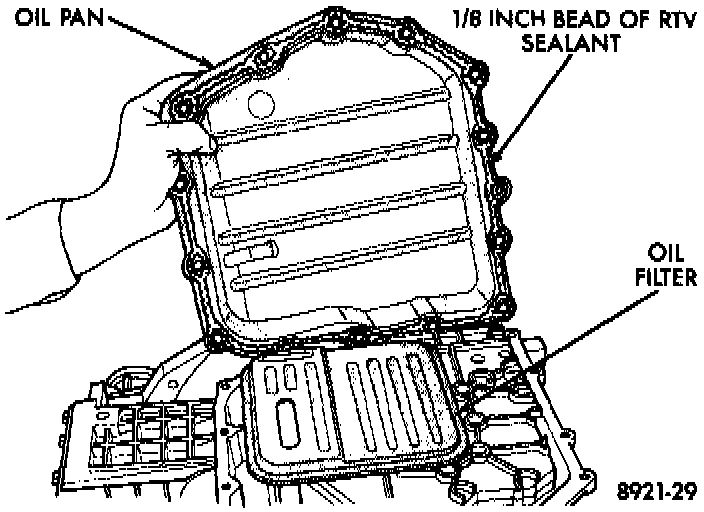

Oil Pan:

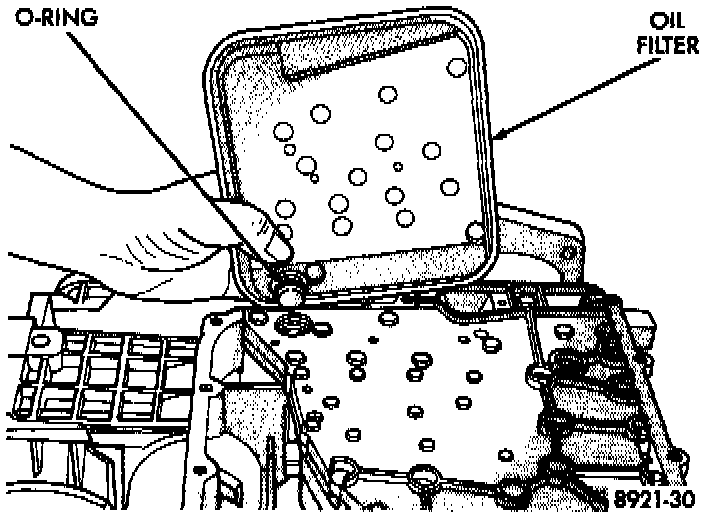

Oil Filter:

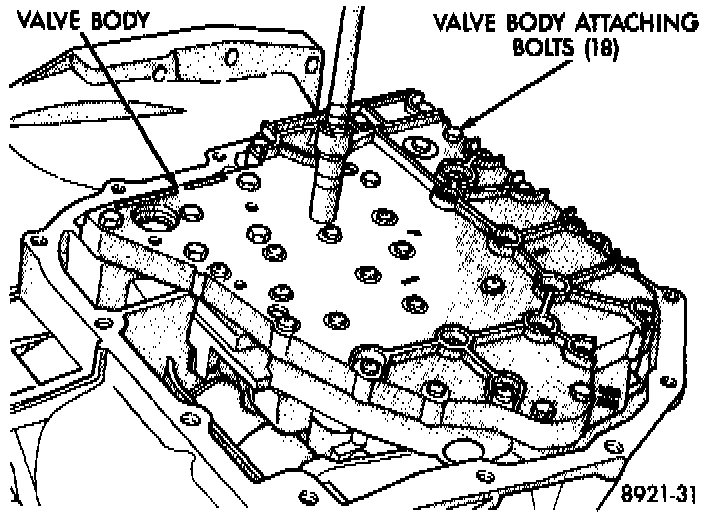

Valve Body Attaching Bolts:

NOTE: To ease installation of the valve body, turn the manual valve lever fully clockwise.

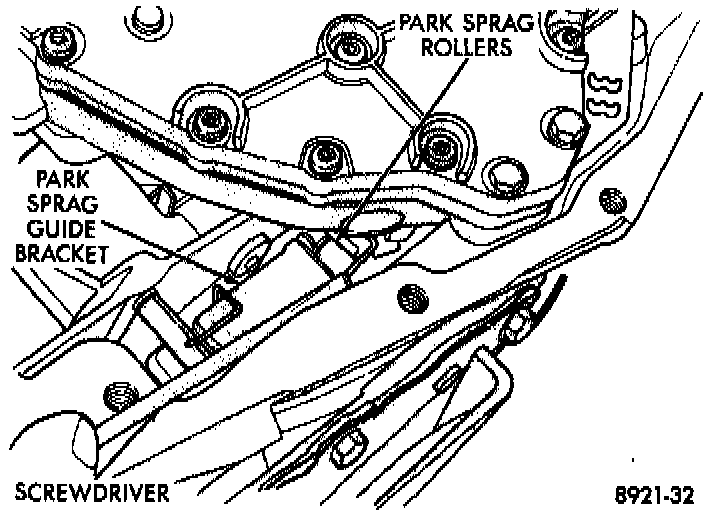

Push Park Rollers From Guide Bracket:

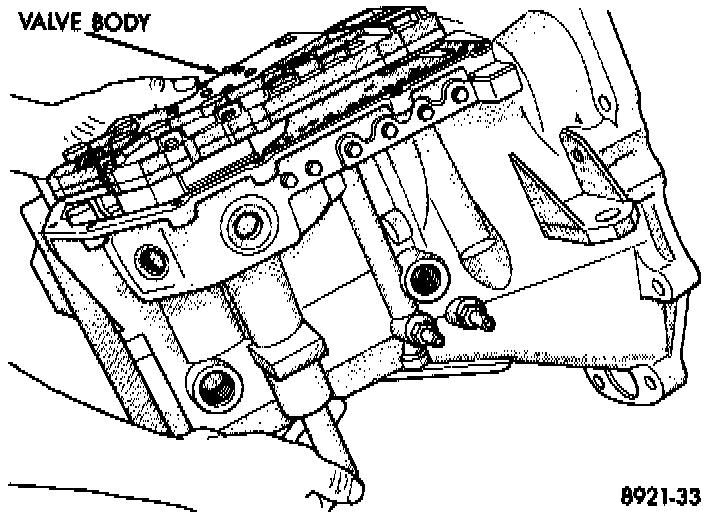

Remove Valve Body:

Valve Body Removed:

Installation

To install valve body, reverse removal procedure.

CAUTION: The valve body manual shaft pilot may distort and bind the manual valve if the valve body is mishandled or dropped.

NOTE: To ease installation of the valve body, turn the manual valve lever fully clockwise.

Guide park rod rollers into guide bracket, while shifting manual lever assembly out of the installation position.
