Removal and Installation

REMOVAL

1. Raise and support vehicle.
2. Drain transmission fluid.

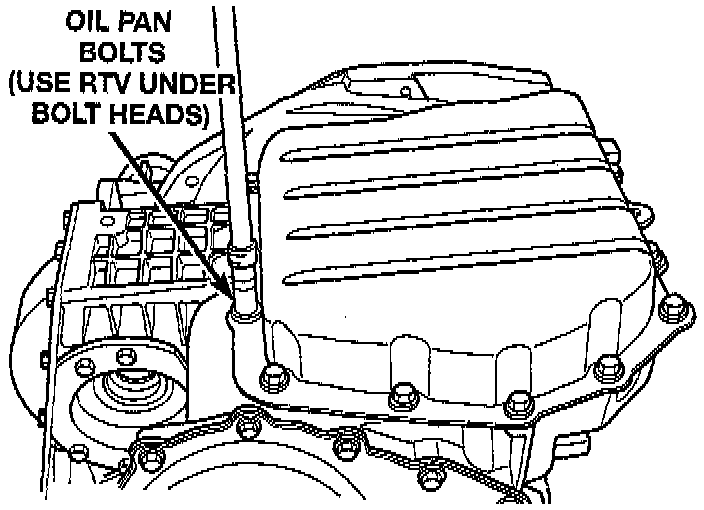

Remove Oil Pan Bolts:

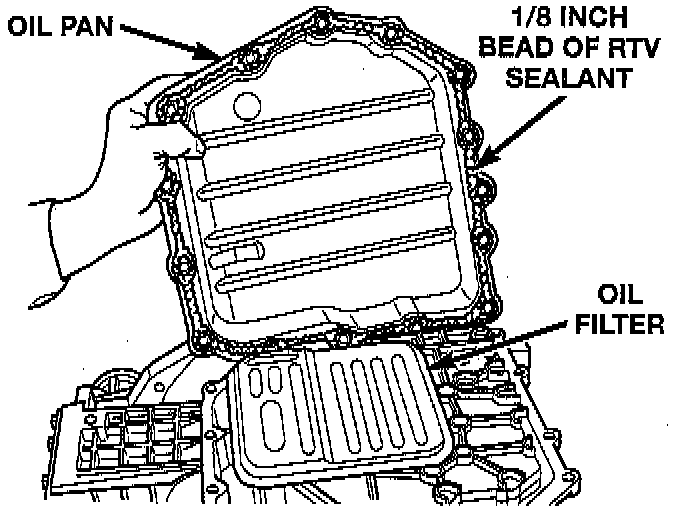

Remove Oil Pan:

3. Remove oil pan attaching bolts and oil pan.

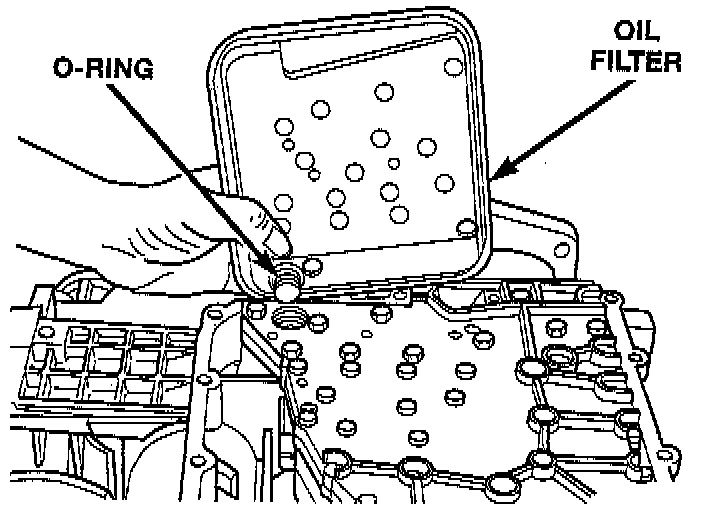

Remove Oil Filter:

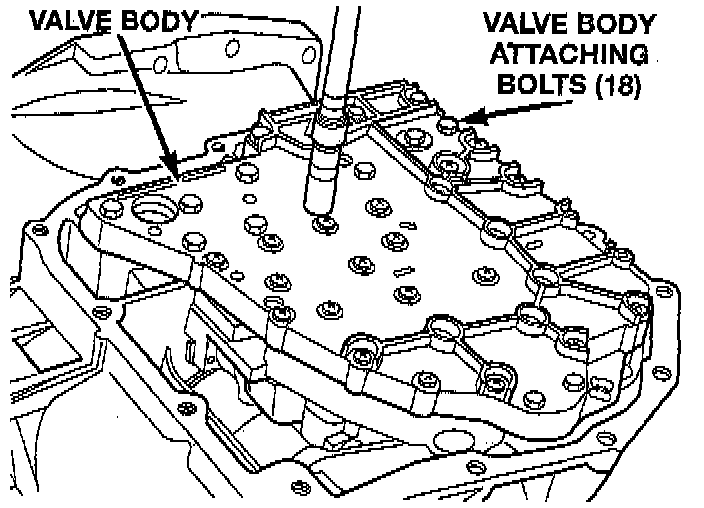

Remove Valve Body Attaching Bolts:

4. Remove oil filter, then the valve body attaching bolts.

NOTE: To ease removal of the valve body, turn the manual valve lever fully clockwise.

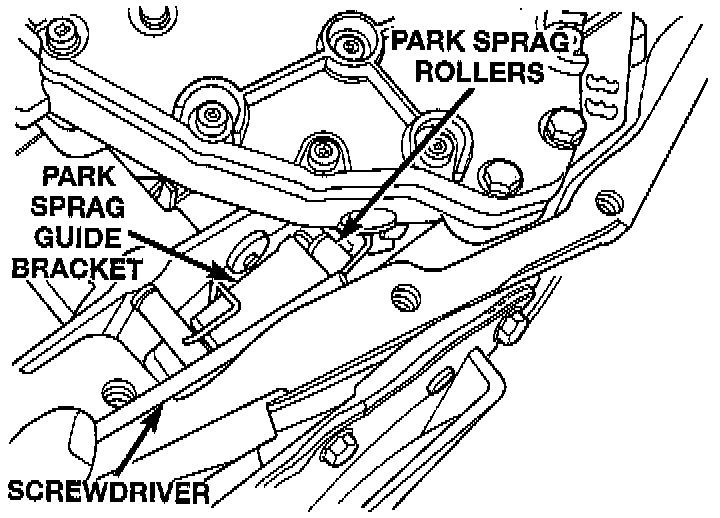

Push Park Rod Rollers From Guide Bracket:

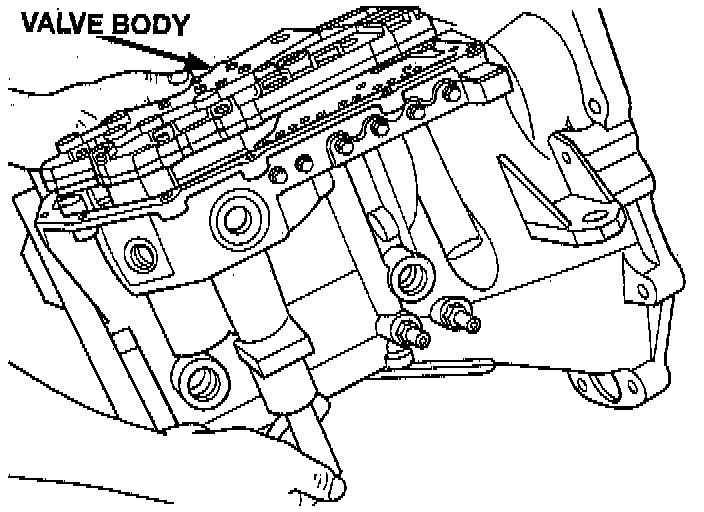

Remove Valve Body:

Valve Body Removed:

5. Push park rod rollers from guide bracket, then remove valve body.

INSTALLATION
1. To install valve body, reverse removal procedure.

CAUTION: The valve body manual shaft pilot may distort and bind the manual valve if the valve body is mishandled or dropped.

NOTE: To ease installation of the valve body, turn the manual valve lever fully clockwise.

NOTE: Guide park rod rollers into guide bracket, while shifting manual lever assembly out of the installation position.

2. Tighten valve body attaching bolts to specification.
3. Tighten oil pan attaching bolts to specification.
