Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Transmission Pressure Test Port >> Locations

Transmission Pressure Test Port: Locations

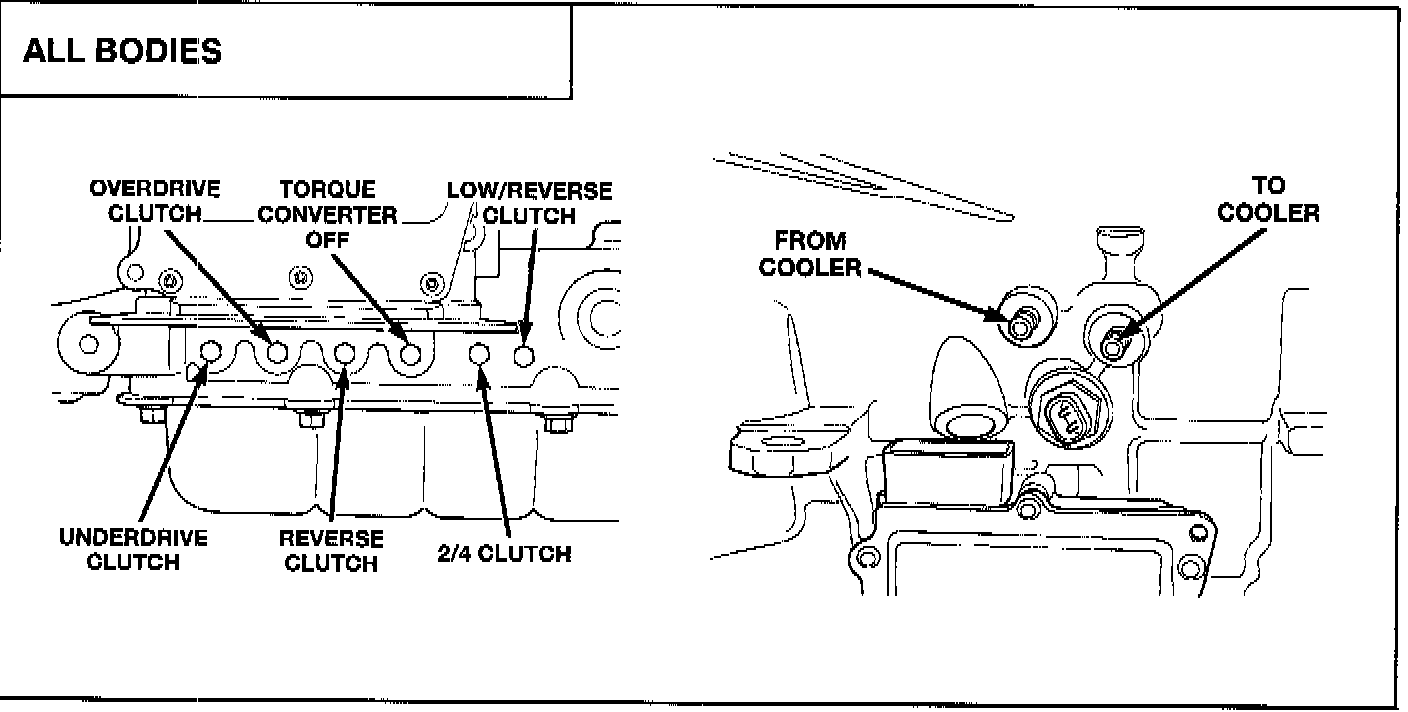

41 TE/AE Transaxle Pressure And Cooler Ports:
