Symptom Related Diagnostic Procedures

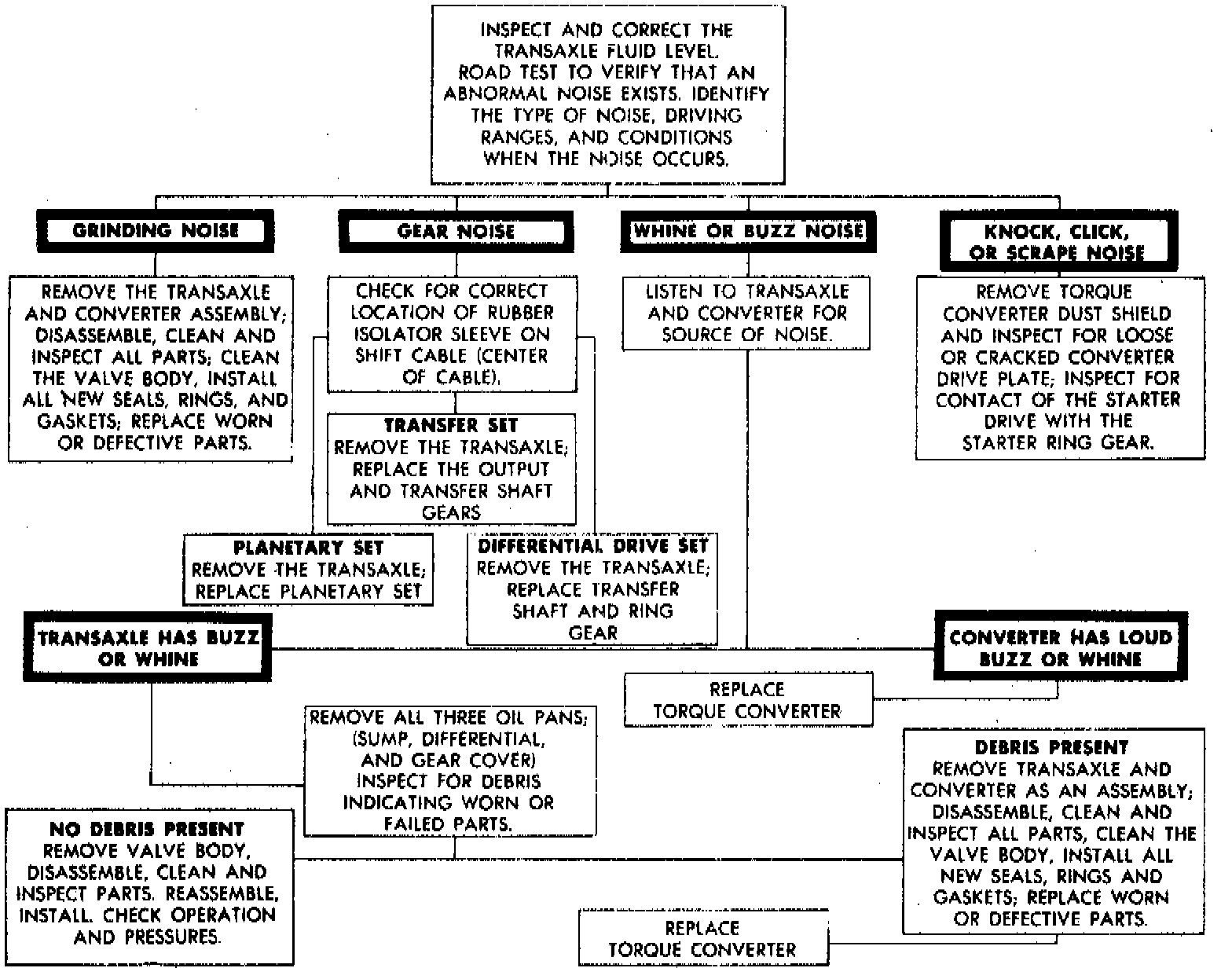

Fig. 2 Abnormal Noise Diagnosis:

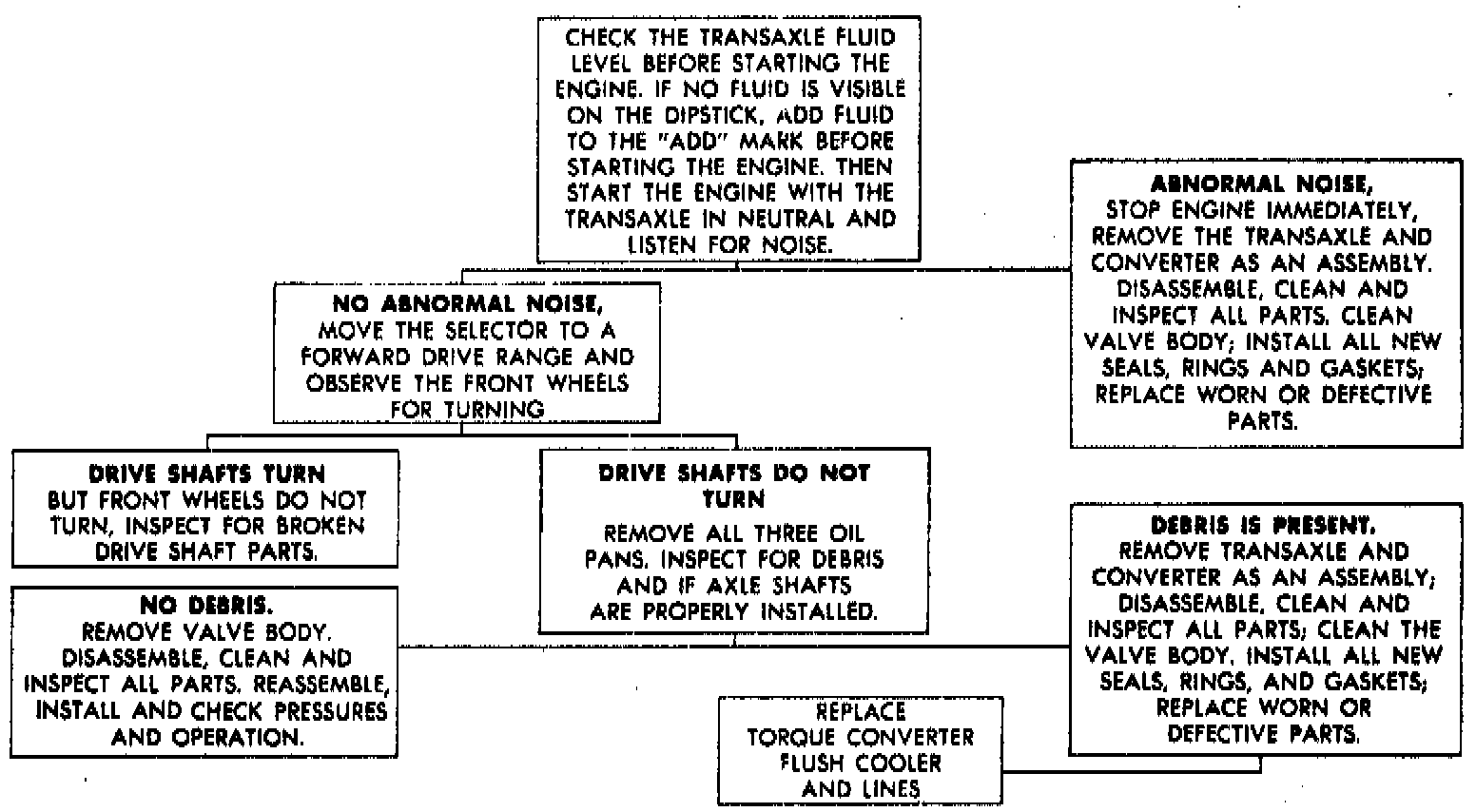

Fig. 3 Vehicle Will Not Move Diagnosis:

Fig. 4 Fluid Leak Diagnosis:

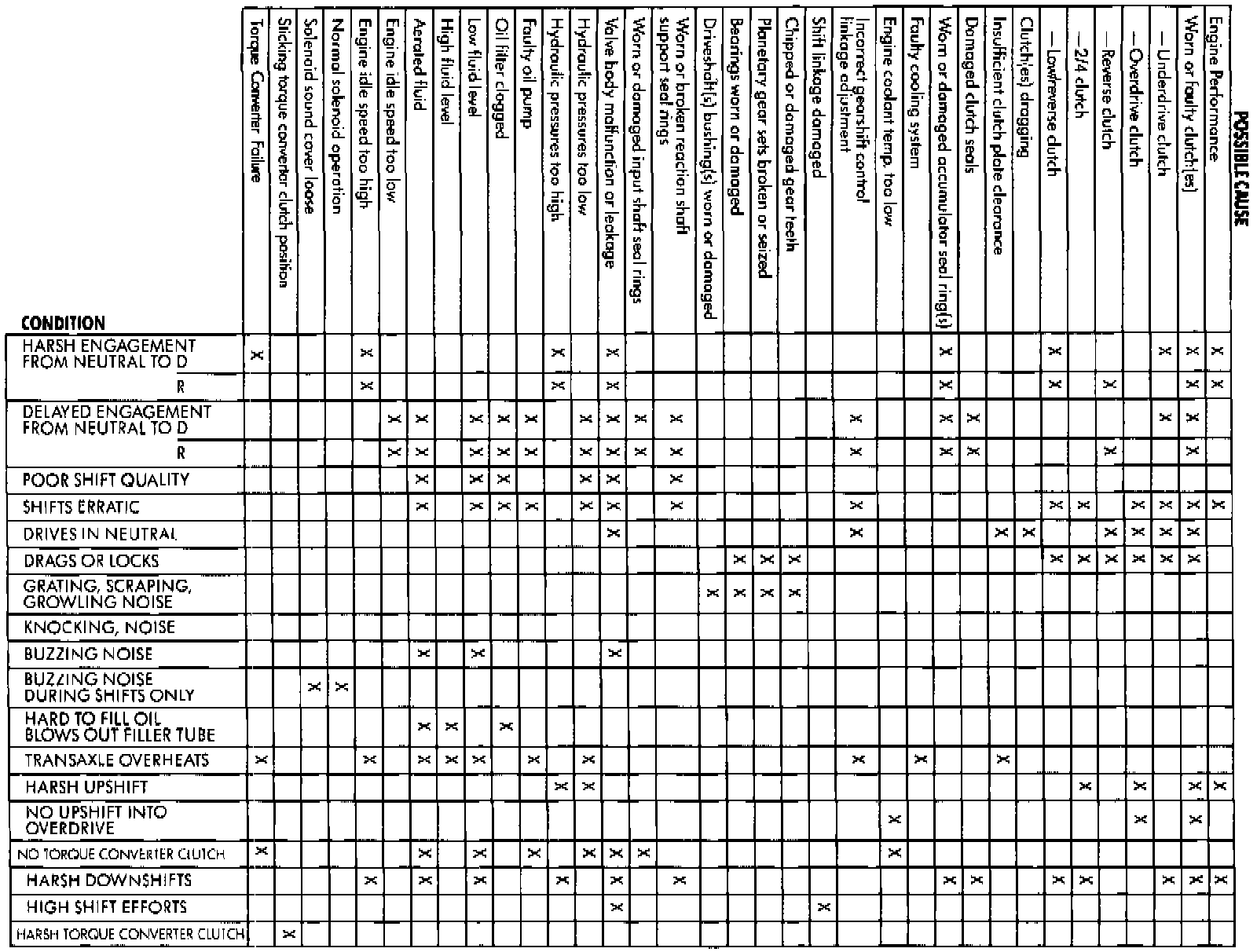

Before attempting any repair on the 41TE electronic automatic transaxle, general engine performance, transmission fluid level and shift linkage must first be checked and adjusted if necessary. For specific symptom diagnosis, refer to Figs.2 through 5 .
