Rear

1. Raise and support vehicle, then remove both rear wheel and tire assemblies.
2. Using a suitable wrench to keep stabilizer links from rotating, remove nuts attaching stabilizer link isolator bushings to stabilizer links.

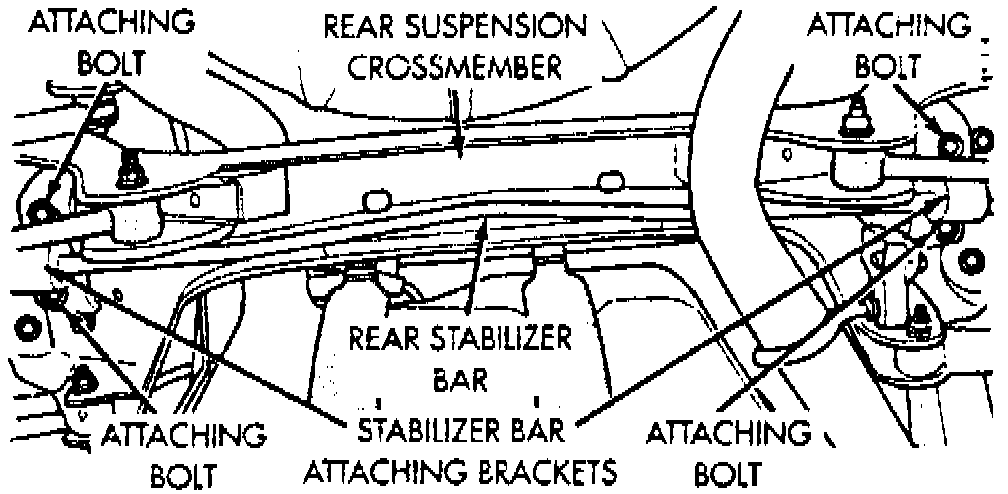

Fig. 7 Rear Stabilizer Bar Components:

3. Remove four bolts attaching stabilizer bar bushing clamps to rear suspension crossmember.
4. Remove rear stabilizer bar to crossmember bushing clamps and bushings from stabilizer bar.
5. Remove stabilizer bar between exhaust pipe and rear suspension crossmember.
6. Reverse procedure to install.
