Suspension: Description and Operation

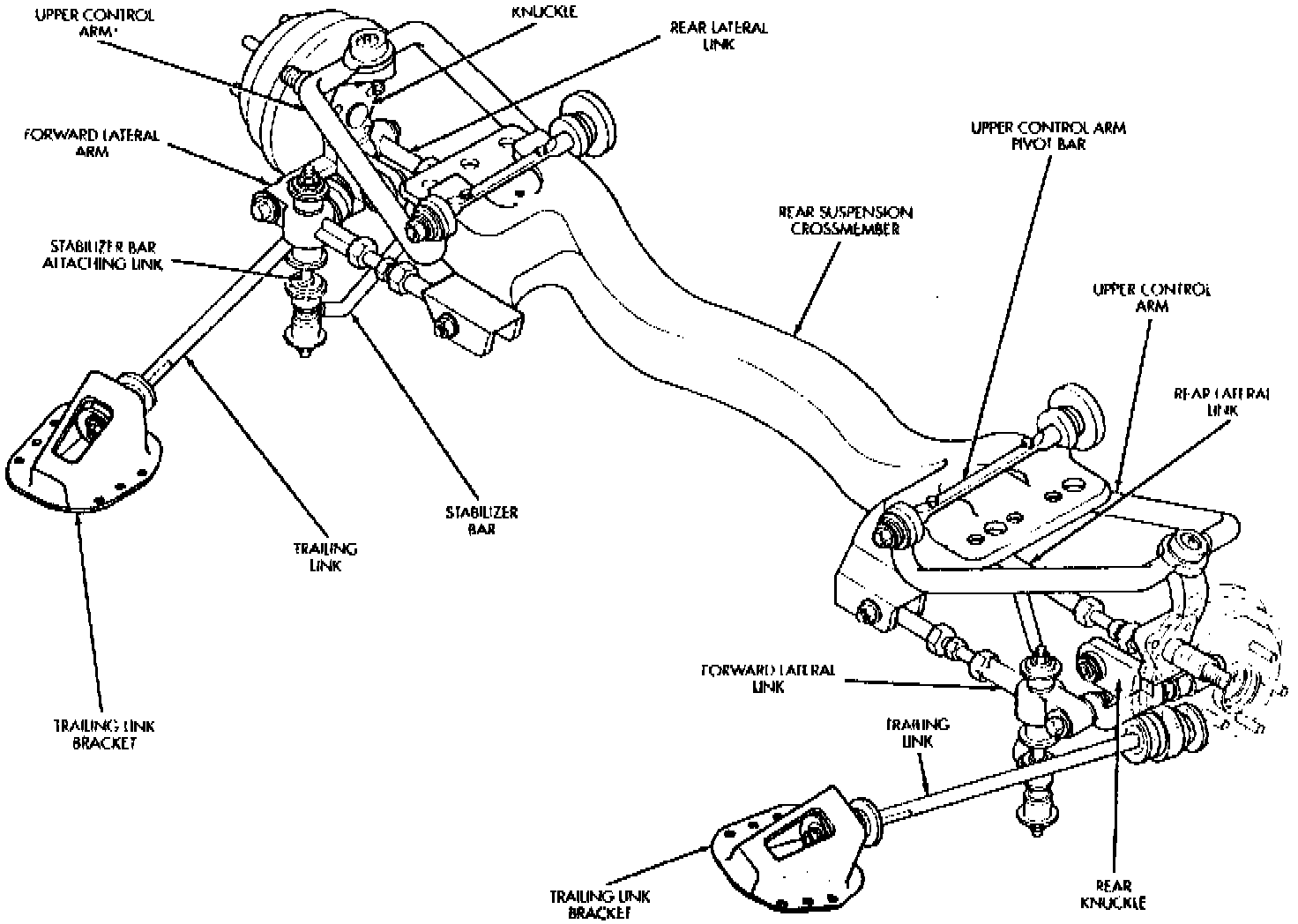

Fig. 1 Rear Suspension Components:

The rear suspension is a fully independent short and long arm style suspension. An upper control arm bolts to the top of each rear cast knuckle to the rear suspension crossmember. The movement of the rear knuckle is controlled laterally by two lower lateral links going from the front and rear of the knuckle to the rear crossmember and upper control arm. Fore and aft movement of the knuckle is controlled by a trailing arm.
