Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Connector Views

Connector Views

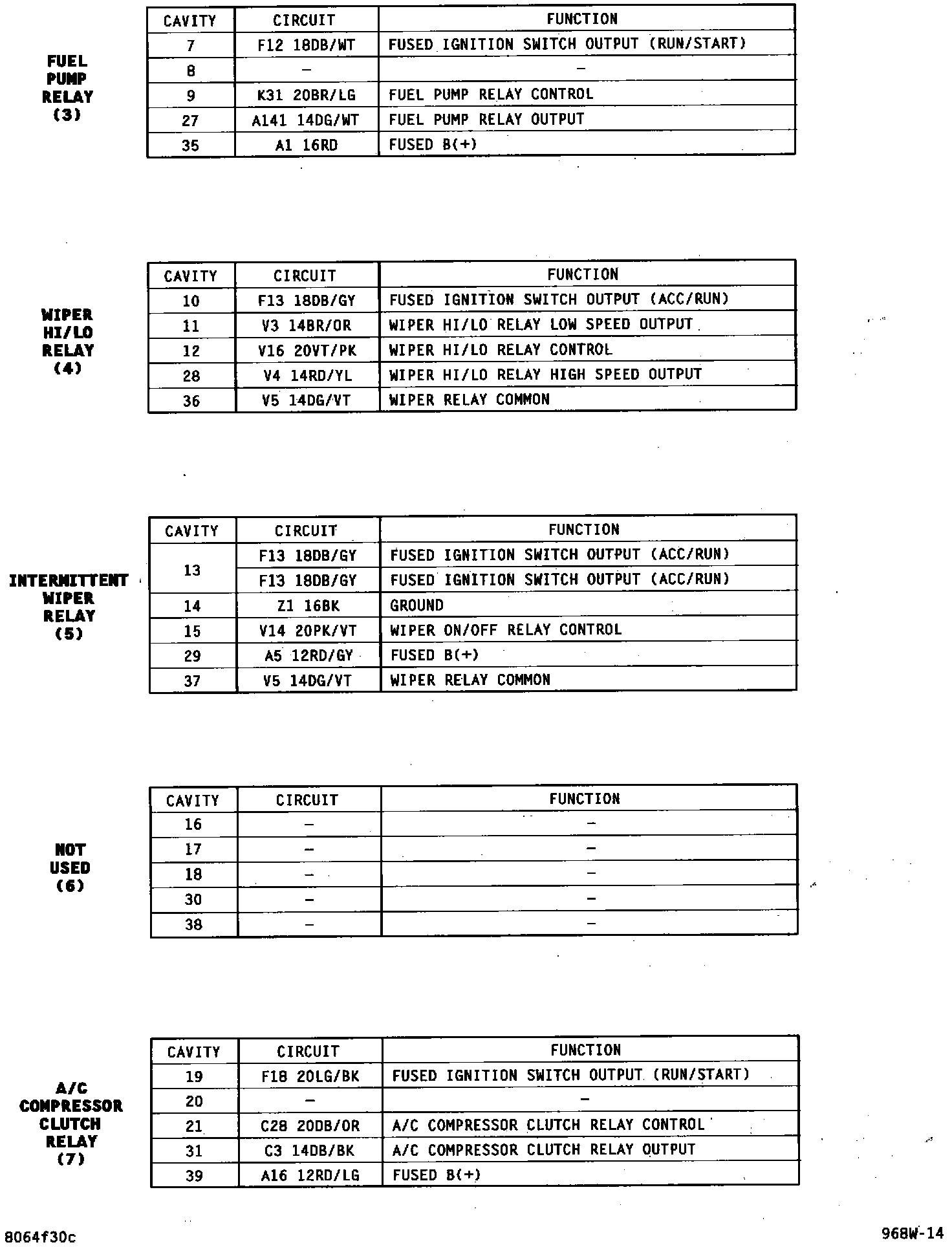

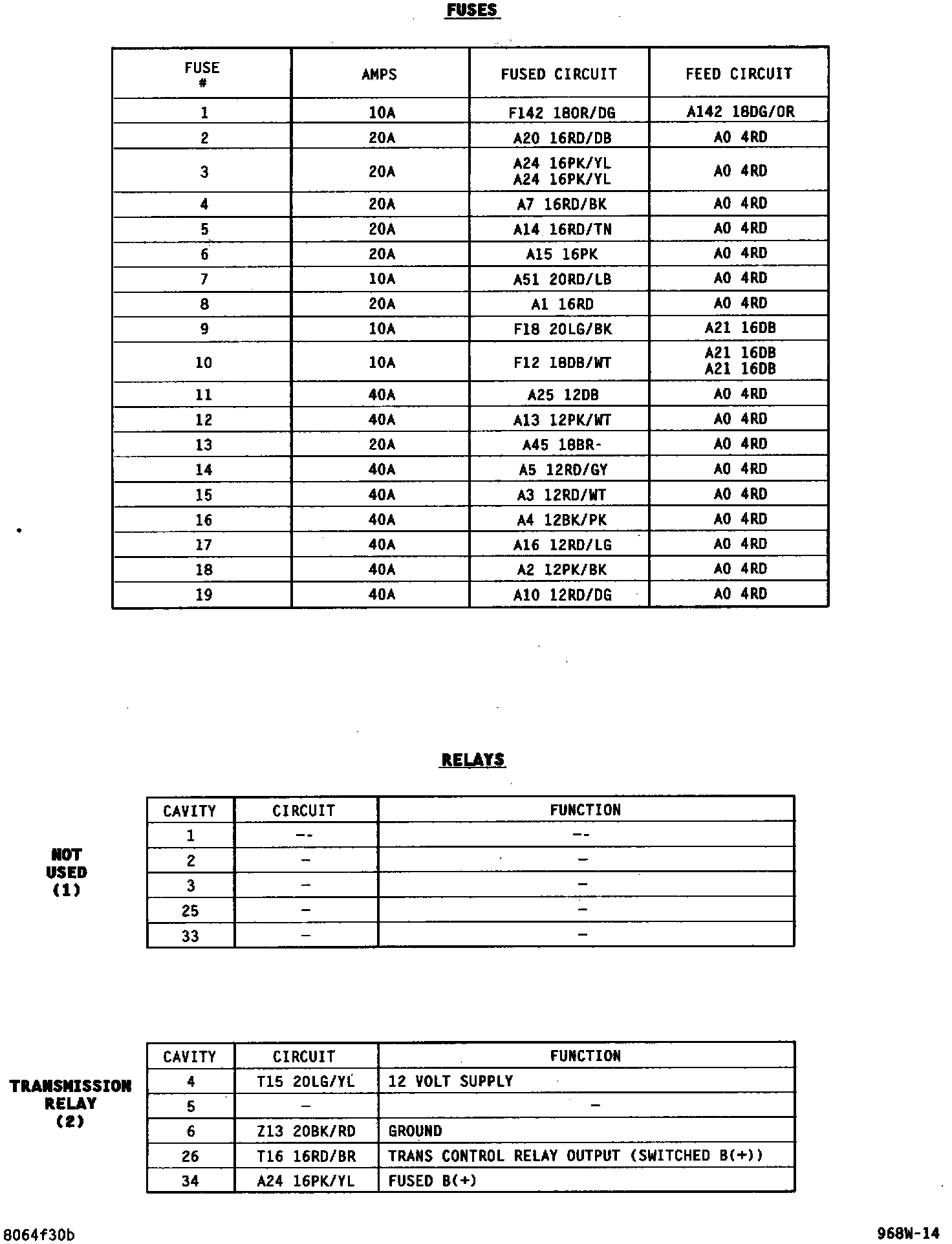

Power Distribution (Part 1 Of 4):




Power Distribution (Part 2 Of 4):




Power Distribution (Part 3 Of 4):




Power Distribution (Part 4 Of 4):






NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
