Undeployed Module

REMOVAL
When removing a module for any reason other than DEPLOYMENT.

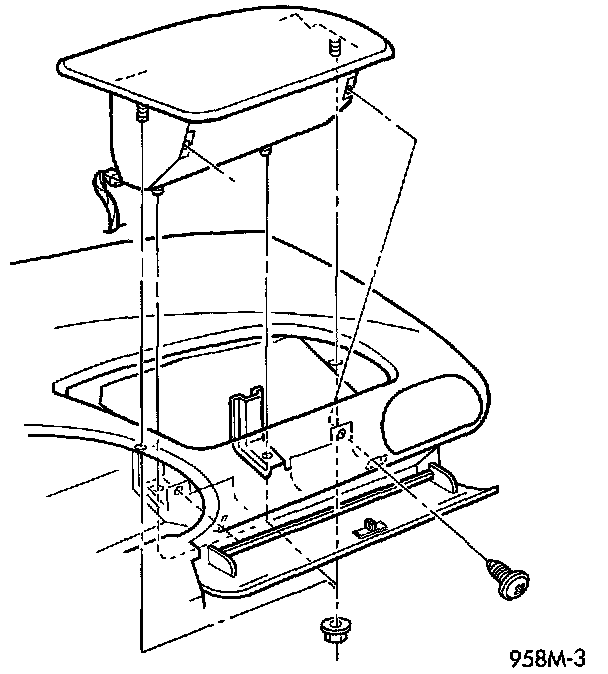

1. Disconnect and isolate the battery negative remote cable.




2. Open and lower glove box fully to gain access to Passenger Airbag Module (PAB) attaching screws inside of the glove box. Glove box removal not required.
3. Disconnect wire connector from the Passenger Airbag Module.
4. Remove the four nuts and two screws attaching airbag assembly to the instrument panel collar.
5. Lift Passenger Airbag Module up and out of panel cavity

INSTALLATION
For installation, reverse the above procedures. Install new Passenger Airbag Module and tighten nuts to 11 N.m (100 in. lbs.) and screws to 2 N.m (20 in. Lbs.) torque. Do not connect battery negative remote cable. Refer to Testing and Inspection/Procedures for Air-bag System Test procedures.
