Quick Connect Fittings

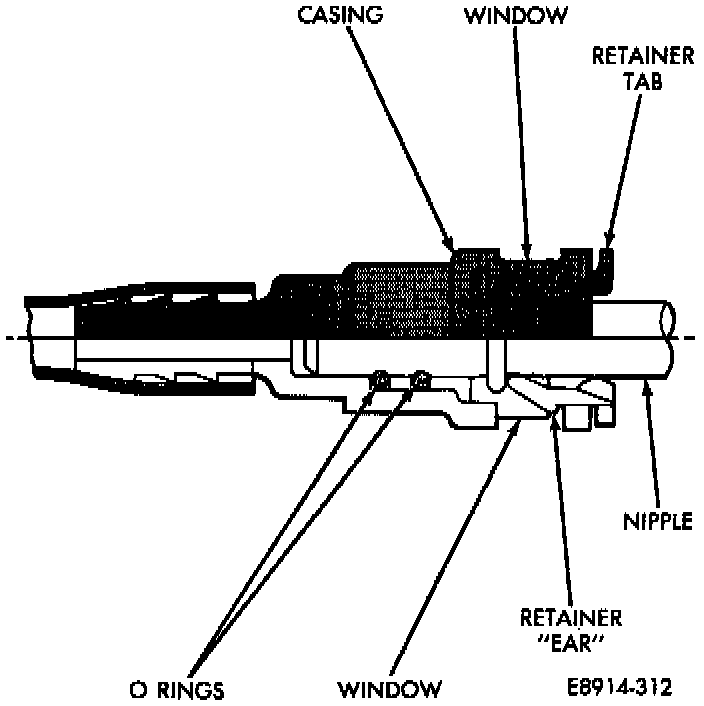

Fig. 5 Plastic Quick-Connect Fittings:

FUEL LINES AND QUICK CONNECT FITTINGS
Fuel Lines
Fuel line clamps are not used on any fuel system component. If there is a fitting or line that needs repair it must be replaced. DO NOT use rubber hose and clamps to repair a fuel line.

Inspect all lines and quick connect fittings for leaks. Replace lines that rub against other vehicle components or show sign of wear. Ensure all lines are secured in their proper holders.

Quick - Connect Fittings
Fuel tubes connect fuel system components with plastic quick-connect fuel fittings. The fitting contains non-serviceable 0-ring seals Fig. 5.

CAUTION: Quick-connect fittings are not serviced separately. Do not attempt to repair damaged quick-connect fittings or fuel tubes. Replace the complete fuel tube/quick-connect fitting assembly.

The quick-connect fitting consists of the 0-rings, retainer and casing Fig. 5. When the fuel tube enters the fitting, the retainer locks the shoulder of the nipple in place and the 0-rings seal the tube.

REMOVAL
When disconnecting a quick-connect fitting, the retainer will remain on the fuel tube nipple.

WARNING: Release fuel system pressure before disconnecting quick-connect fittings. Refer to the fuel pressure release procedure.

1. Disconnect negative cable from auxiliary jumper terminal.
2. Perform Fuel Pressure Release Procedure. Refer to Fuel Pressure Release Procedure.
3. Squeeze retainer tabs together and pull fuel tube/quick-connect fitting assembly off of fuel tube nipple. The retainer will remain on fuel tube.

Fig. 6 Plastic Quick-Connect Fitting/Fuel Tube Connection:

INSTALLATION
1. Using a clean lint free cloth, clean fuel tube nipple and retainer.
2. Prior to connecting fitting to the fuel tube, coat fuel tube nipple with clean 30 weight engine oil.

CAUTION: Never install a quick-connect fitting without retainer being either on the fuel tube or already in the quick-connect fitting. In either case, ensure retainer locks securely into quick-connect fitting by firmly pulling on fuel tube and fitting to ensure it is secured.

3. Push quick-connect fitting over fuel tube until retainer seats and a click is heard.

NOTE: The quick-connect fitting has windows in the sides of the casing. When the fitting completely attaches to the fuel tube, the retainer locking ears and fuel tube shoulder are visible in the windows.
- If they are not visible, the retainer was not properly installed Fig. 6.
- Do not rely upon the audible click to confirm a secure connection.

4. Ensure locking ears on retainer and the shoulder (stop bead) on the fuel tube are completely visible in the quick-connect fitting windows.
- Do not rely upon the audible click to confirm a secure connection.
- Always pull on the line and fitting to ensure that retainer is seated.
5. Verify connection by pulling on the lines.
- If fitting locks in place, the connection is secure.

CAUTION: When using the ASD Fuel System Test, the Auto Shutdown (ASD) relay remains energized for either 7 minutes, until the test is stopped, or until the ignition switch is turned to the Off position.

6. Use DRB Scan Tool-ASD Fuel System Test to pressurize the fuel system. Check for leaks.
