Fuel Filler Hose: Service and Repair

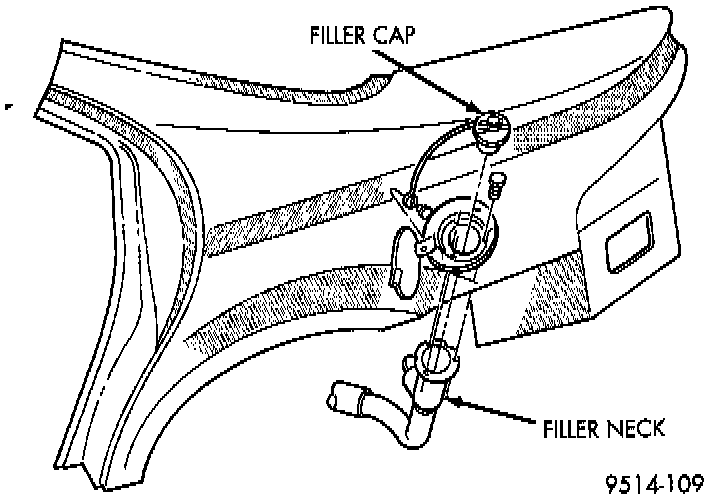

Fig. 4 Fuel Filler Neck Removal/Installation:

1. Loosen fuel filler tube cap.
2. Remove fuel filler neck screws (Fig 4).
3. Disconnect fuel filler tube from filler neck.
4. Remove filler neck.
5. Reverse for installation.
