Resistance Test

Related Images:

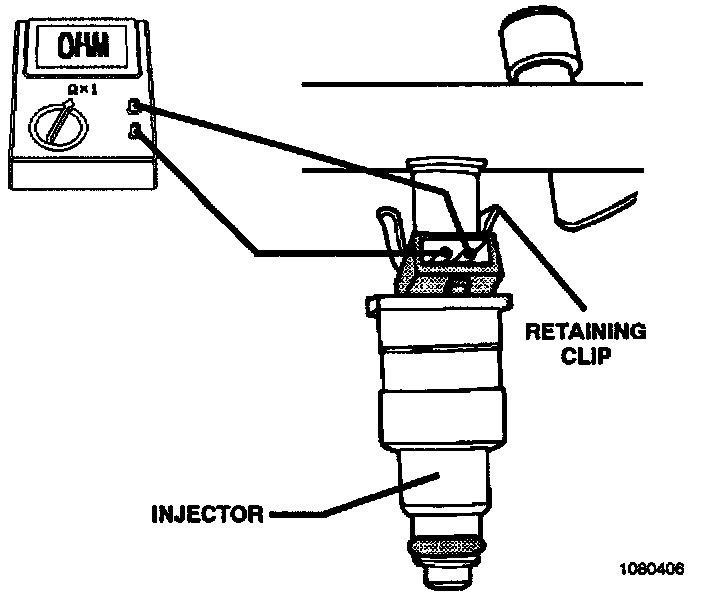

Check resistance between the injector terminals.
- Resistance should be between 10 and 16 ohms.
