Fuel Injectors Description

Fuel Injector:

OPERATION

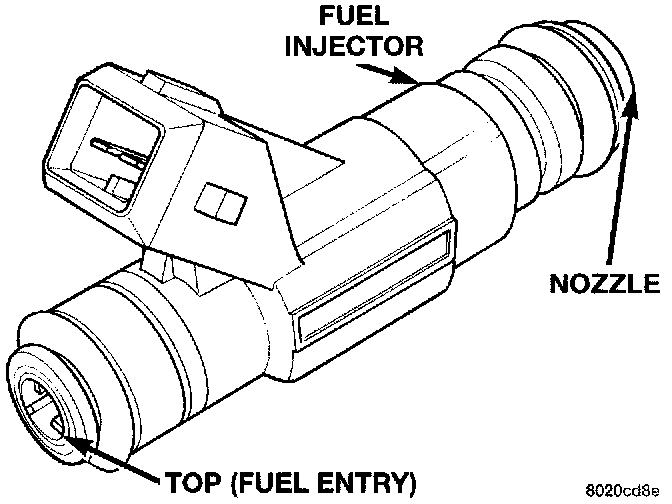

All these engines use electrically operated top feed fuel injectors Fig. 30. The Automatic Shutdown (ASD) relay supplies battery voltage to the fuel injectors. The PCM controls the ground path for each injector in sequence. By switching the ground paths on and off, the PCM fine-tunes injector pulse width. Injector pulse width refers to the amount of time an injector operates.

The PCM determines injector synchronization from the camshaft position sensor and crankshaft position sensor inputs. The PCM grounds the ASD and fuel pump relays after receiving the camshaft position sensor and crankshaft position sensor inputs.

The PCM energizes the injectors in a sequential order during all engine operating conditions except start-up. For the first injector pulse width during start-up, all injectors are energized at the same time. Once the PCM determines crankshaft position, it begins energizing the injectors in sequence.

Injector Resistance
The injectors are 12 ohm electrical solenoids.

CIRCUIT OPERATION
Circuit A14 is connected to the BUS bar in the Power Distribution Center (PDC), and connects to battery voltage. The contact side of the Automatic Shut-Down (ASD) relay connects circuit A14 and A142. A 20 amp fuse, in cavity 5 of the PDC, protects circuits A14 and A142.

Circuit A14 also supplies voltage to the coil side of the ASD relay. The Powertrain Control Module (PCM) controls the ground path circuit for the coil side of the ASD relay on circuit K51. Circuit K51 connects to cavity 67 of the PCM.

Circuit A142 supplies voltage for the fuel injectors. The PCM controls the ground circuit of each injector, as follows:
- Circuit K11 is the ground circuit for Injector #1. Circuit K11 connects to cavity 13 of the PCM.
- Circuit K12 is the ground circuit for Injector #2. Circuit K12 connects to cavity 17 of the PCM.
- Circuit K13 is the ground circuit for Injector #3. Circuit K13 connects to cavity 7 of the PCM.
- Circuit K14 is the ground circuit for Injector #4. Circuit K14 connects to cavity 16 of the PCM.
