Leak Detection Pump: Service and Repair

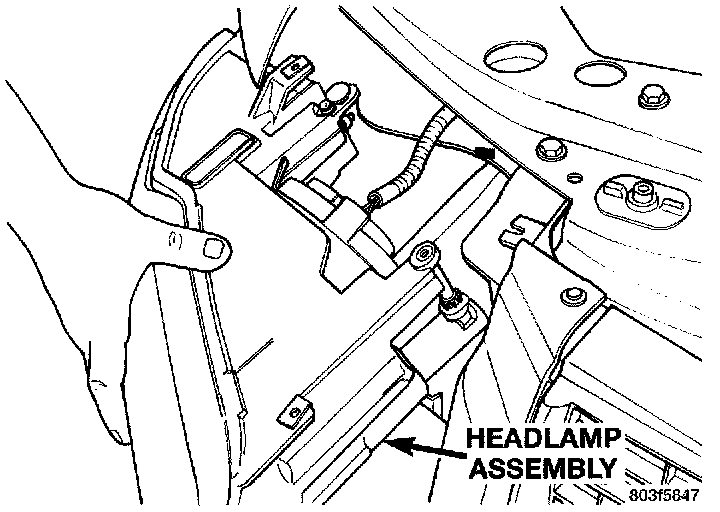

Fig 11 Headlamp Attachment:

NOTE: The Leak Detection Pump is located under the right front headlamp behind the front fascia.


REMOVAL
1. Remove screws from headlamp.
2. Pull headlamp away from vehicle.

Fig 12 Headlamp Electrical Connector Removal/Installation:

3. Disconnect electrical connector from headlamp.
4. Remove headlamp from vehicle.

Fig 13 Vacuum Line On LDP:

5. Disconnect vacuum line from Leak Detection Pump (LDP).
6. Remove hoses from evaporative canister.

Fig 14 Evaporative Canister Attachment Nuts:

7. Remove 3 nuts retaining evaporative canister to pump bracket.
8. Let evaporative canister set on lower fascia.

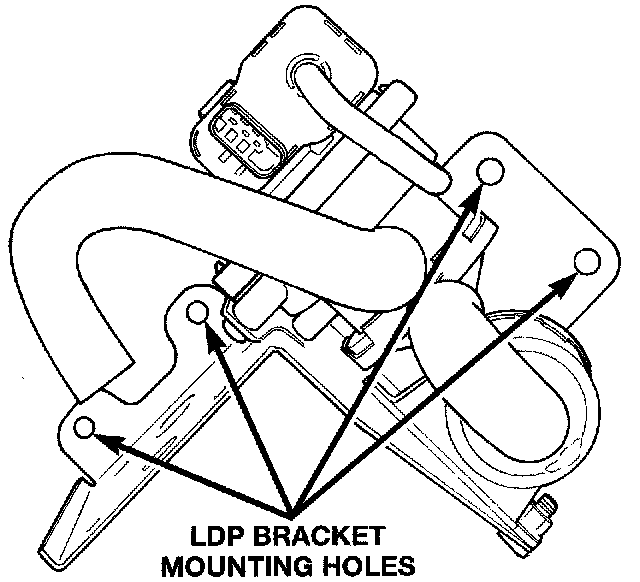

Fig 15 LDP Bracket Mounting Holes:

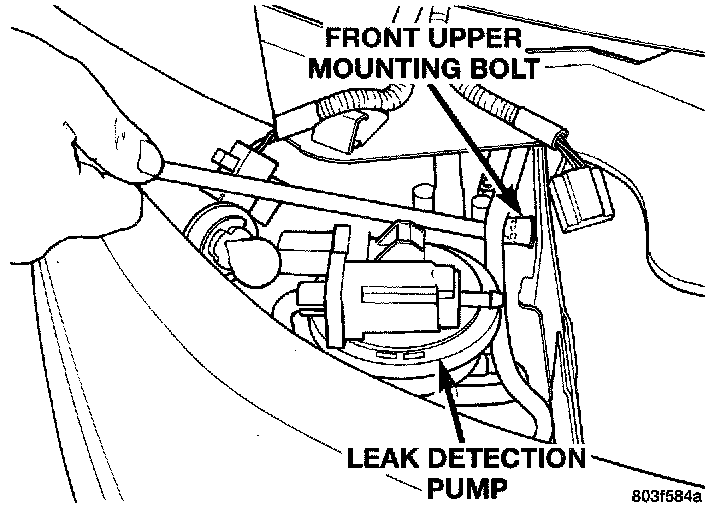

Fig 16 Front Upper Mounting Bolt:

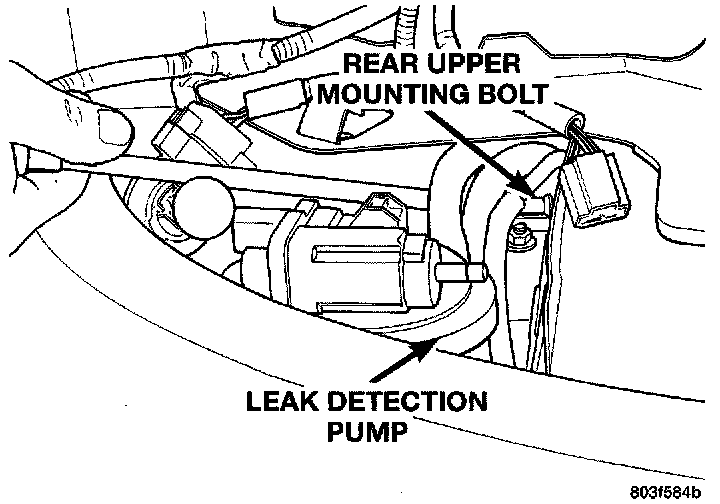

Fig 17 Rear Upper Mounting Bolt:

9. Remove 4 bolts from LDP bracket.

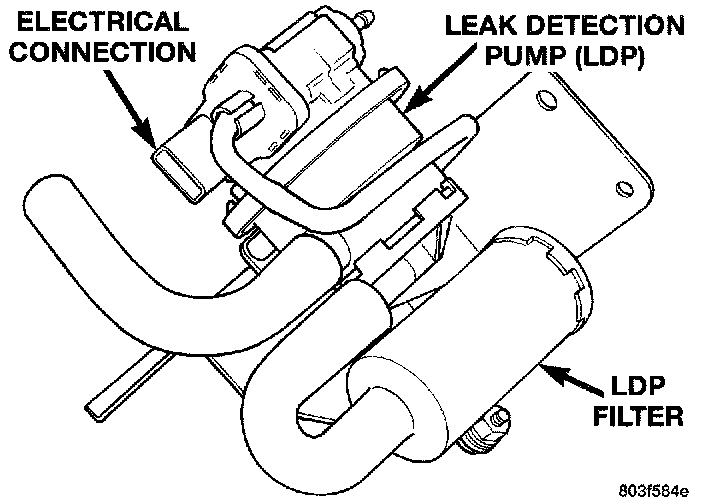

Fig 18 LDP Pump And Filter:

10. Remove LDP and bracket from vehicle.
11. Remove evaporative canister.


INSTALLATION
1. Set evaporative canister on lower fascia.
2. Install LDP and bracket and tighten the 4 bolts.
3. Pull evaporative canister up into bracket and install the 3 nuts and tighten.
4. Install hoses onto evaporative canister and LDP pump.
5. Connect electrical connector onto headlamp.
6. Install headlamp and tighten 2 screws.
7. Use the DRB to test the LDP and system.
