Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Trouble Code (NTC) Tests >> NTC-2A Checking Secondary Ignition and Timing

NTC-2A Checking Secondary Ignition and Timing

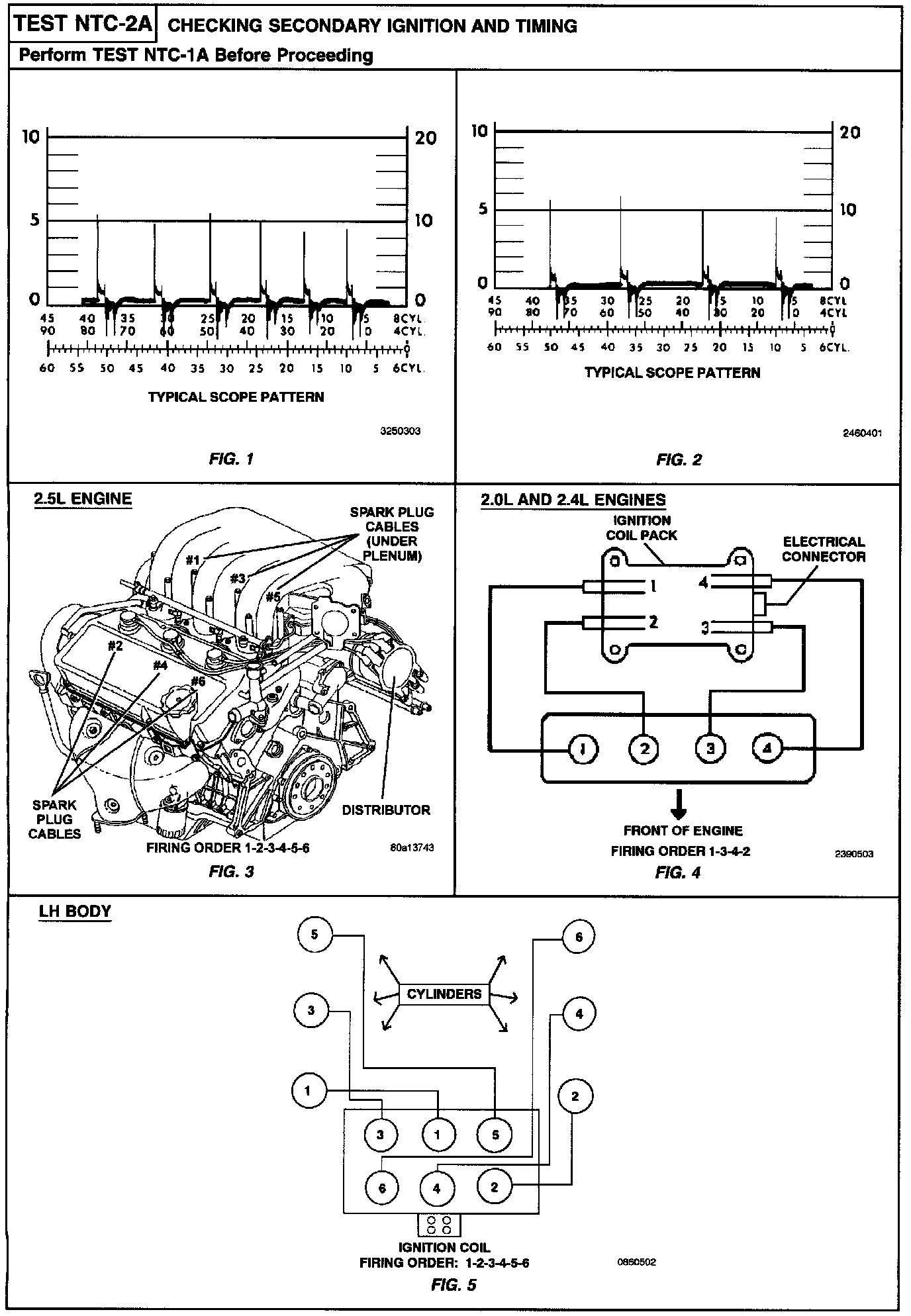

Related Images:

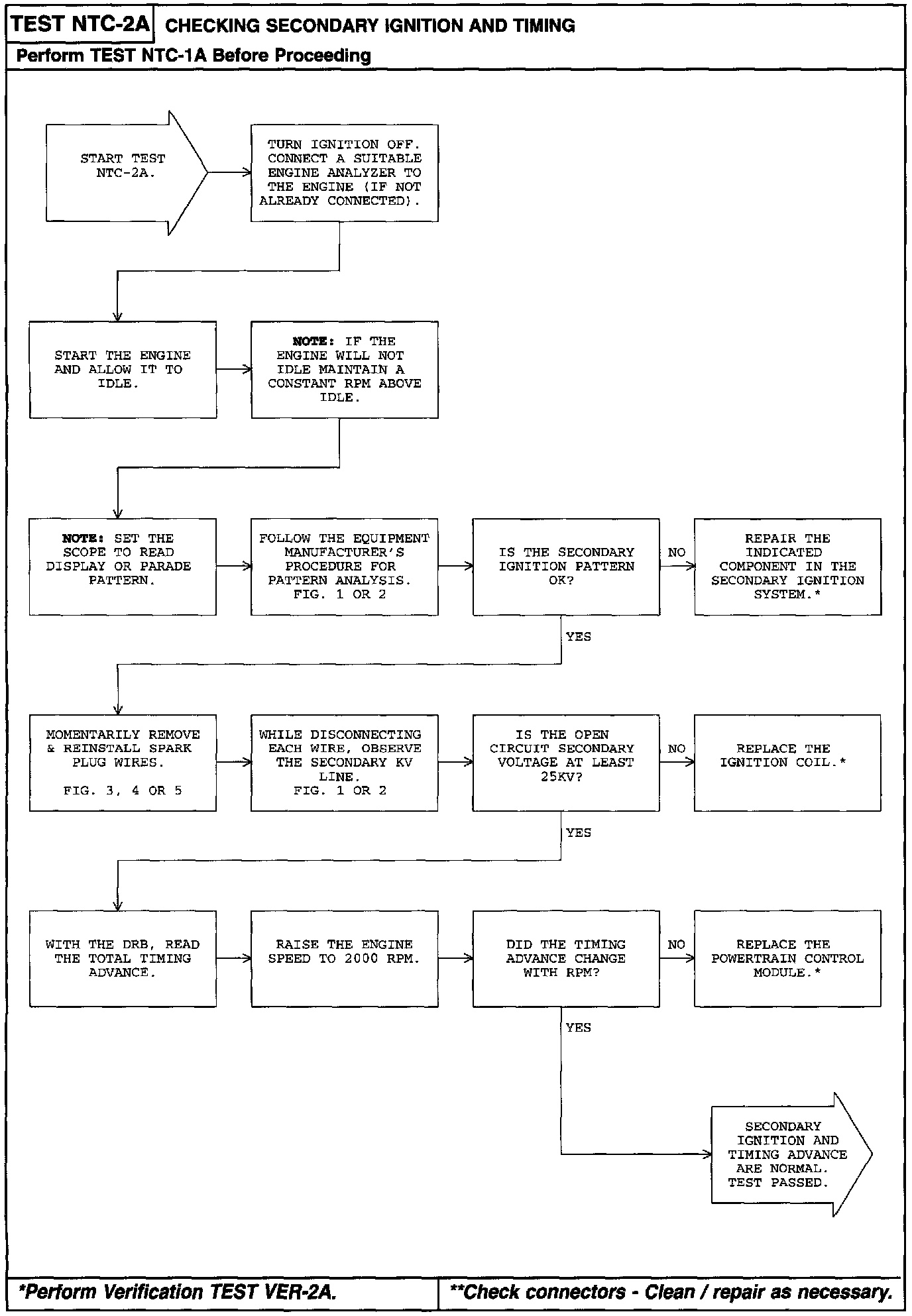

Flow Chart:
