Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Trouble Code (NTC) Tests >> NTC-17A Checking the Minimum Idle Air Flow

NTC-17A Checking the Minimum Idle Air Flow

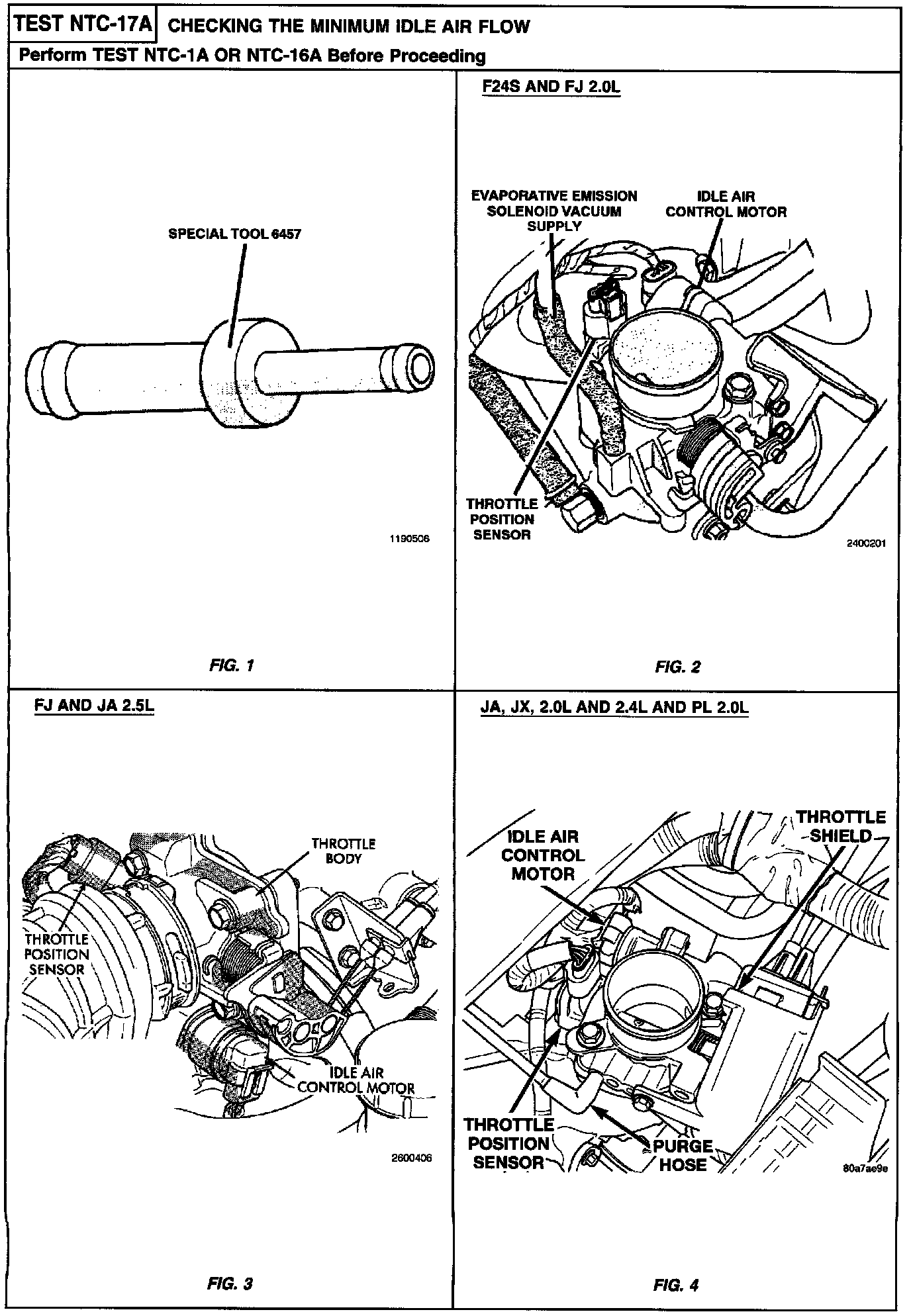

Related Images:

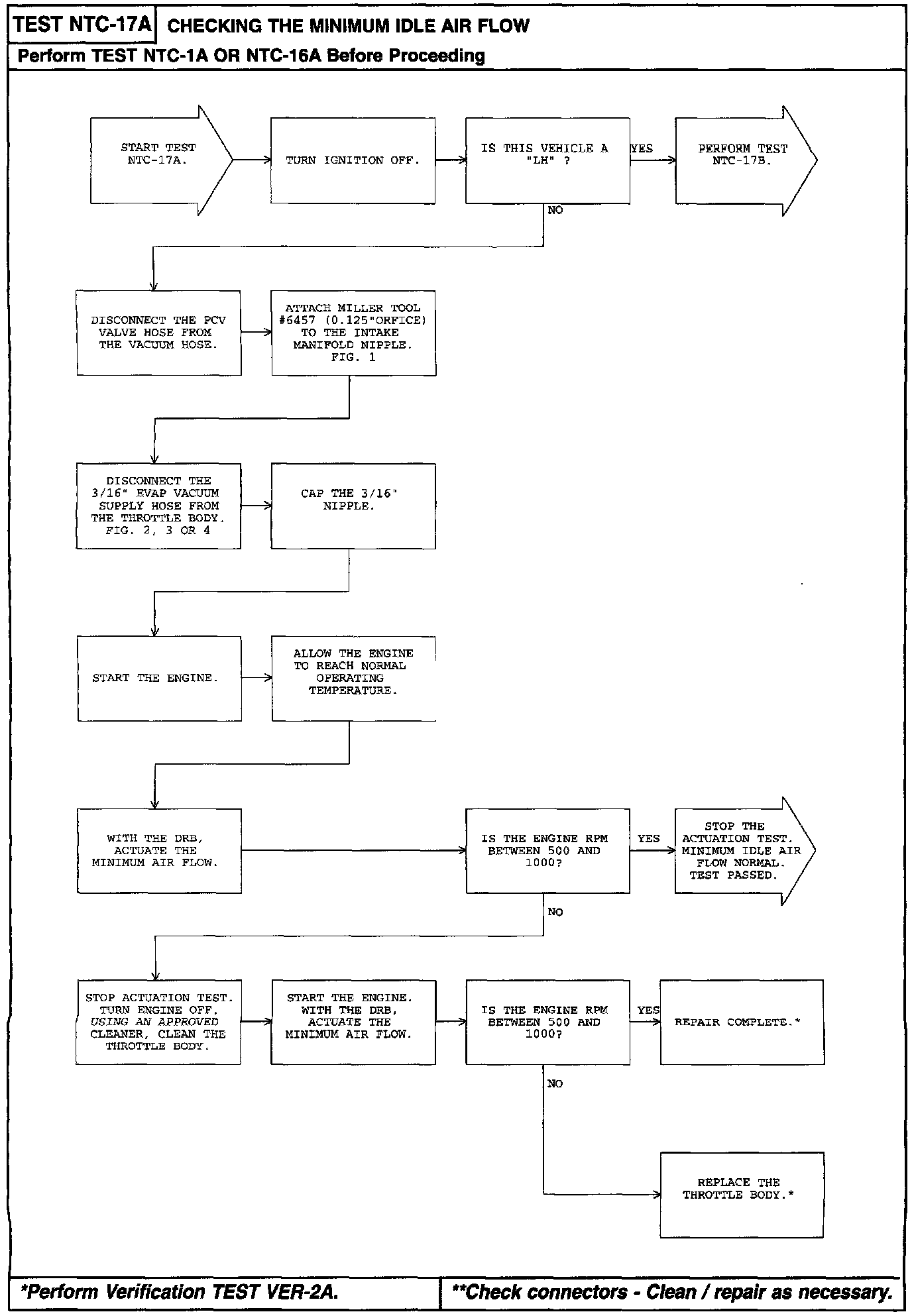

Flow Chart:
