NTC-13A Checking the EGR System
NTC-13A Checking the EGR System

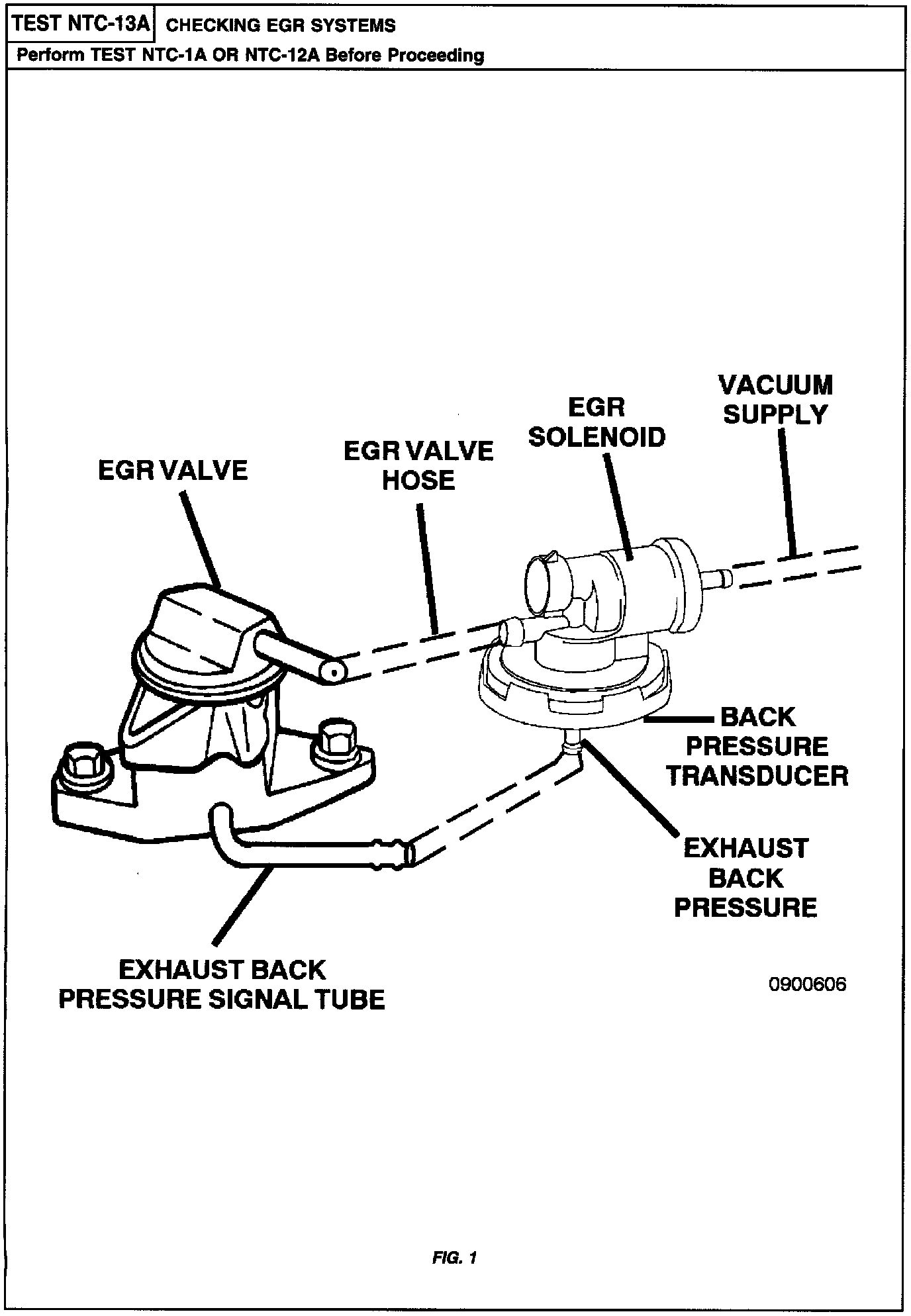

Related Images:

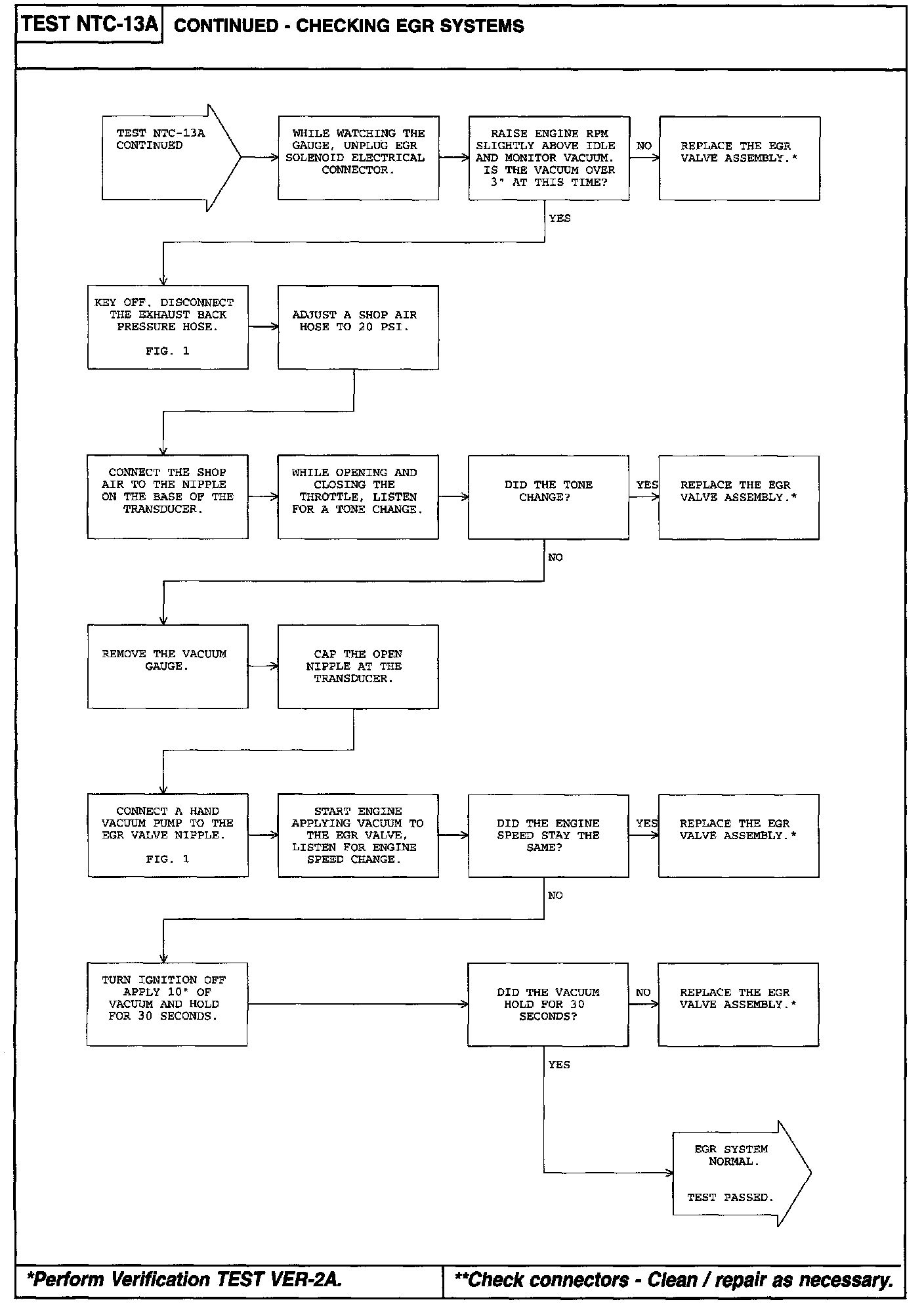

Flow Chart:
Related Images:
Flow Chart:
