NTC-11A Checking the PCM Power and Ground Circuits
NTC-11A Checking the PCM Power and Ground Circuits

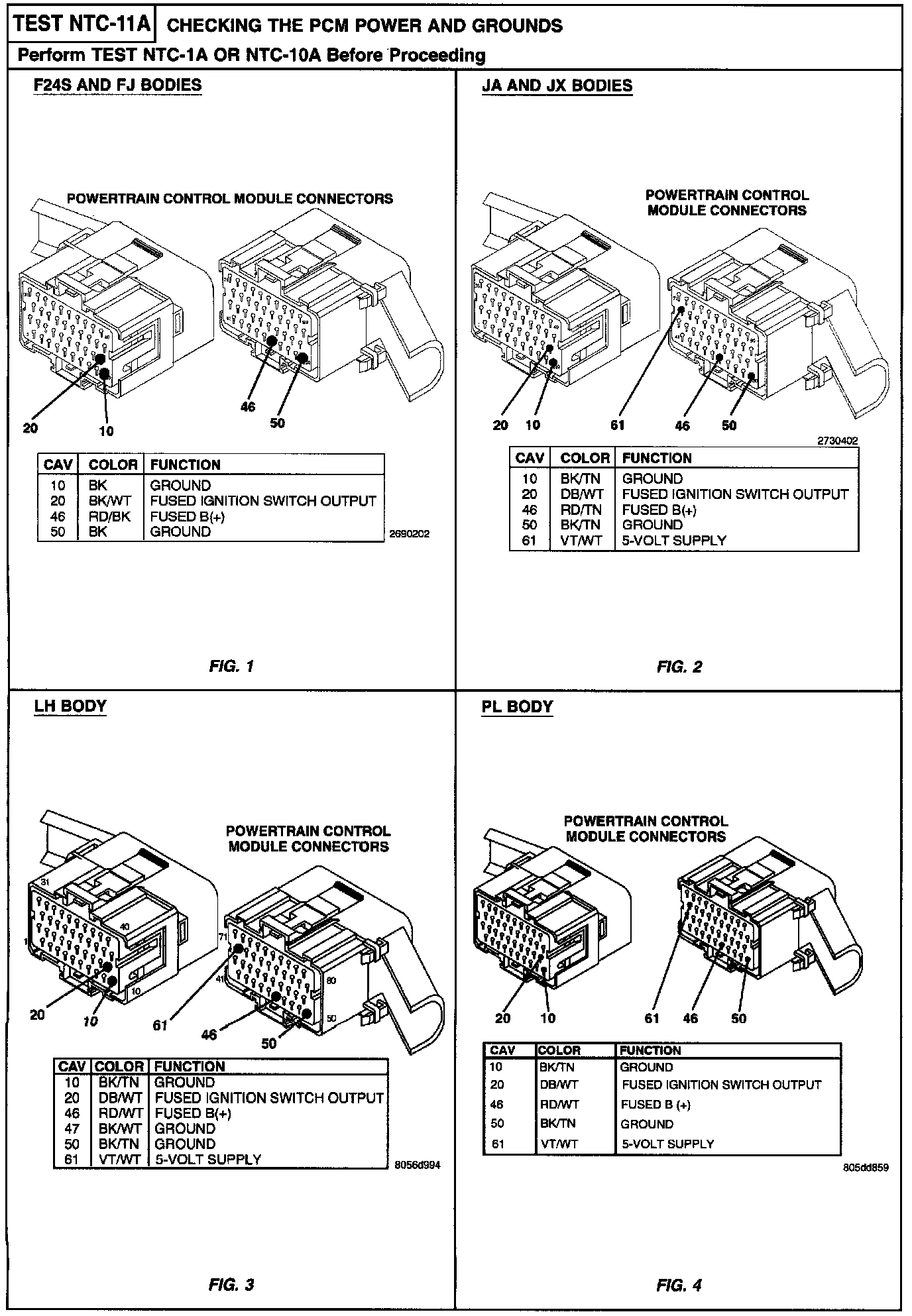

Related Images:

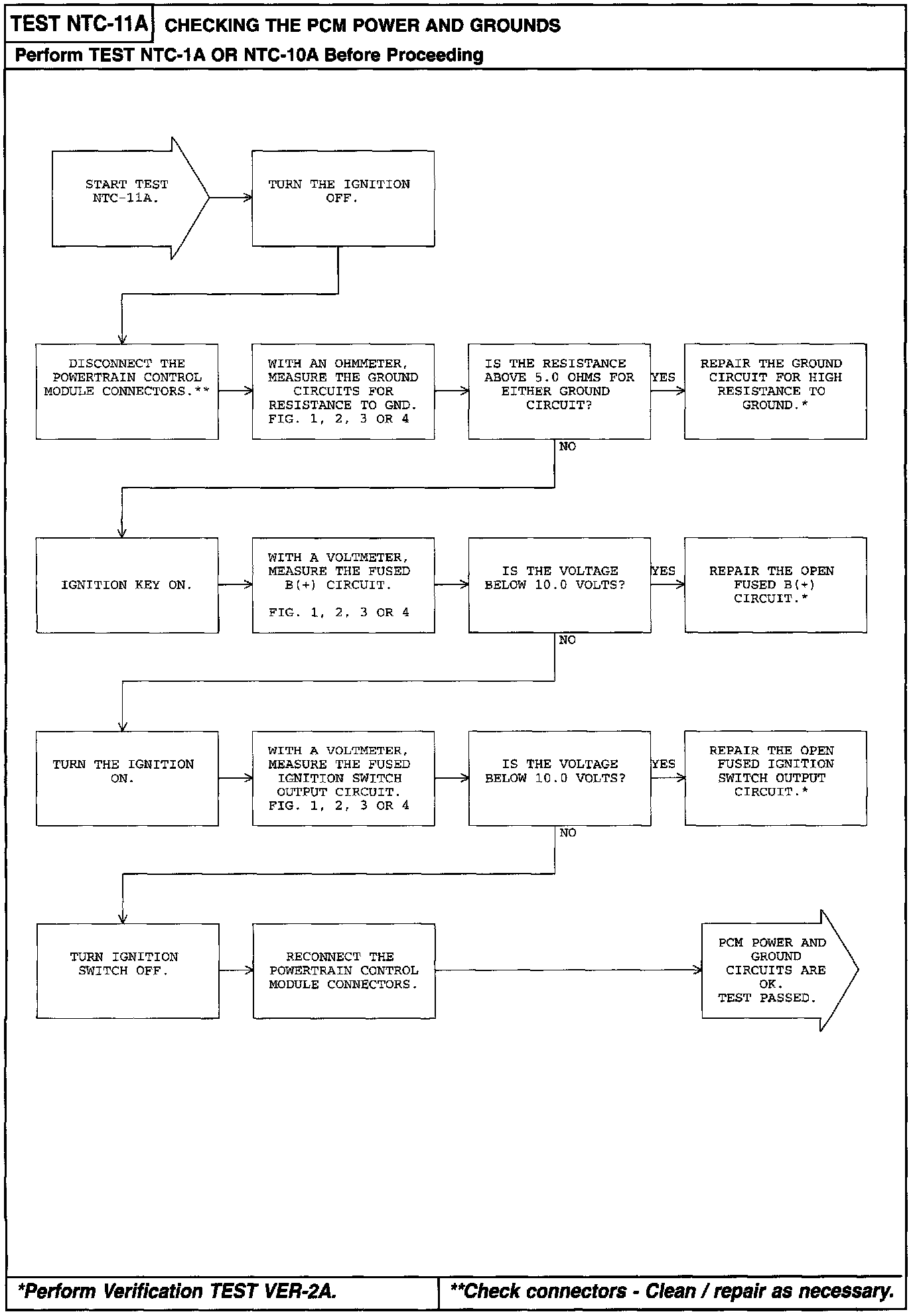

Flow Chart:
