NTC-10A Checking the Park/Neutral Position Switch
NTC-10A Checking the Park/Neutral Position Switch

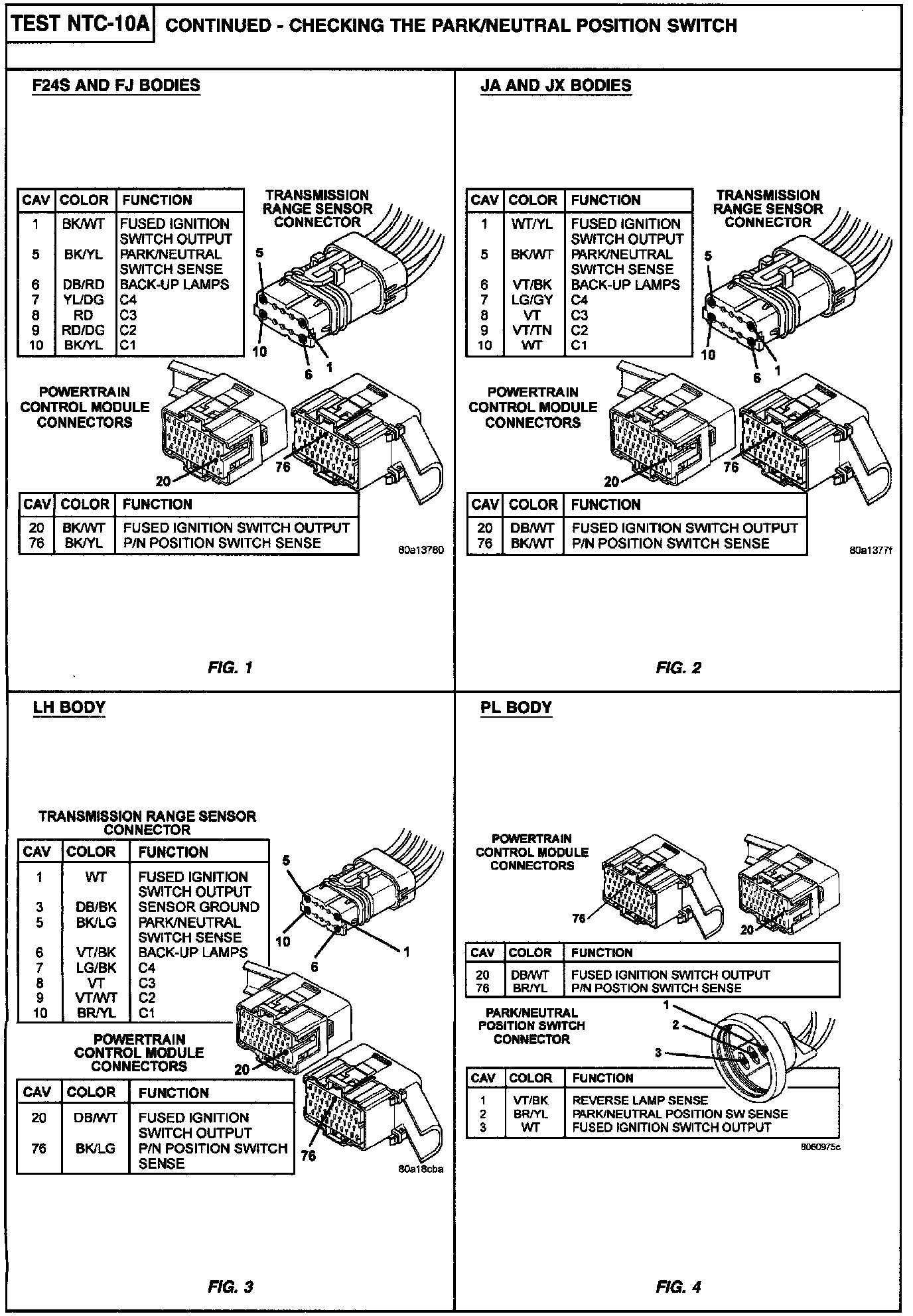

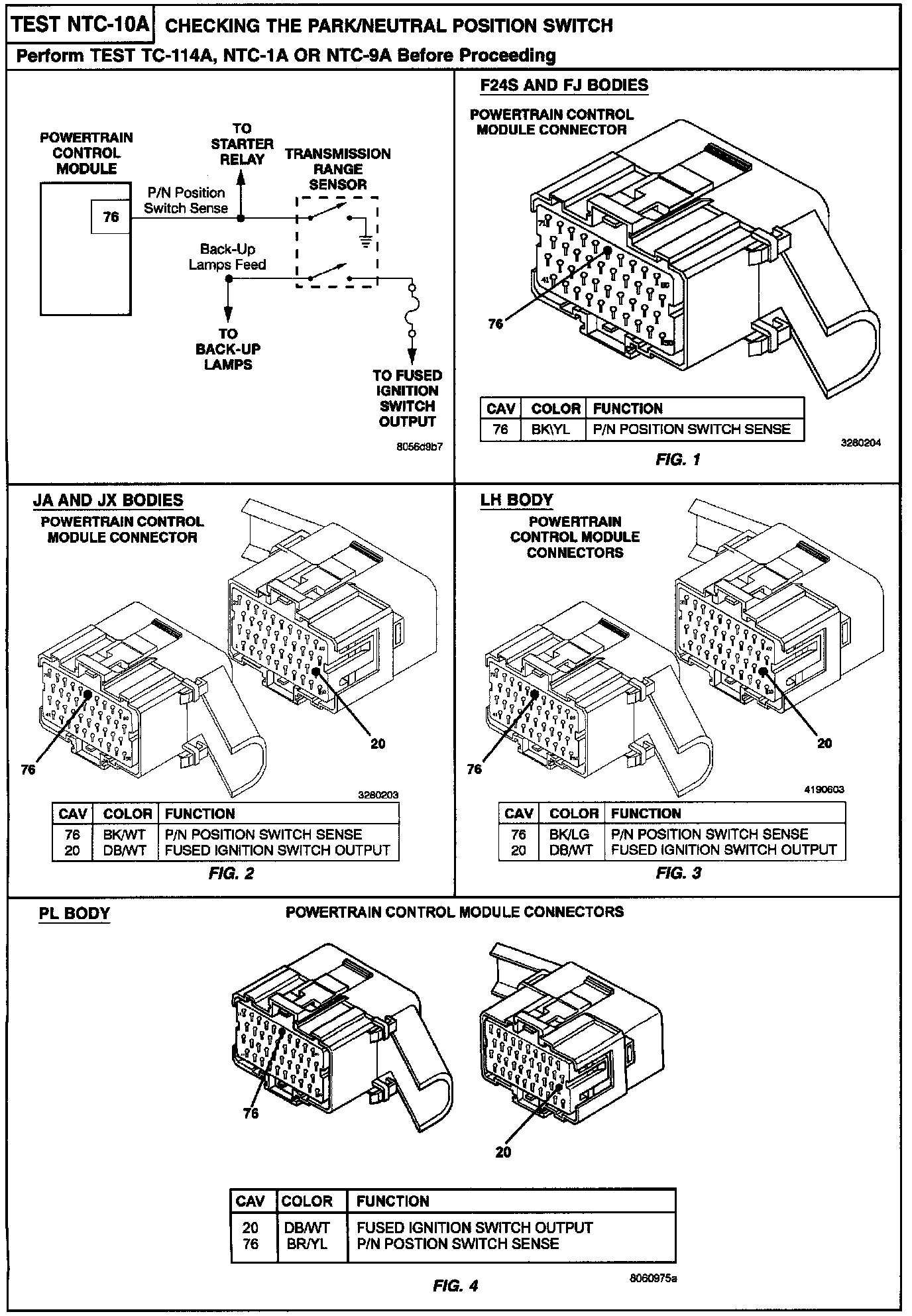

Related Images:

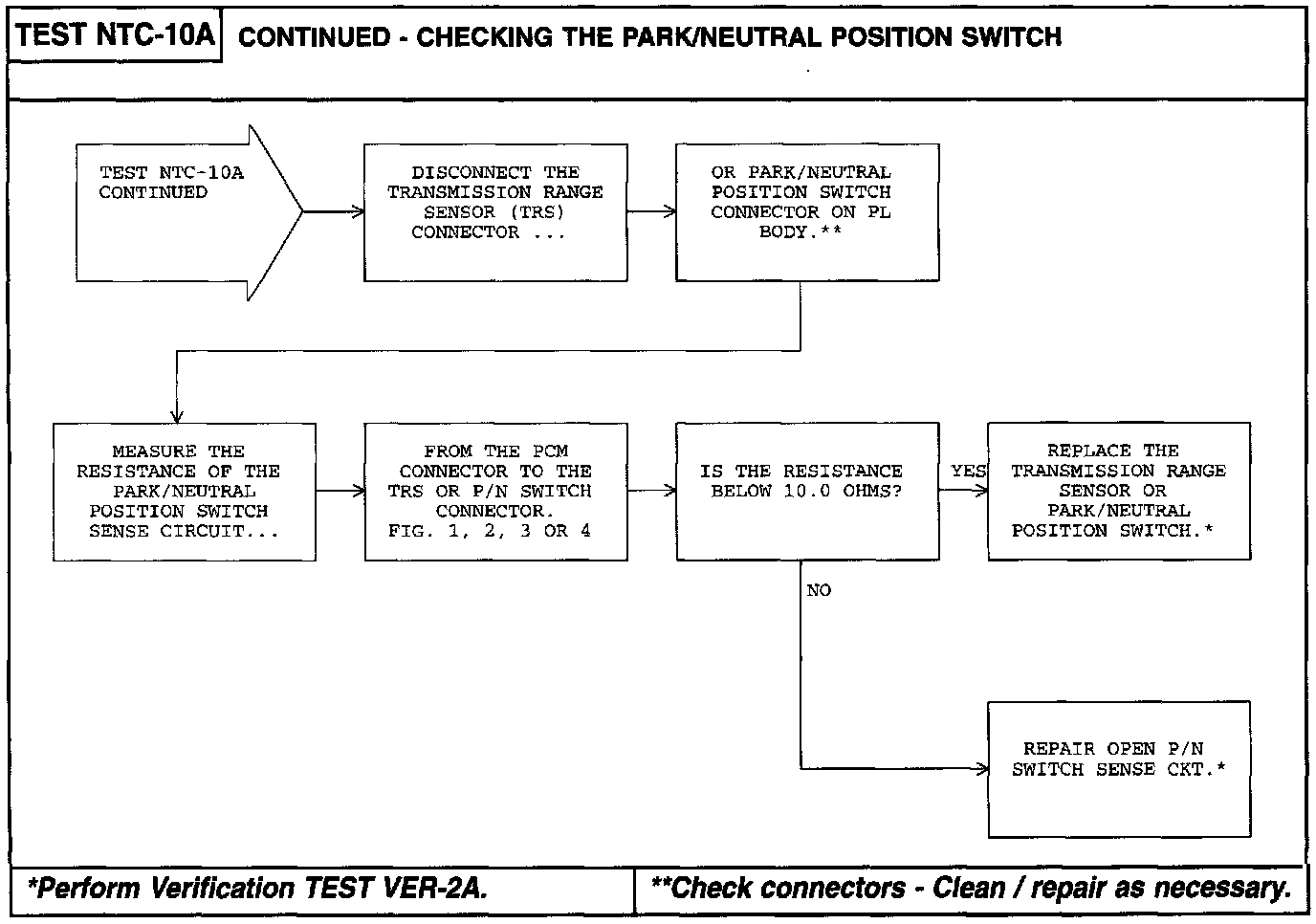

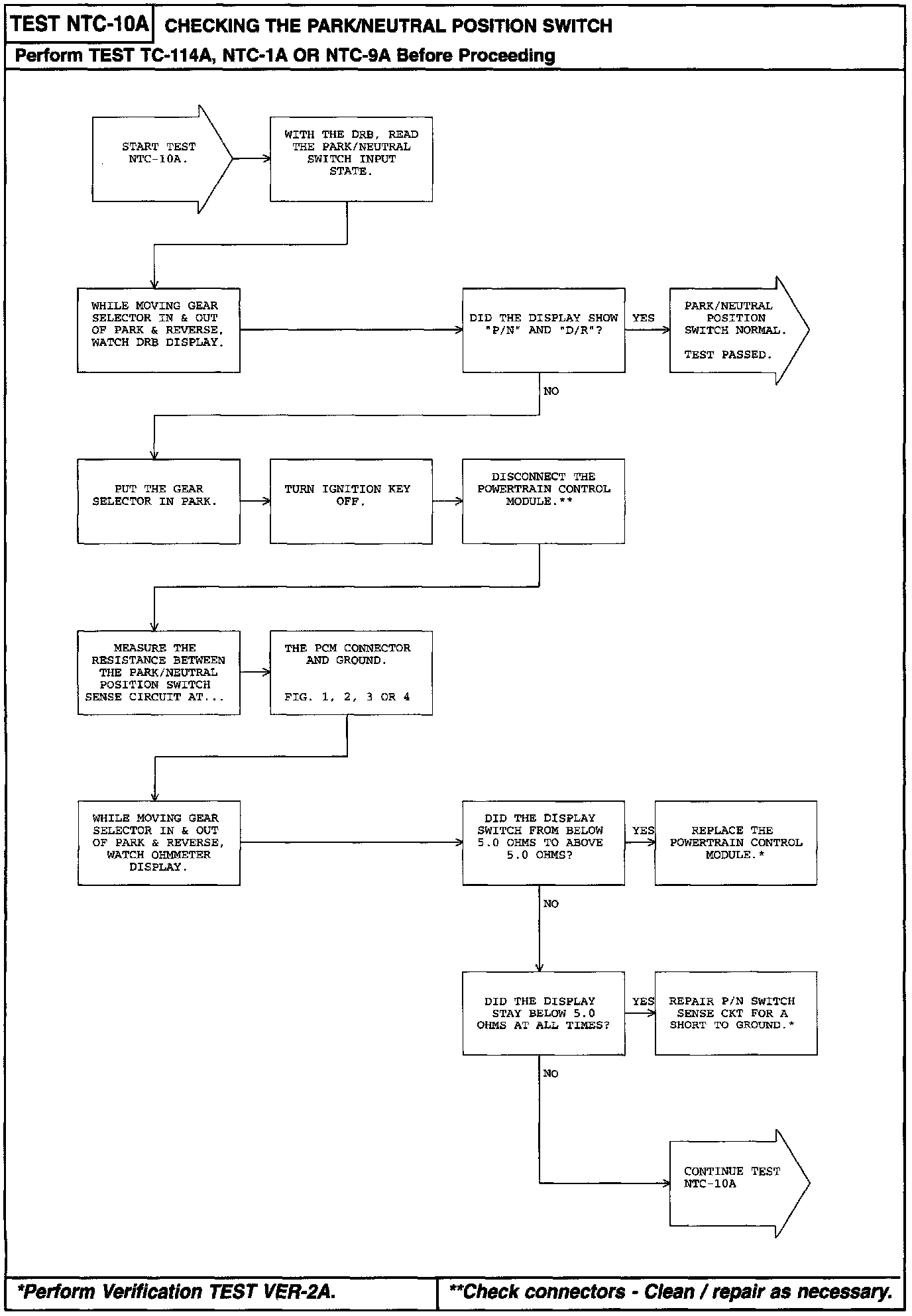

Flow Chart:
Related Images:
Flow Chart:
