No Start Test
>>
No Start (NS) Tests
>>
NS-9B Repairing A No Crank Condition
NS-9B Repairing A No Crank Condition

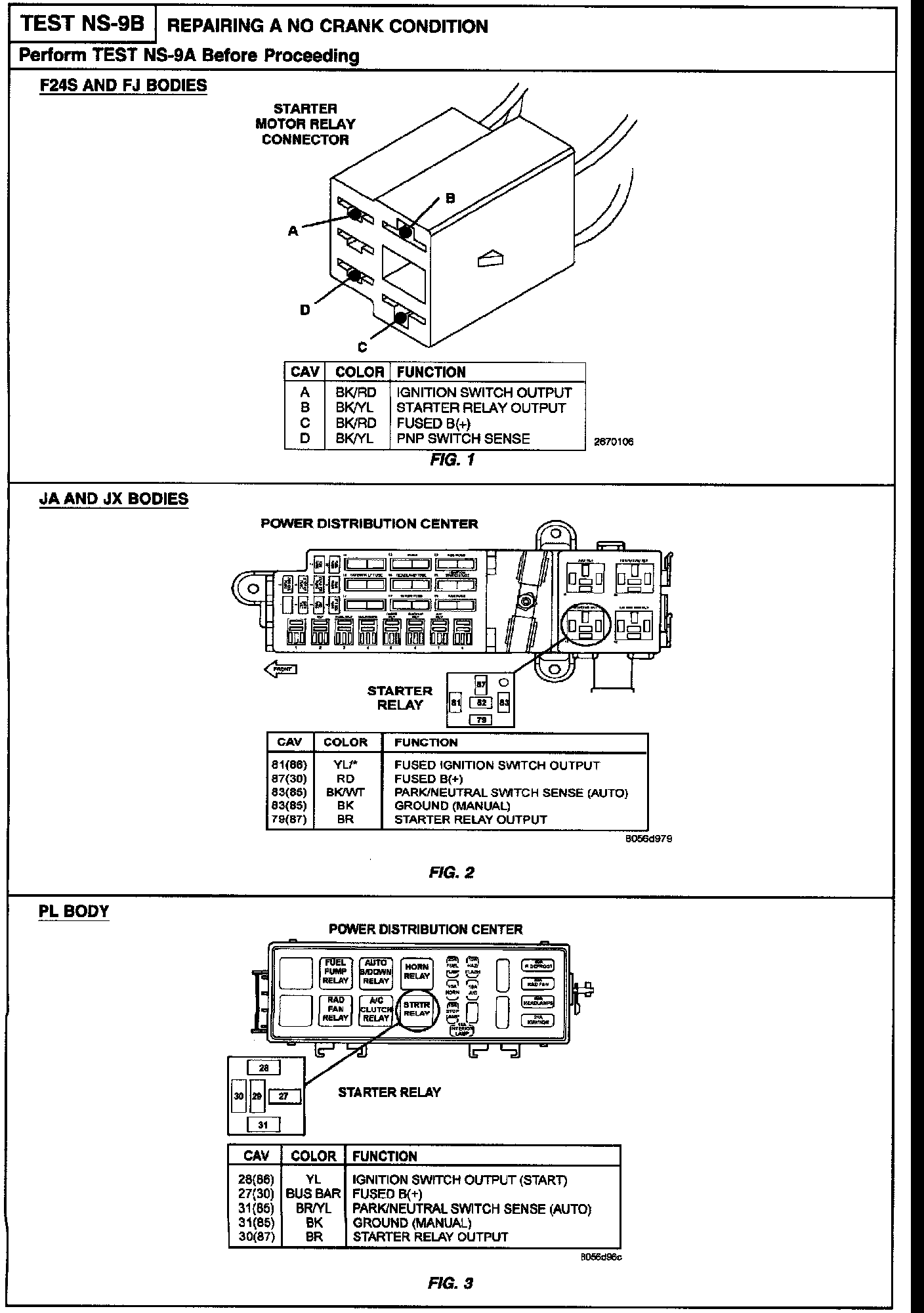

Related Images:

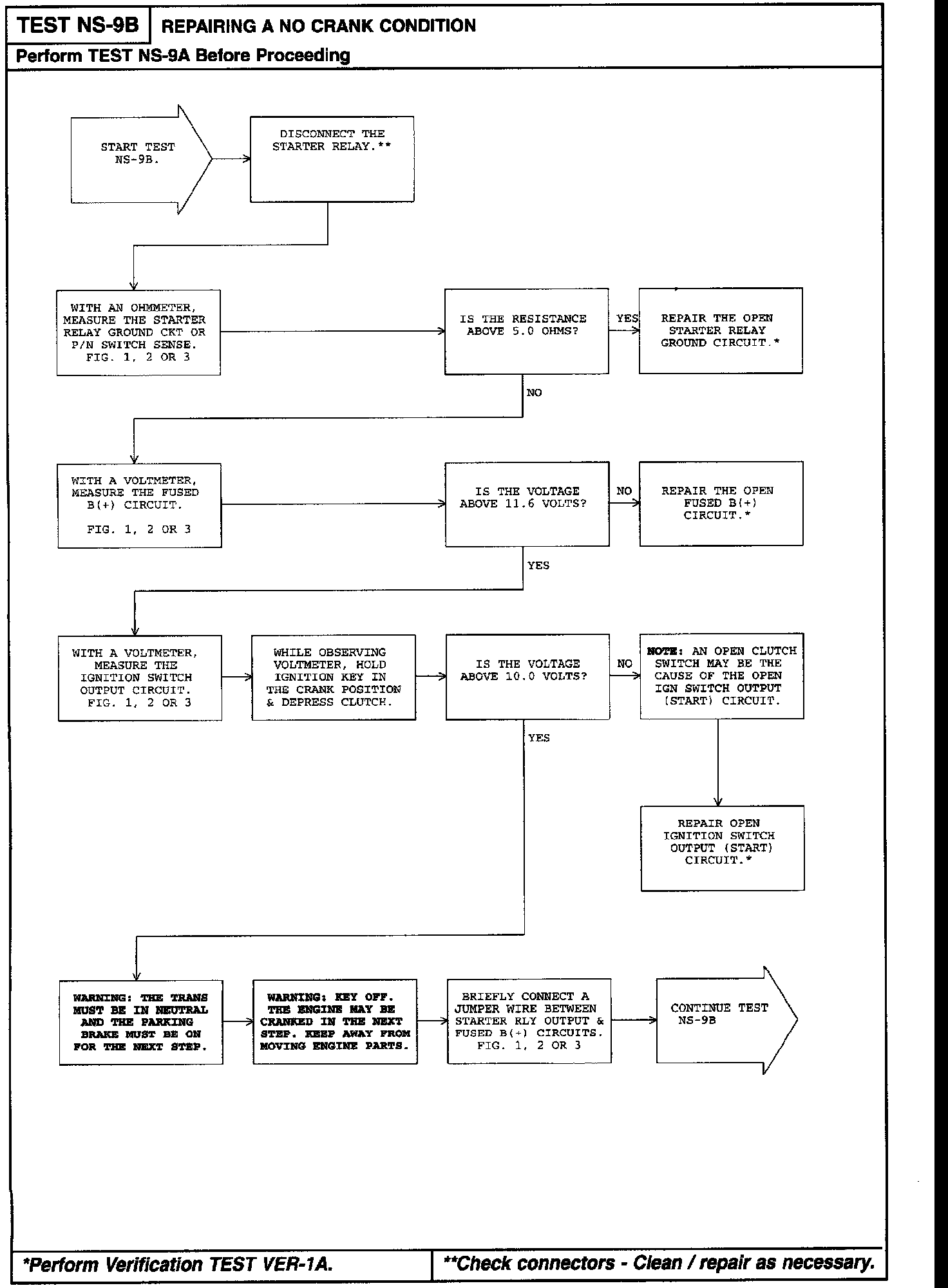

Flow Chart:

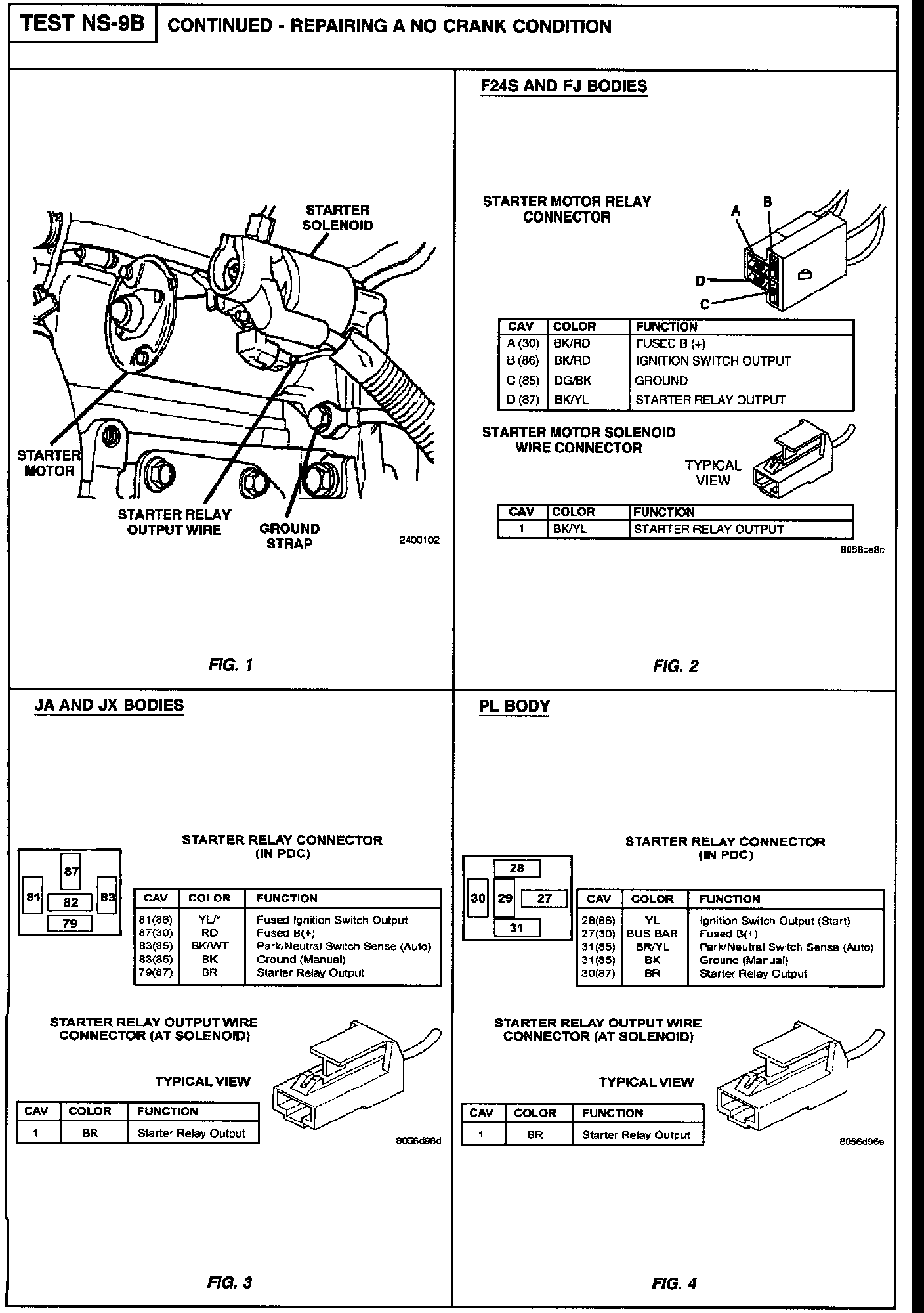

Related Images:
Flow Chart:
