No Start Test
>>
No Start (NS) Tests
>>
NS-2A Checking Fuel System
NS-2A Checking Fuel System

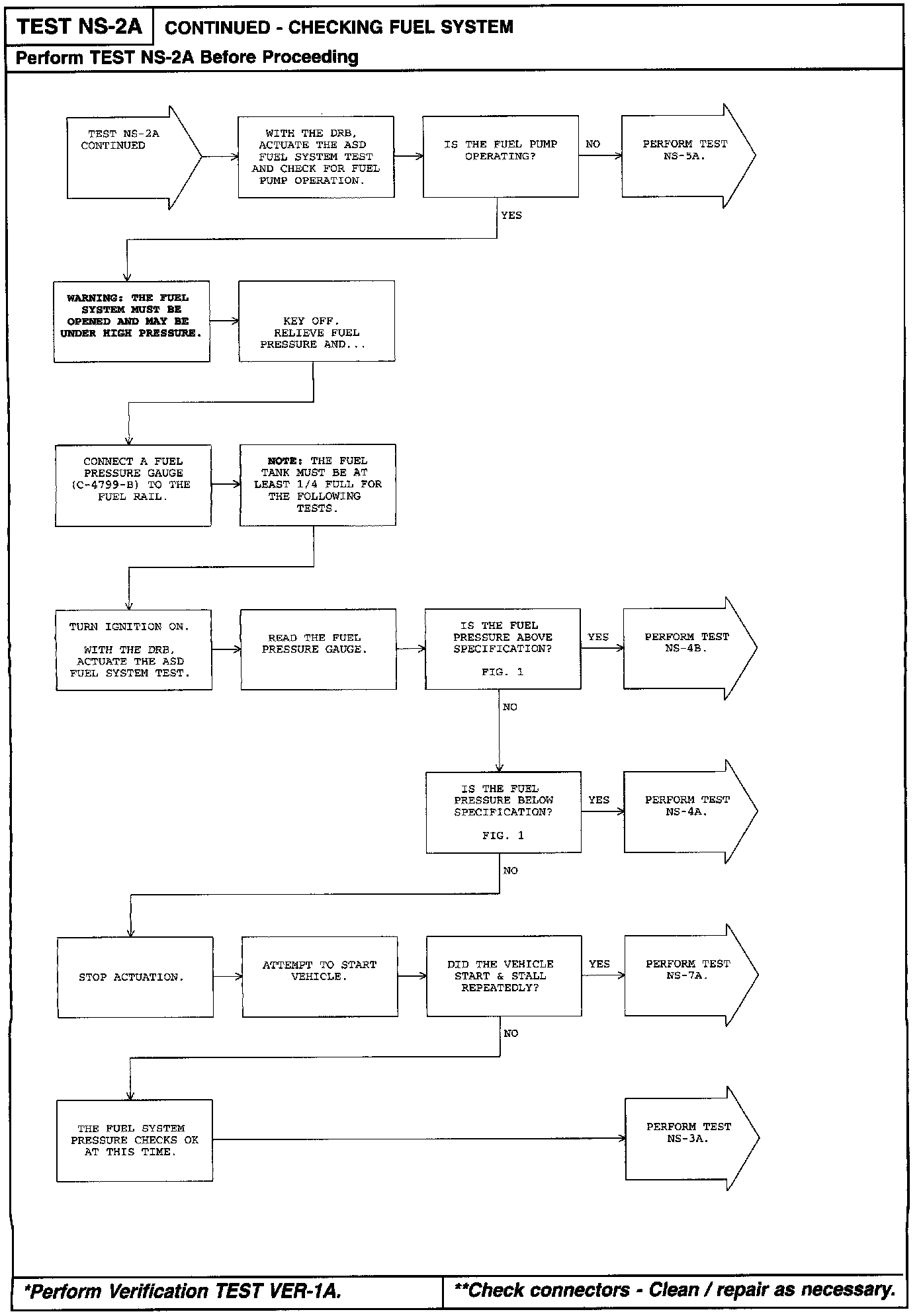

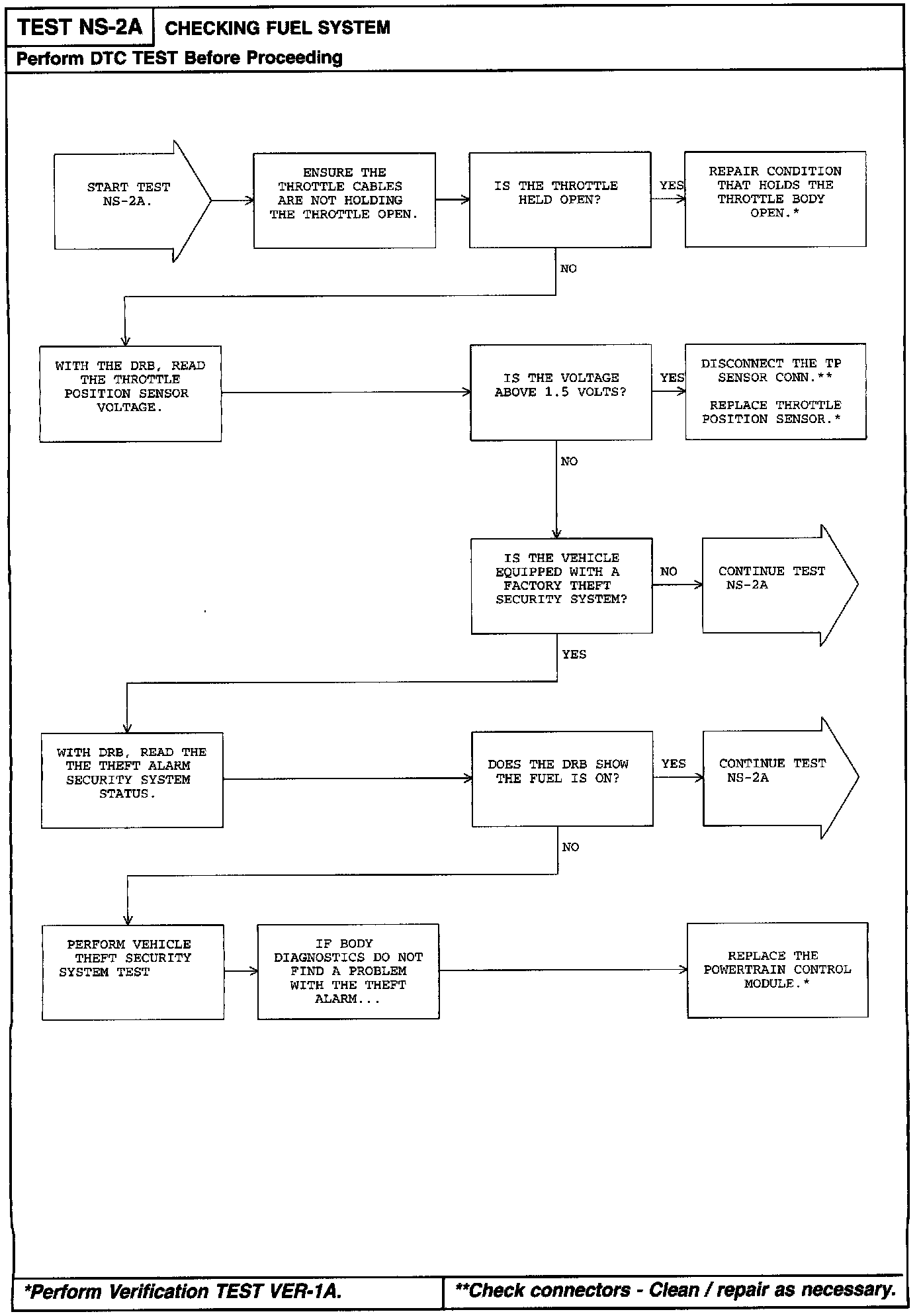

Flow Chart:

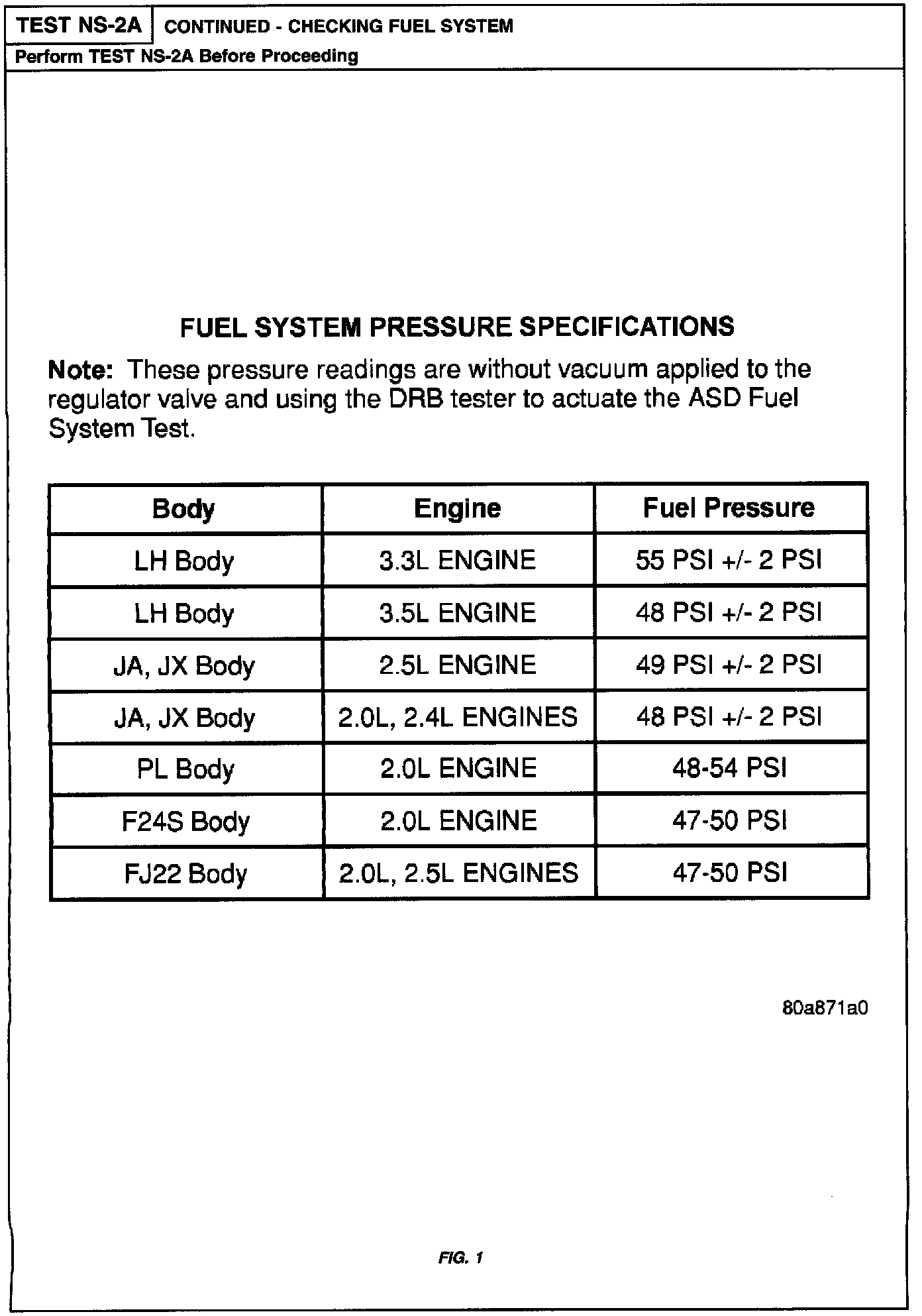

Related Images:
Flow Chart:
