Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Locations >> Connector Locations >> Connector & Ground Locations Index >> Part 2 of 3

Part 2 of 3

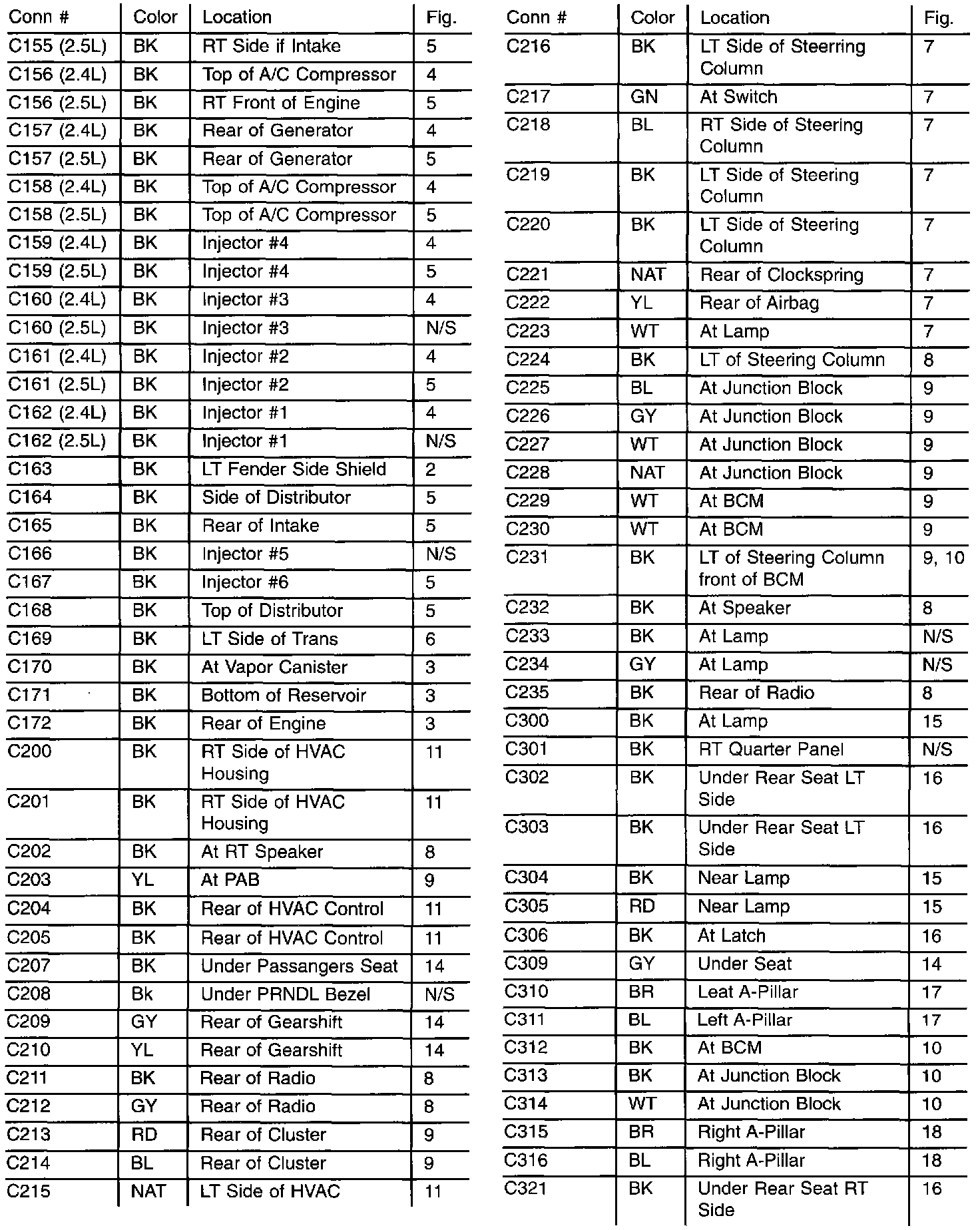

Connector/Ground Locations (Part 2 Of 3):
