Electrical Diagrams

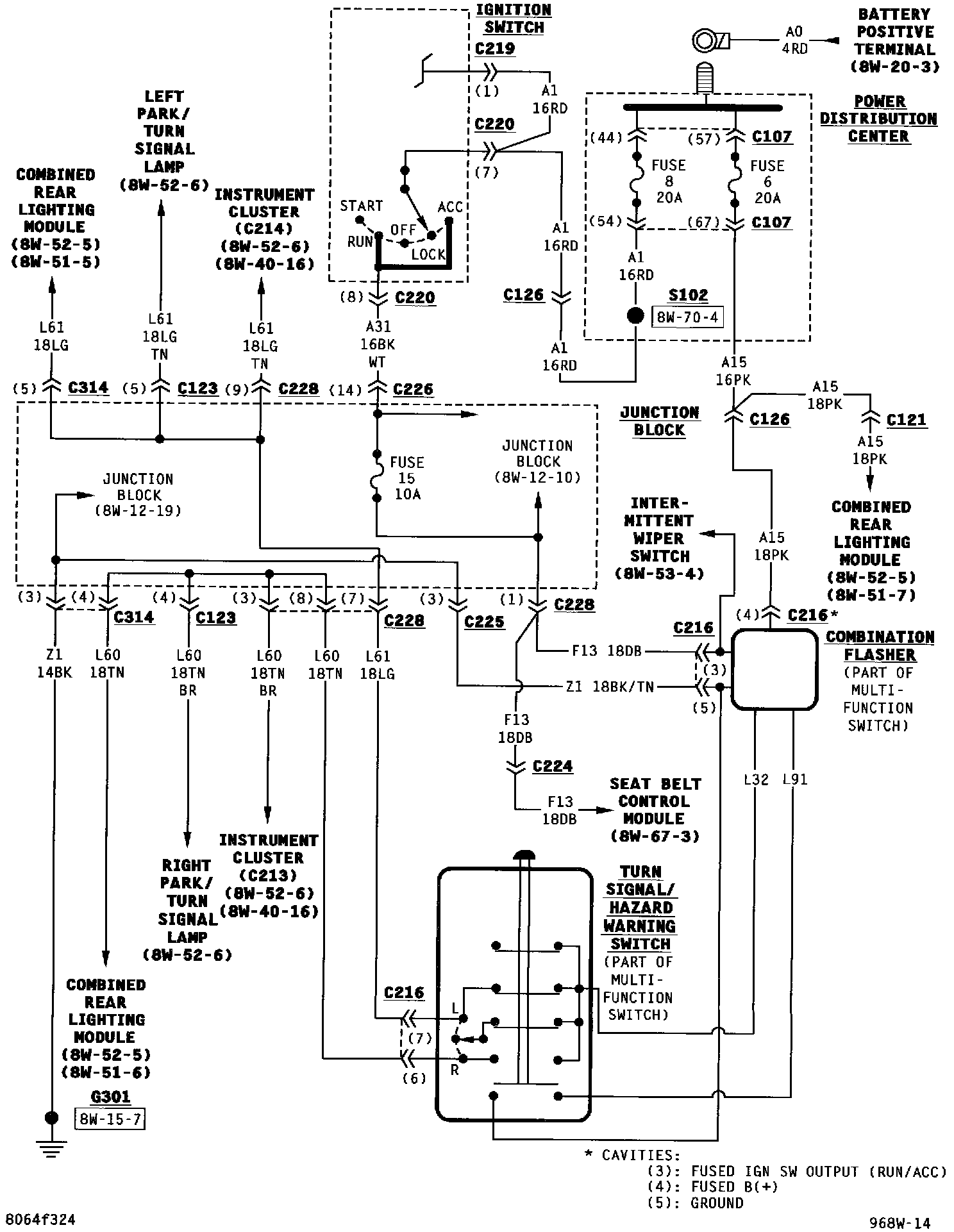

Turn Signal (Part 1 Of 3):
Turn Signal (Part 2 Of 3):
Turn Signal (Part 3 Of 3):
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
