A/C Discharge Hose/Line Replacement

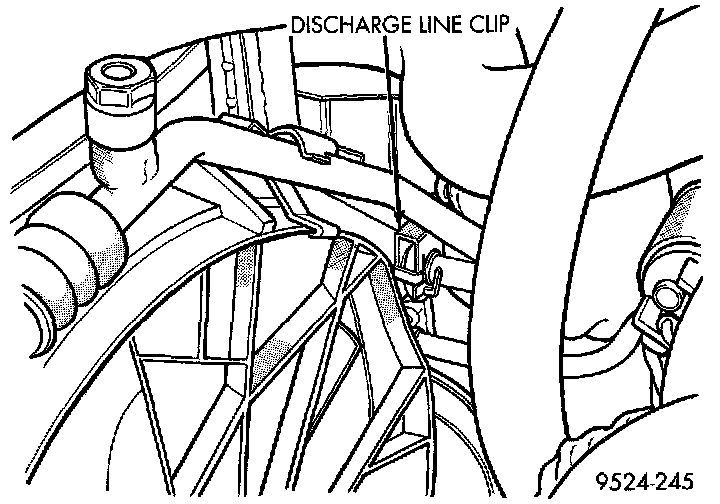

Fig 32 Quick Connect Clip:

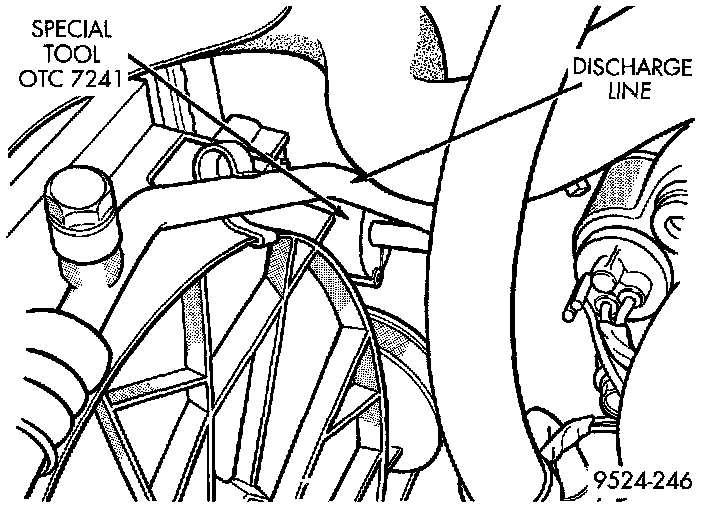

Fig 33 Special Tool For Line At Condenser:

REMOVAL
1. Remove refrigerant from the A/C system using a refrigerant recovery machine.
2. Disconnect A/C pressure transducer wire harness.
3. Remove quick connect clip and disconnect quick connect at condenser using Special Tool kit 7193.

CAUTION: Cap all lines that are not being replaced and cap the expansion valve tubes.

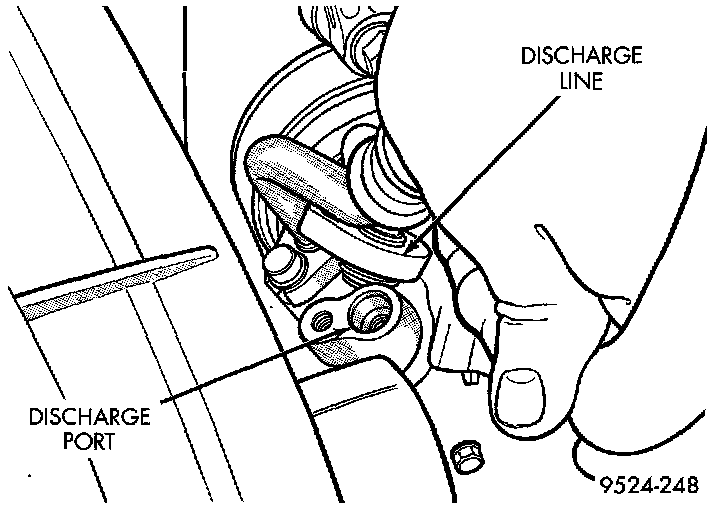

Fig 34 Line At Compressor:

4. Disconnect line at A/C compressor. Remove discharge line.

INSTALLATION
For installation, reverse the above procedures.
- Tighten bolts to 22 Nm (200 in lb).
