Blower Motor and Wheel Assembly Replacement

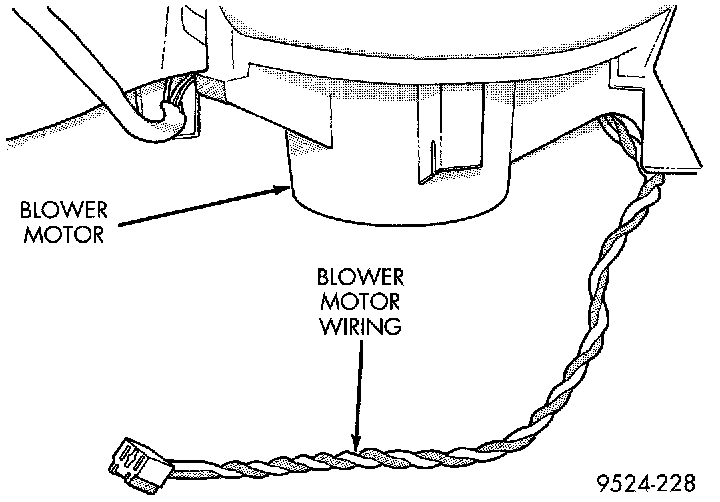

Fig 13 Blower Motor Wiring:

NOTE: The blower motor is located on the right side of the heater housing.

REMOVAL
1. Disconnect battery.
2. Remove lower right under panel silencer duct.
3. Remove blower motor connector from resistor block.
4. Remove blower motor case retaining screws.

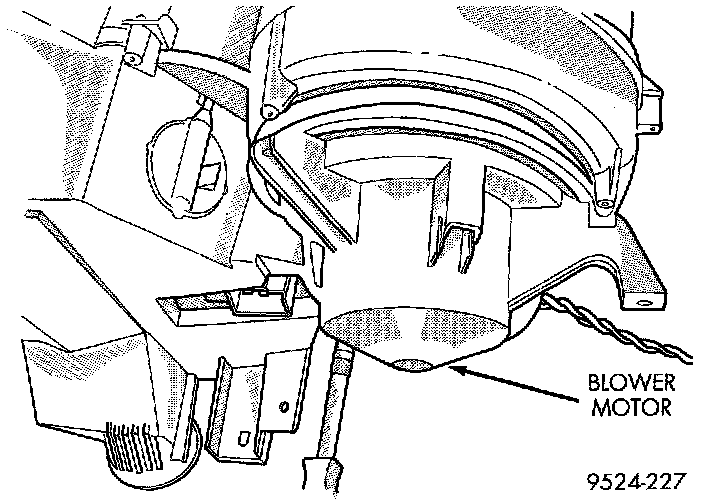

Fig 14 Blower Motor:

5. Lower blower motor case from housing.
6. Remove fan scroll from motor shaft.
7. Remove motor from motor case.

INSTALLATION
For installation, reverse the above procedures.

NOTE: The blower motor wheel is only serviced with the blower motor The wheel and the motor are balanced as an assembly. If the blower motor wheel requires replacement, the blower motor must also be replaced. Refer to blower motor for replacement procedure.
