Blower Motor Resistor: Service and Repair

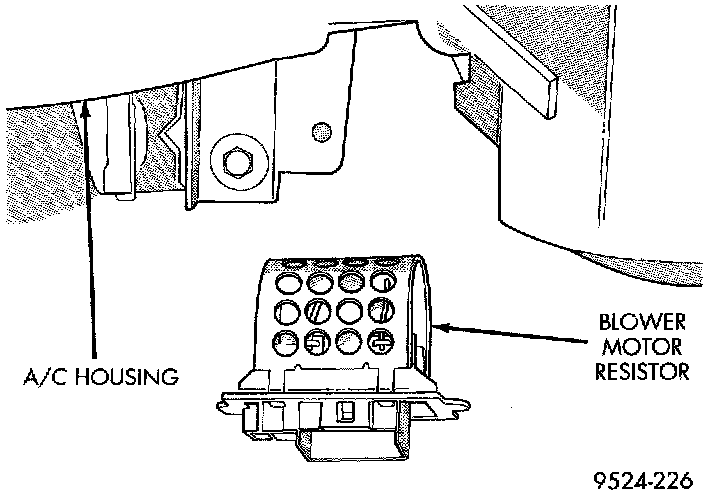

Fig 15 Blower Motor Resistor:

NOTE: The blower motor resistor is located on the lower right side of the heater housing.

REMOVAL
1. Remove lower right underpanel silencer/duct.
2. Disconnect wiring connectors on blower motor resistor.
3. Remove blower motor resistor retaining screws.
4. Pull blower motor resistor out of heater housing.

INSTALLATION
For installation, reverse the above procedures.
