Recirculation Door Cable Replacement

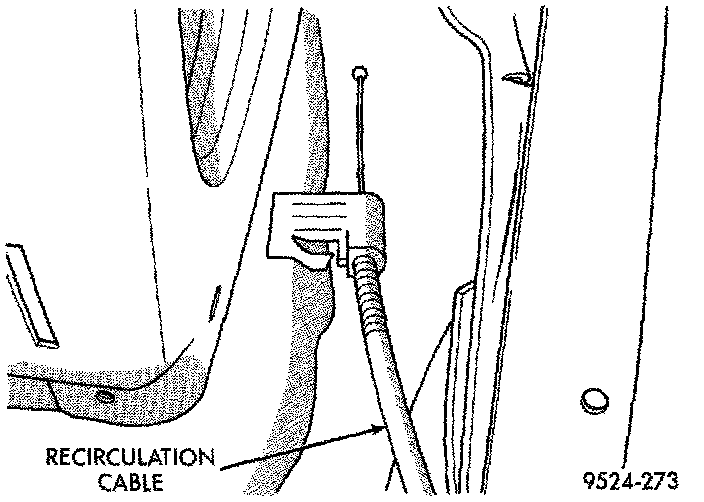

Fig 65 Recirculation Cable Location:

NOTE: The RECIRC door is actuated by a cable which mechanically positions the door.
The RECIRC door actuator is located at the far right of the A/C Heater housing near the right A-pillar.

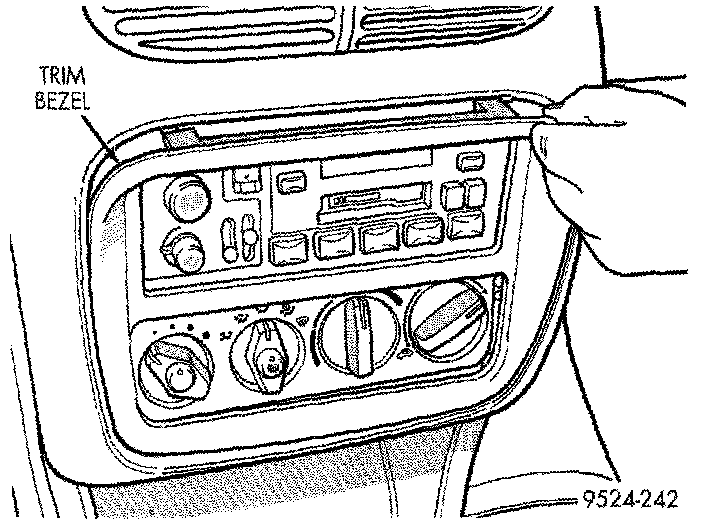

Fig 66 Trim Bezel:

REMOVAL
1. Place the ignition key in the OFF position before removing control module.
2. Remove trim bezel.

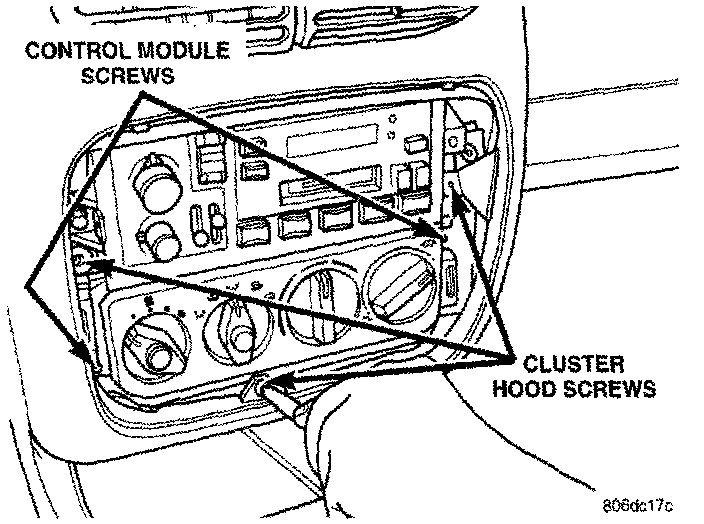

Fig 67 Control Module Screws:

3. Remove cluster hood bezel retaining screws in the trim bezel opening.
4. Pry up the cluster hood bezel a few inches to expose the cubby bin/cigar lighter bezel screws.
5. Remove the cubby bin/cigar lighter bezel and wiring.
6. Remove the control module retaining screws.

Fig 68 Control Module At Bezel Opening:

7. Drop the A/C control module into the cigar lighter/cubby bin bezel opening. Then disconnect the wiring on the rear of the control module.
8. Release the recirculation cable retaining clip from the top of the control module. Retain the clip for future use. Then disconnect the recirculation control cable.
9. Remove right under panel silencer/duct.

Fig 69 Disconnect Recirculation Cable:

10. Disconnect cable flag at right of recirculation housing.
11. Remove cable core end from recirculation actuator lever.

INSTALLATION
For installation, reverse the above procedures. Verify that the cables are property adjusted, free of interference, and the module is seated properly.
