Front Crankshaft Seal: Service and Repair

FRONT SEAL

REMOVAL

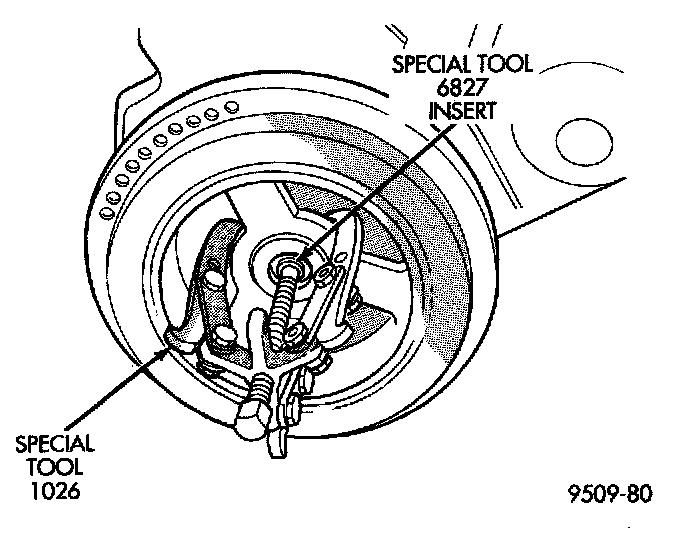

1. Using large side of Special Tool 1026 and Insert 6827, remove crankshaft damper.
2. Remove outer timing belt cover and timing belt. Refer to Timing Belt.

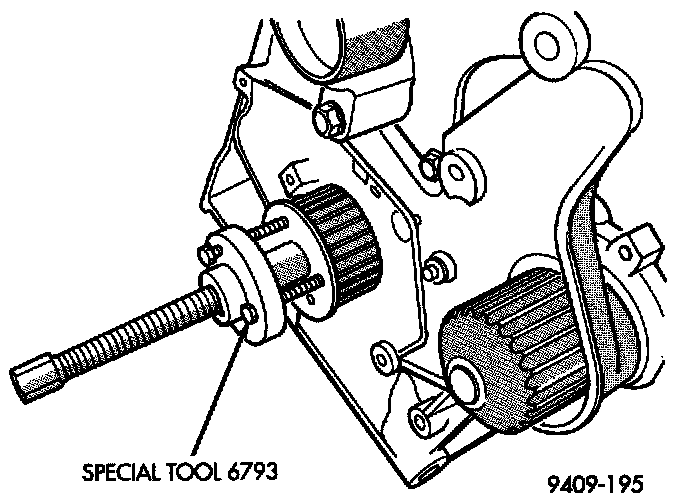

3. Remove crankshaft sprocket using Special Tool 6793 and insert C-4685-C2.


CAUTION: Do not nick shaft seal surface or seal bore.

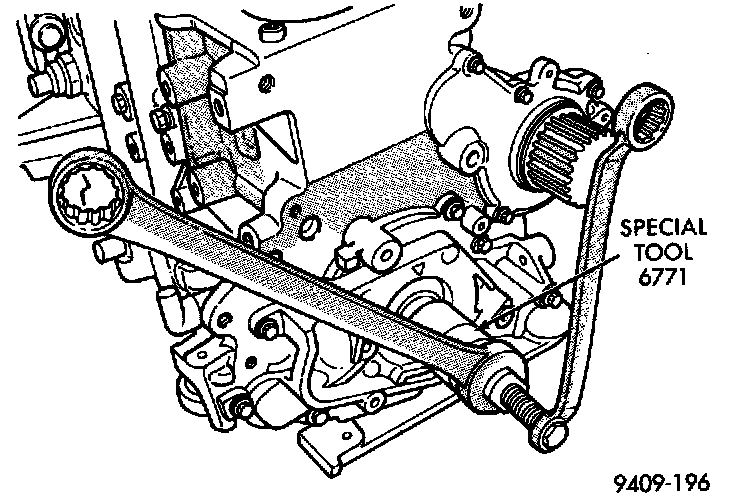

4. Using Tool 6771 to remove front crankshaft oil seal. Be careful not to damage the seal surface of cover.


INSTALLATION

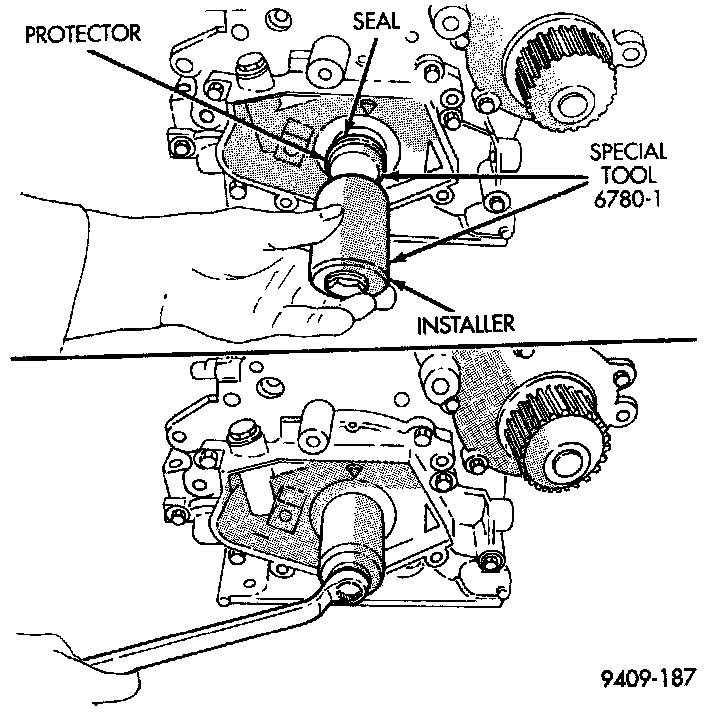

1. Install new seal by using Tool 6780.
2. Place seal into opening with seal spring towards the inside of engine. Install seal until flush with cover.

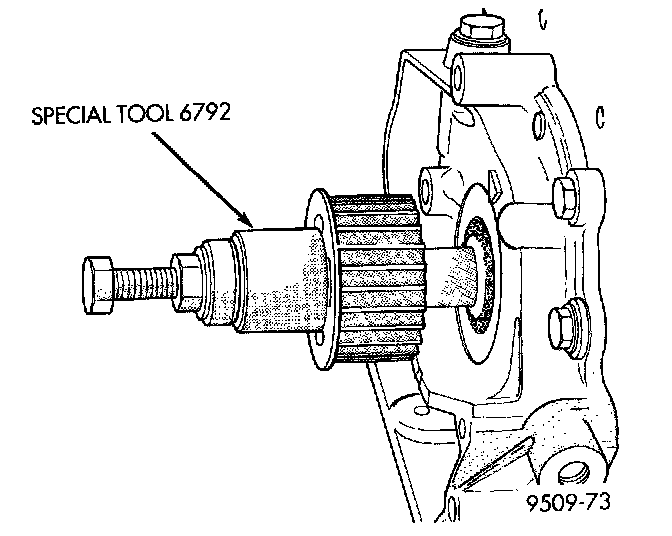

3. Install crankshaft sprocket using Special Tool 6792.
4. Install timing belt and timing belt covers. Refer to Timing System Section for timing belt covers and belt.

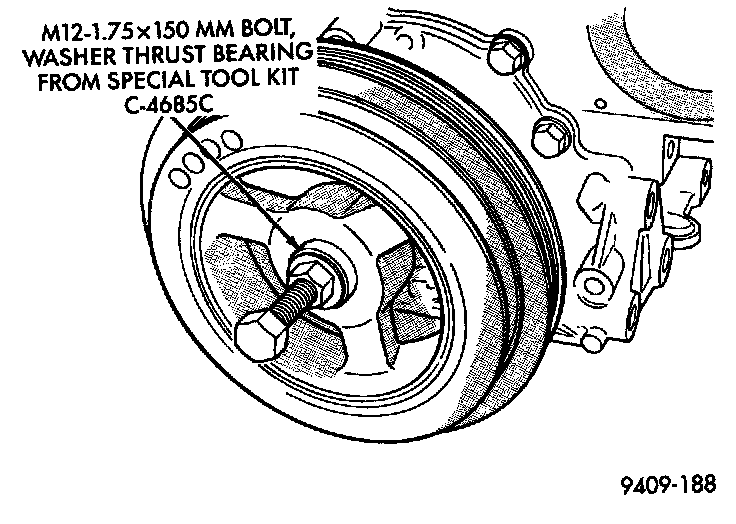

5. Install crankshaft damper. Use thrust bearing/washer and 12M-1.75 x 150 mm bolt from Special Tool Kit 6792. Install crankshaft damper bolt and tighten to 142 Nm (105 ft. lbs.)
