Oil Pump Replacement

REMOVAL
1. Disconnect negative battery cable.
2. Remove Timing Belt.
3. Remove Oil Pan.

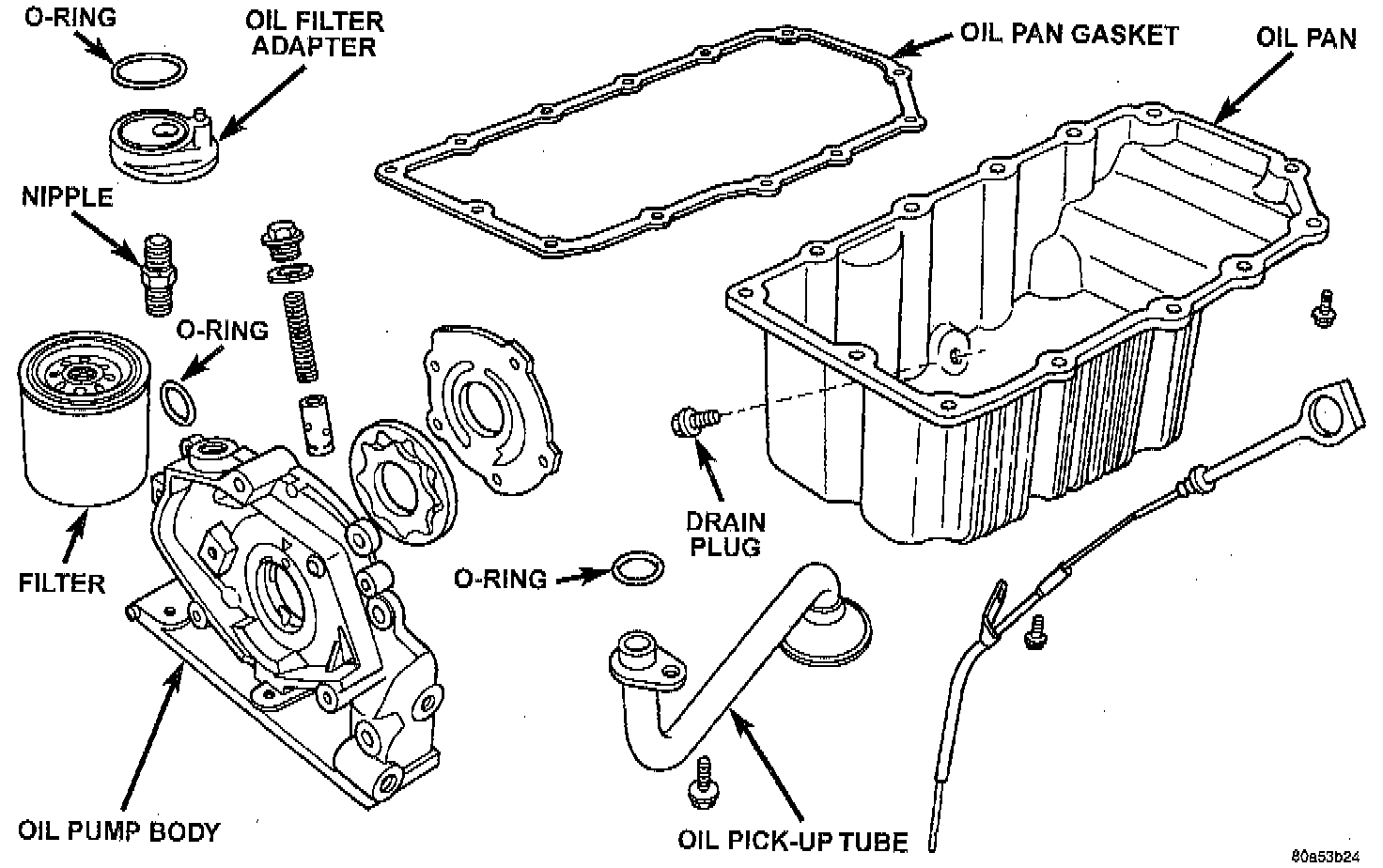

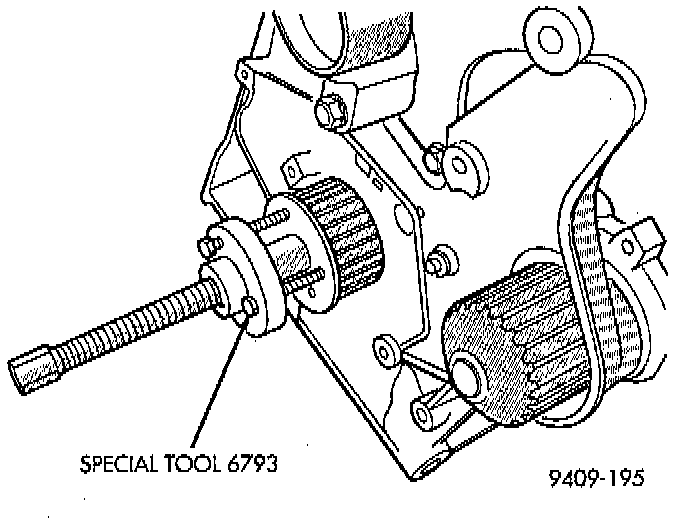

4. Remove Crankshaft Sprocket using Special Tool 6793 and insert C4865-C2, or equivalents.
5. Remove oil pick-up tube.





6. Remove oil pump and front crankshaft seal.

INSTALLATION
1. Make sure all surfaces are clean and free of oil and dirt.

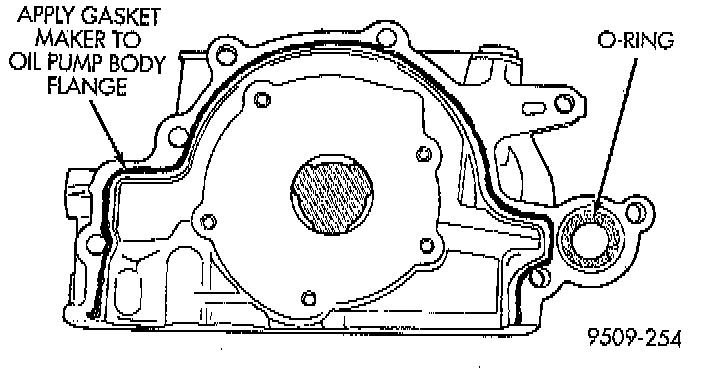

2. Apply Mopar Gasket Maker to oil pump as shown. Install oil ring into oil primp body discharge passage.
3. Prime oil pump before installation.
4. Align oil pump rotor flats with flats on crankshaft as you install the oil pump to the block.

NOTE: Front crankshaft seal MUST be out of pump to align, or damage may result.

5. Torque all oil pump attaching bolts to 28 Nm (250 in. lbs.).

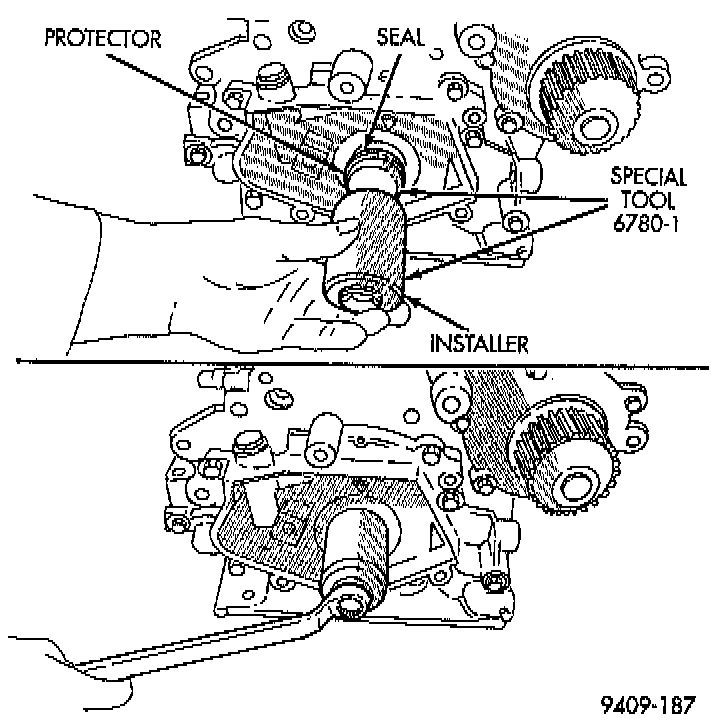

6. Install new front crankshaft seal using Special Tool 6780, or equivalent.

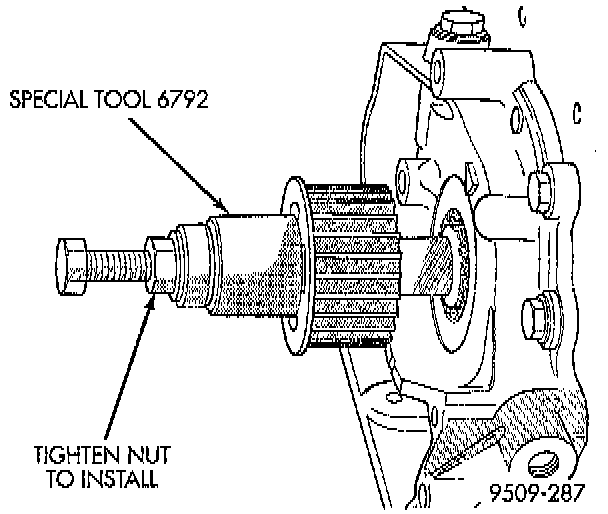

7. Install crankshaft sprocket, using Special Tool 6792, or equivalent.
8. Install oil pump pick-up tube and oil pan.
9. Install Timing Belt.
