Rear Mount

1. Raise and support vehicle, then remove left front wheel.
2. Support transaxle with transaxle jack.

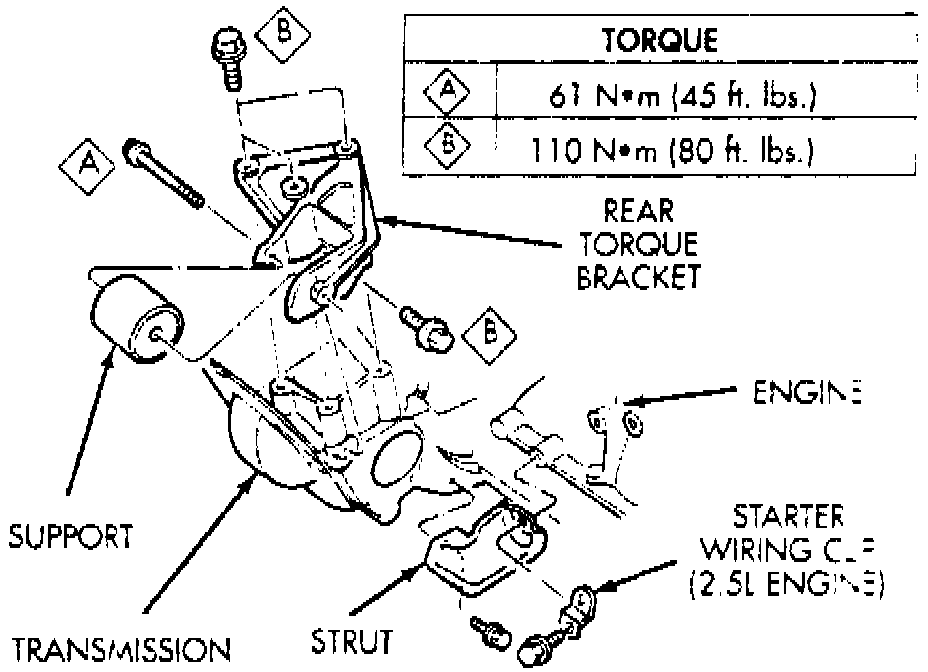

Fig. 7 Rear Engine Mount Replacement.:

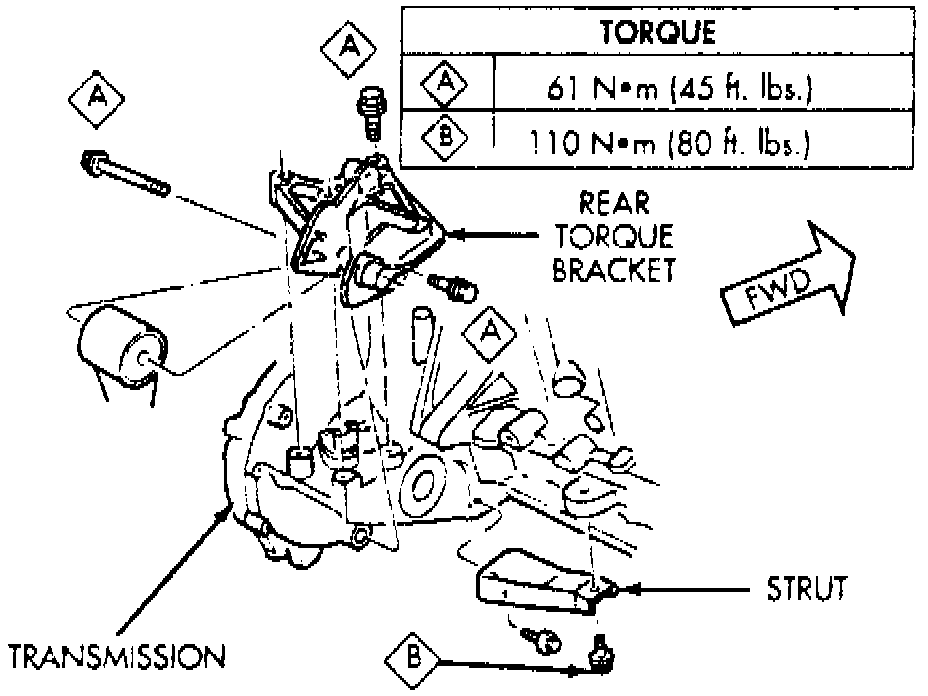

Fig. 8 Rear Engine Mount Replacement.:

3. Remove mount and rear suspension crossmember insulator attaching bolt.
4. Remove four transaxle mount attaching bolts, then the mount.
5. Reverse procedure to install. Tighten attaching nuts and bolts to specifications shown.
