Engine Support Module (Front and Rear Mounts)

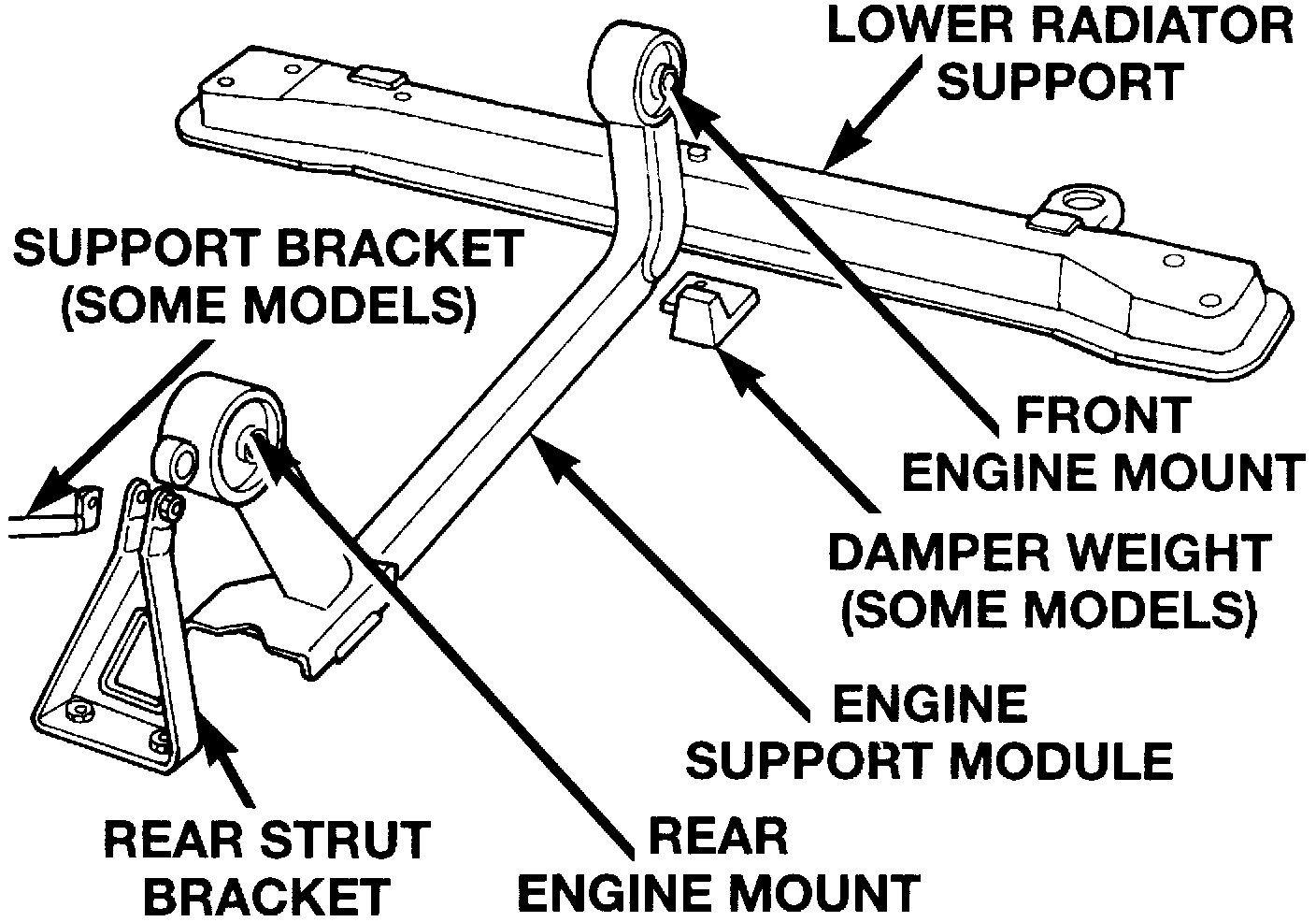

Fig. 4 Engine Cradle (Support Module):

1. Raise and support vehicle, then remove rear mount through-bolt and the bolts securing the cradle to crossmember.
2. Remove rear support strut bracket upper bolt and the bolts securing the cradle to lower radiator support.
3. With cooling module supported, remove lower radiator support.
4. Remove front through bolt, then the cradle.
5. Reverse procedure to install, noting the following:
a. Do not tighten front through bolt until rear through bolt is installed and tightened.
b. Tighten bolts to specifications.
