Windows

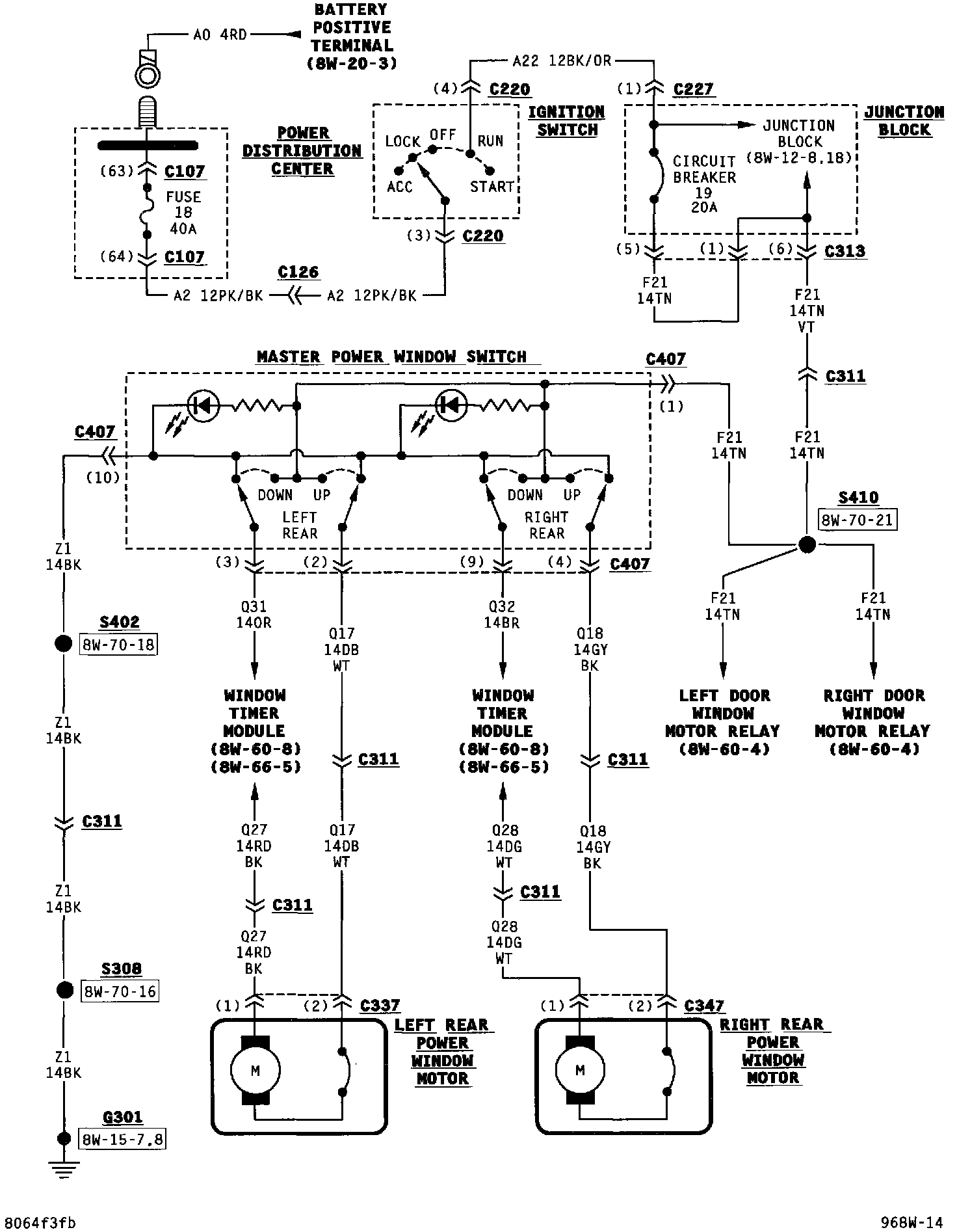

Power Windows (Part 1 Of 5):

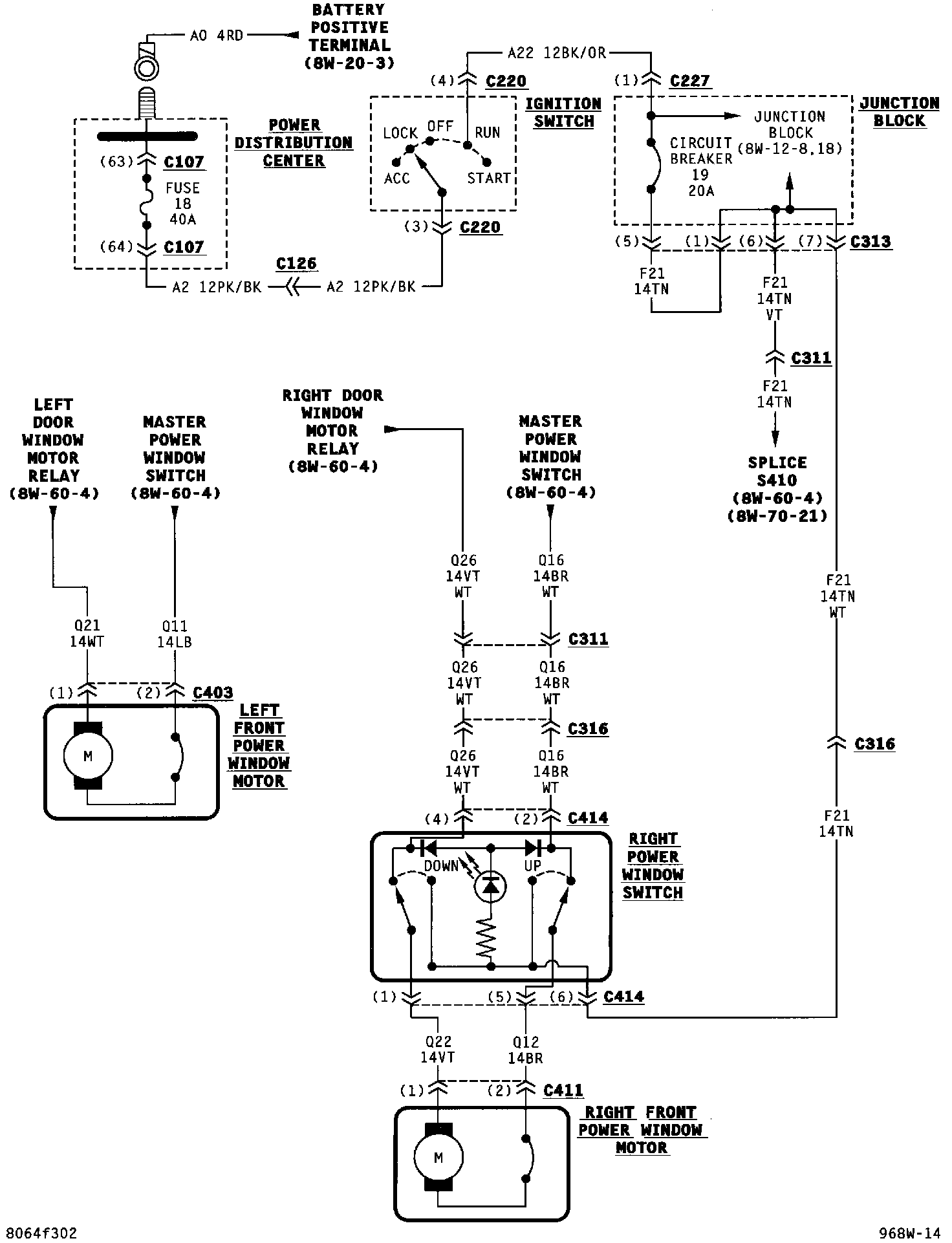

Power Windows (Part 2 Of 5):

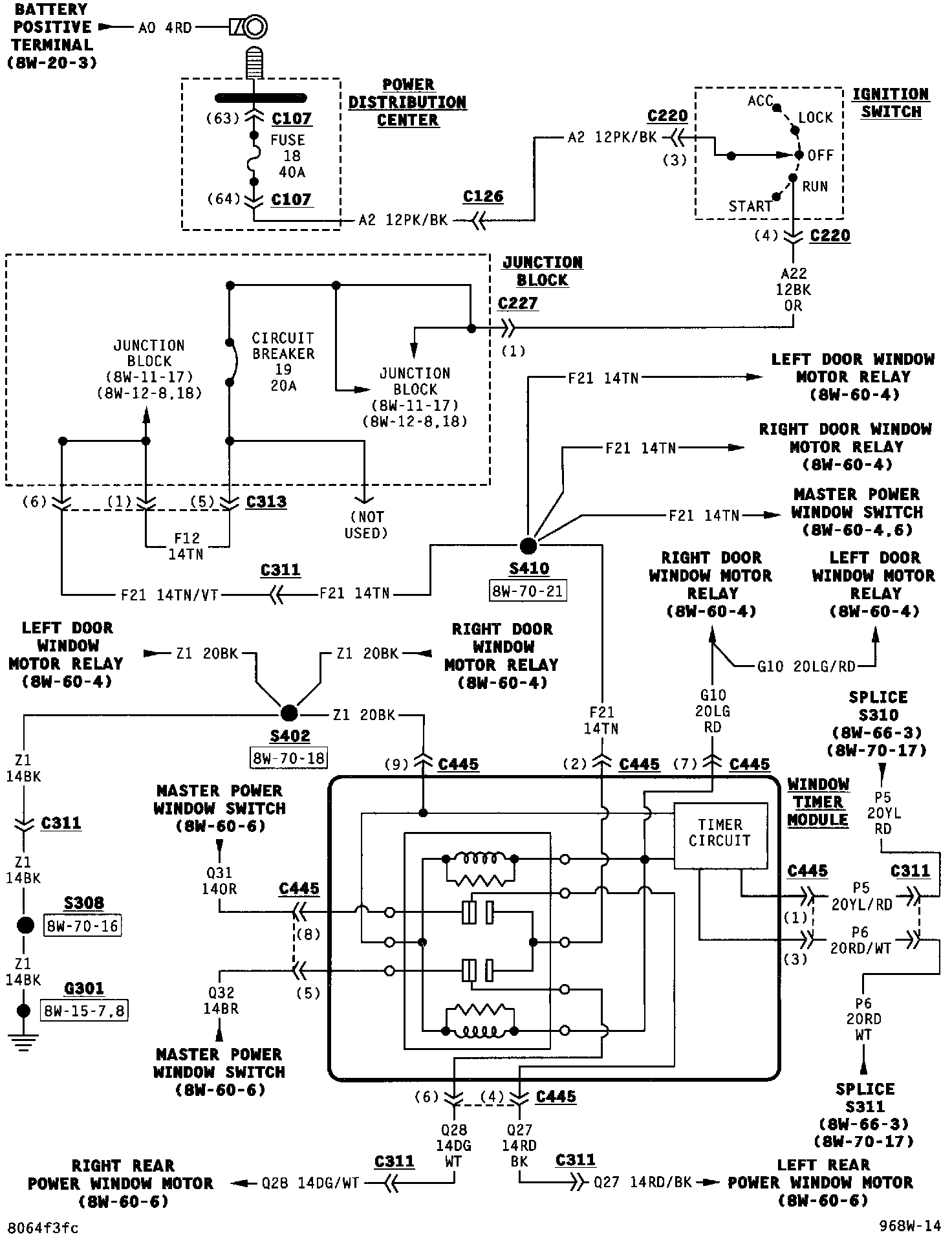

Power Windows (Part 3 Of 5):

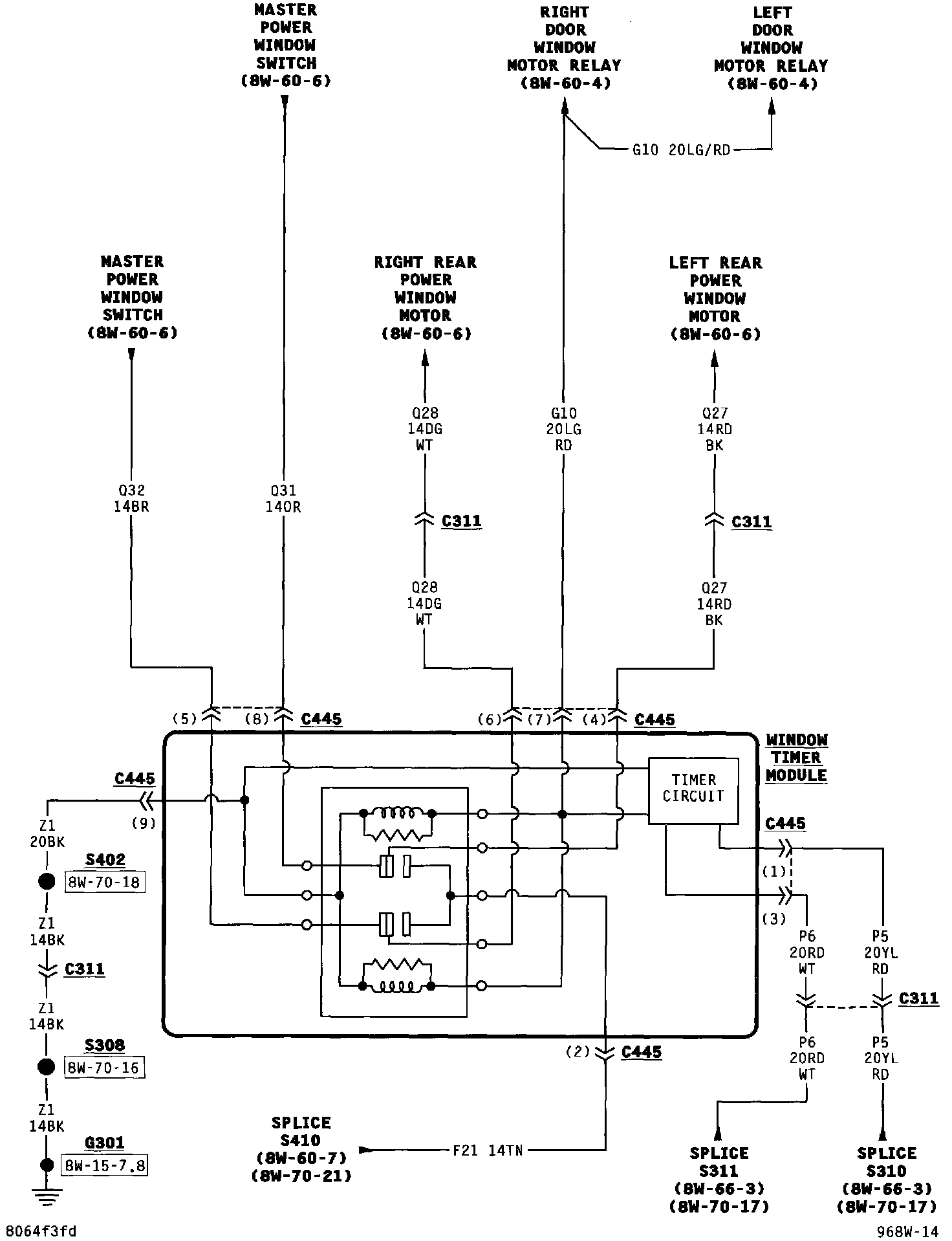

Power Windows (Part 4 Of 5):

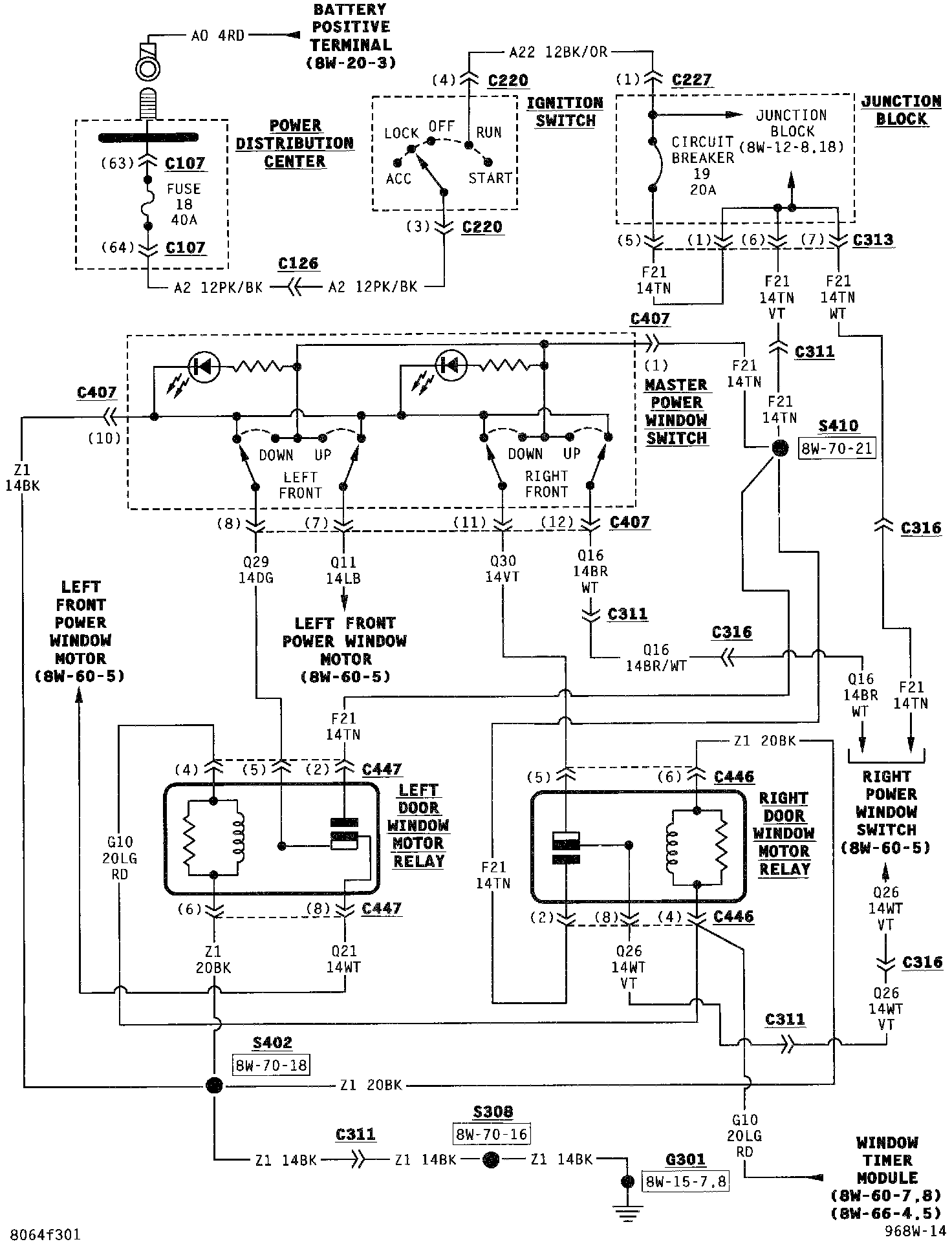

Power Windows (Part 5 Of 5):
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
