Radiator Cooling Fan Motor
Radiator Cooling Fan Motor

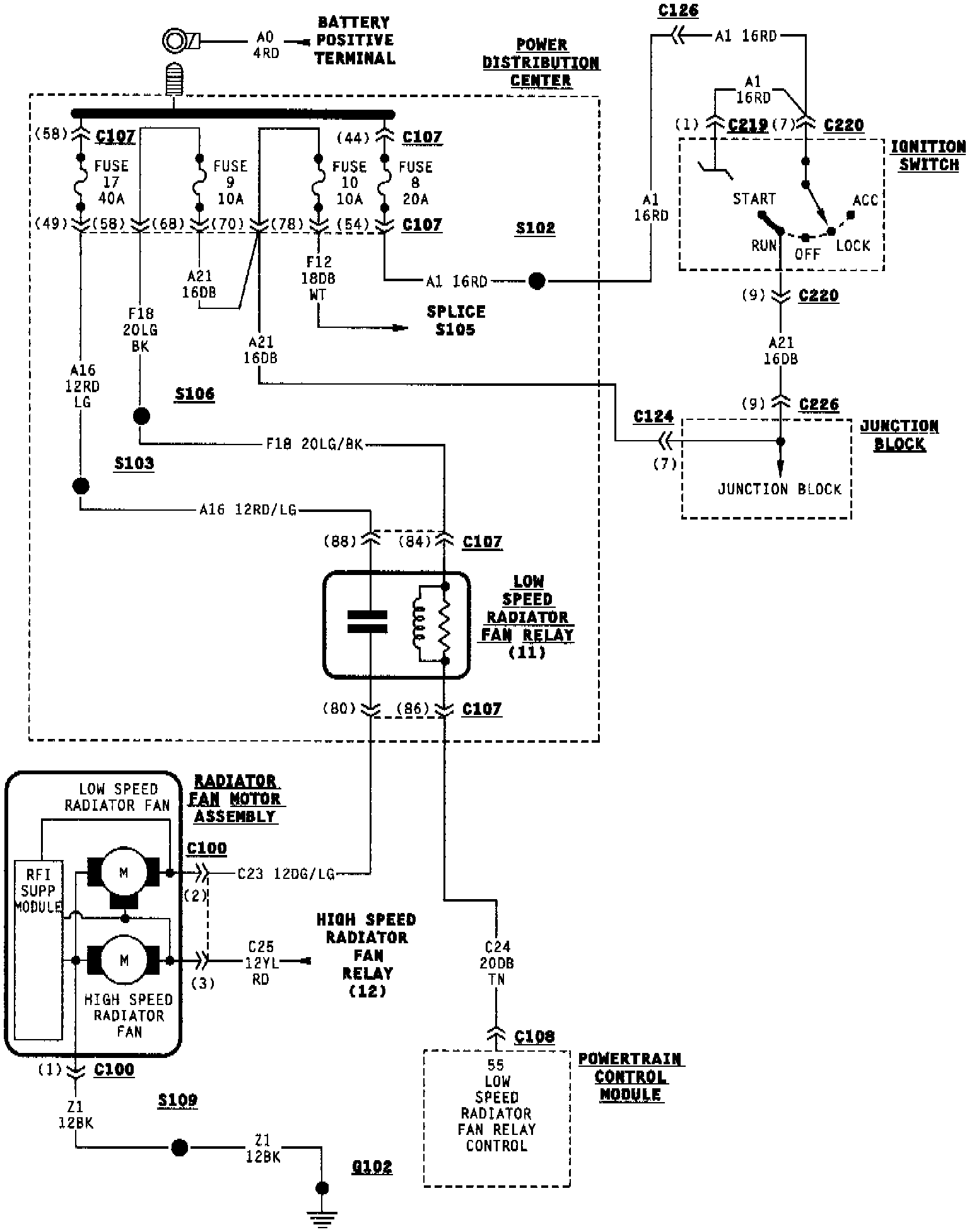

Engine Cooling Fan Wiring Circuit (Part 1 Of 2).:

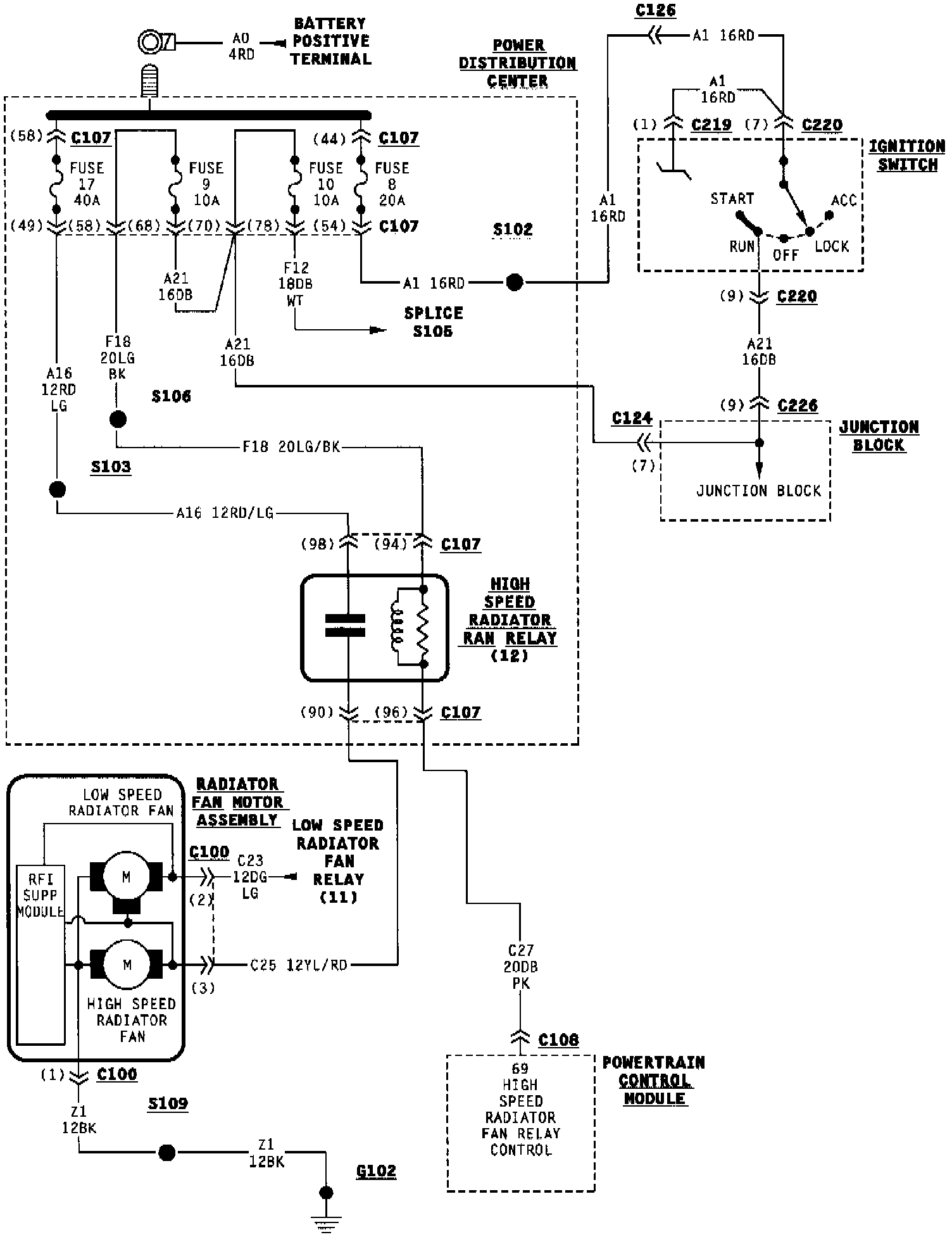

Engine Cooling Fan Wiring Circuit (Part 2 Of 2).:
