Multiple Junction Connector

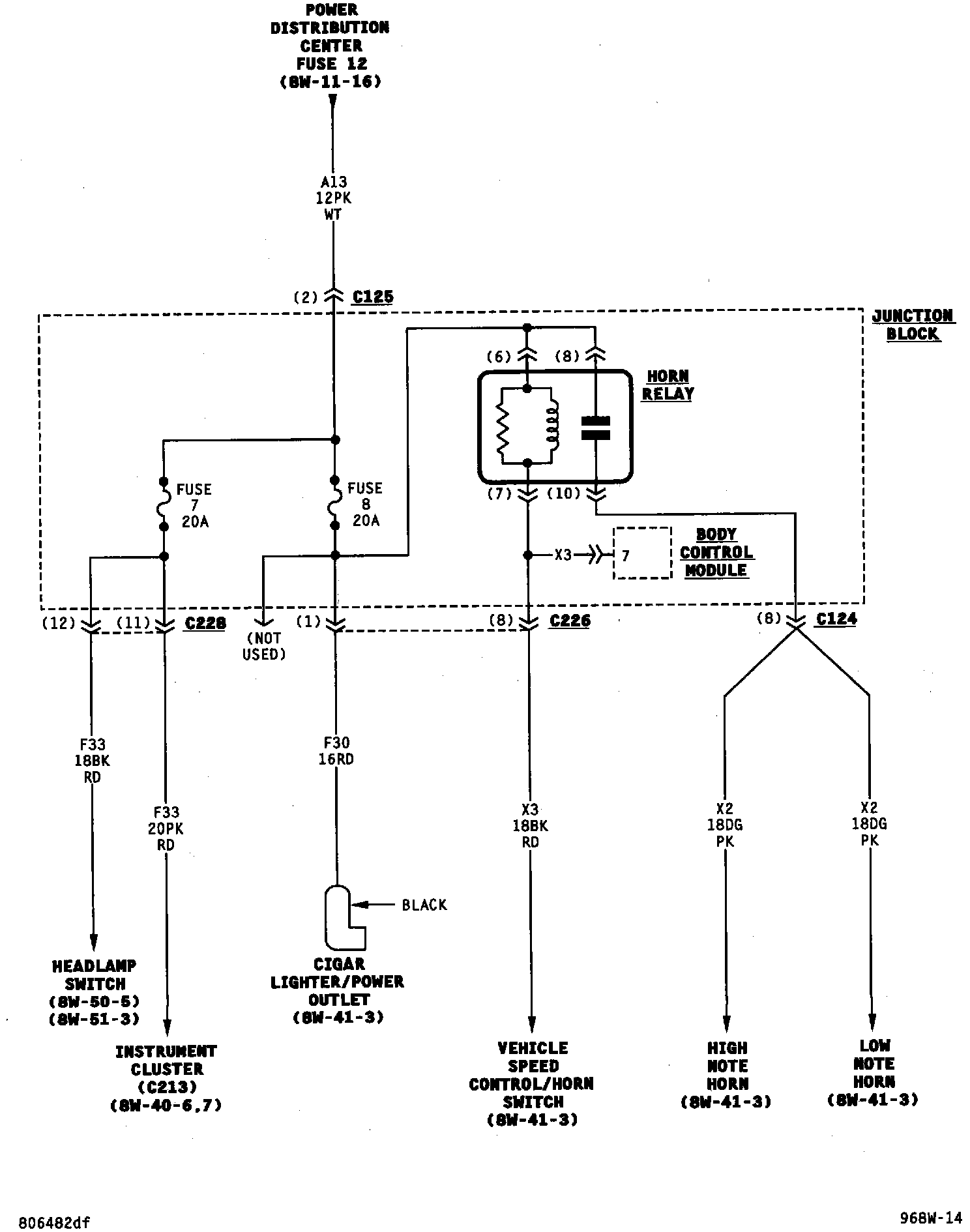

Junction Block (Part 1 Of 14):

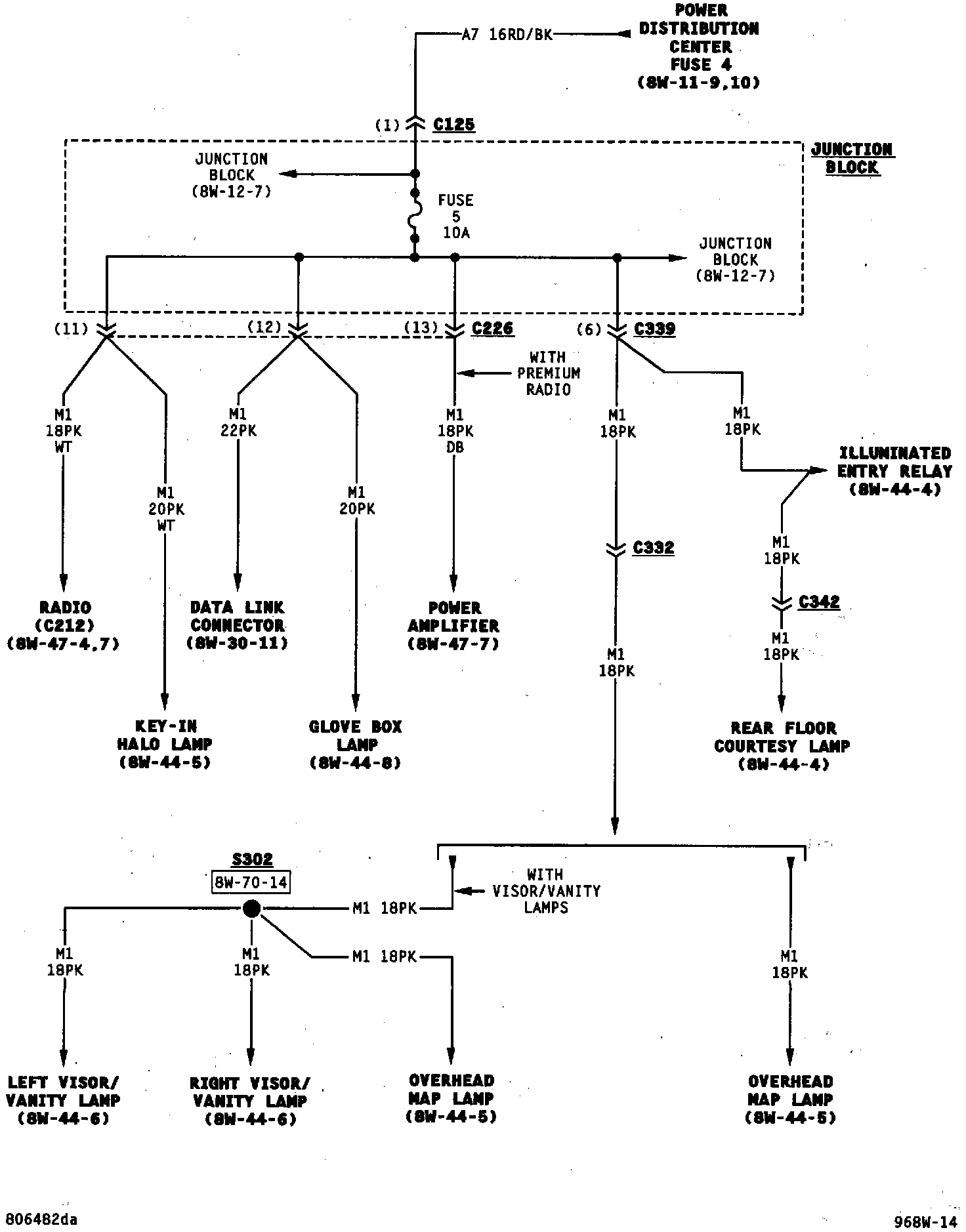

Junction Block (Part 2 Of 14):

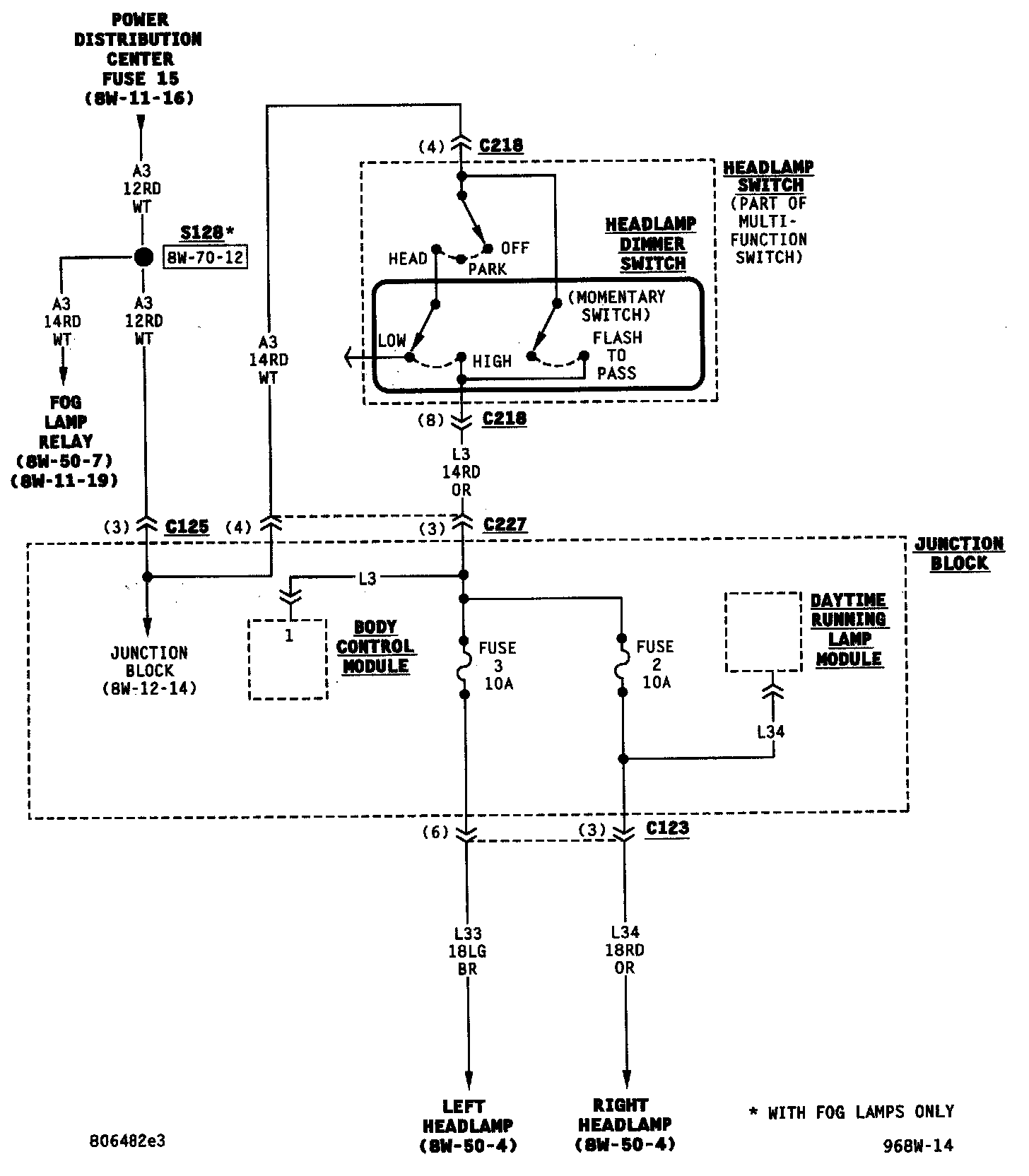

Junction Block (Part 3 Of 14):

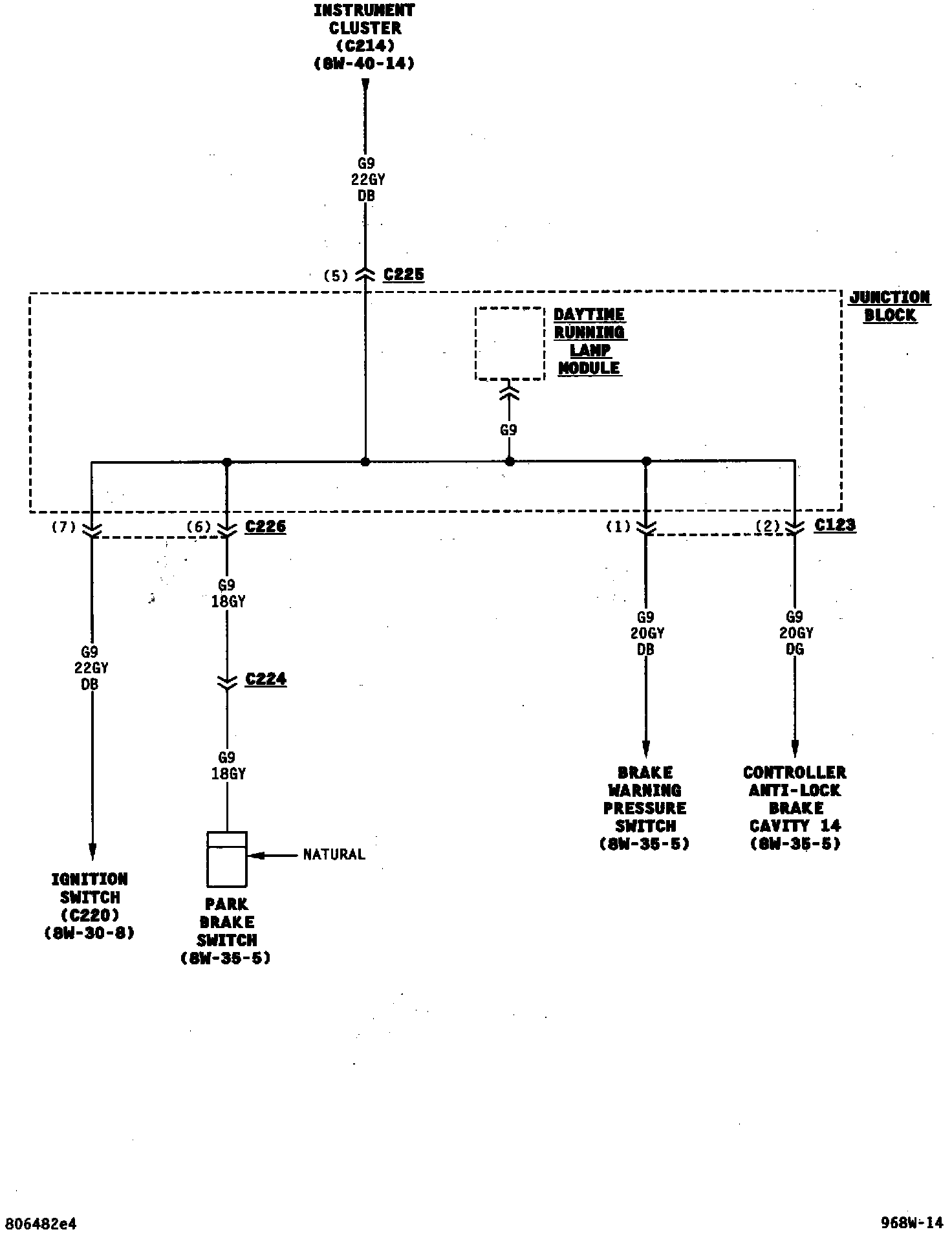

Junction Block (Part 4 Of 14):

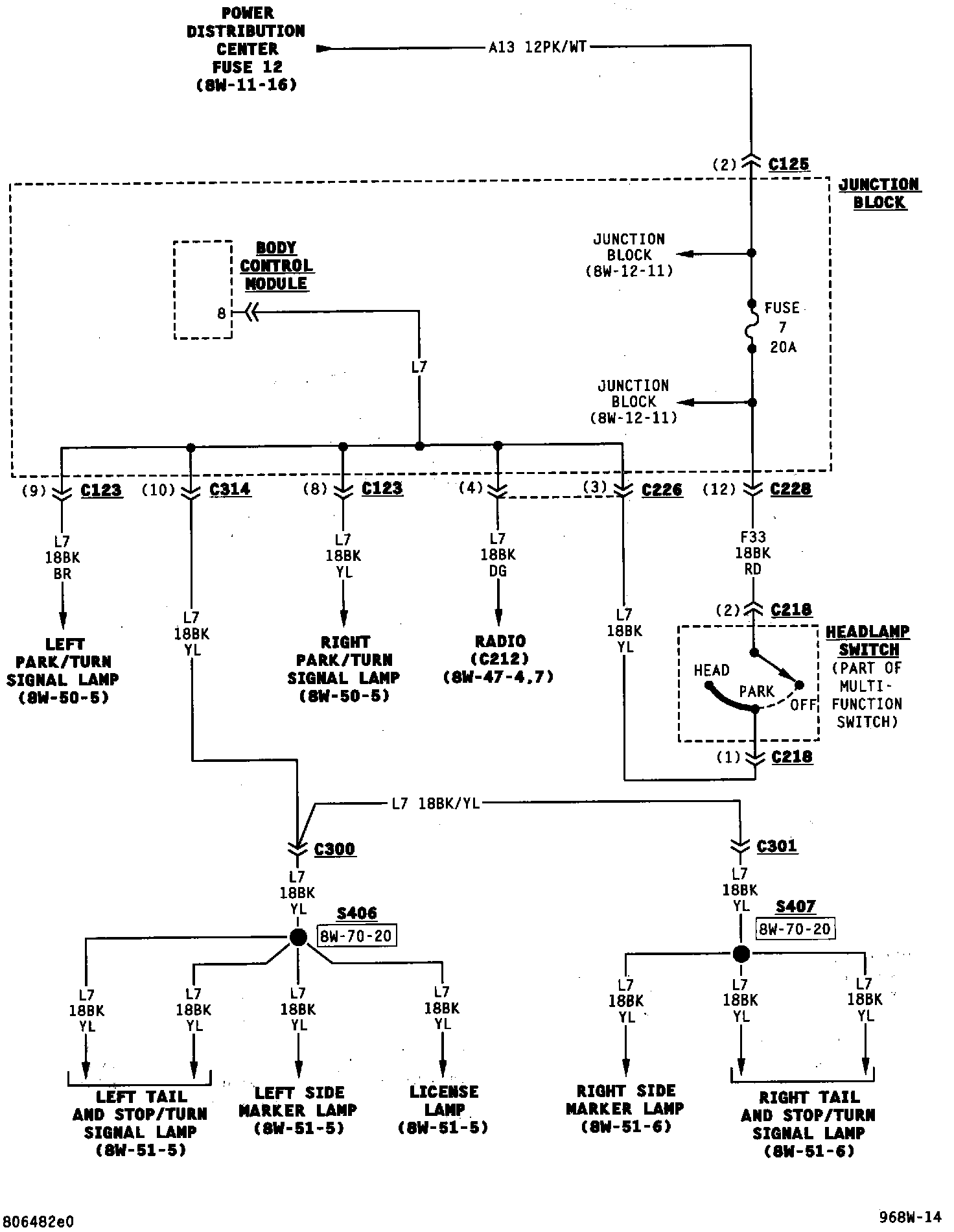

Junction Block (Part 5 Of 14):

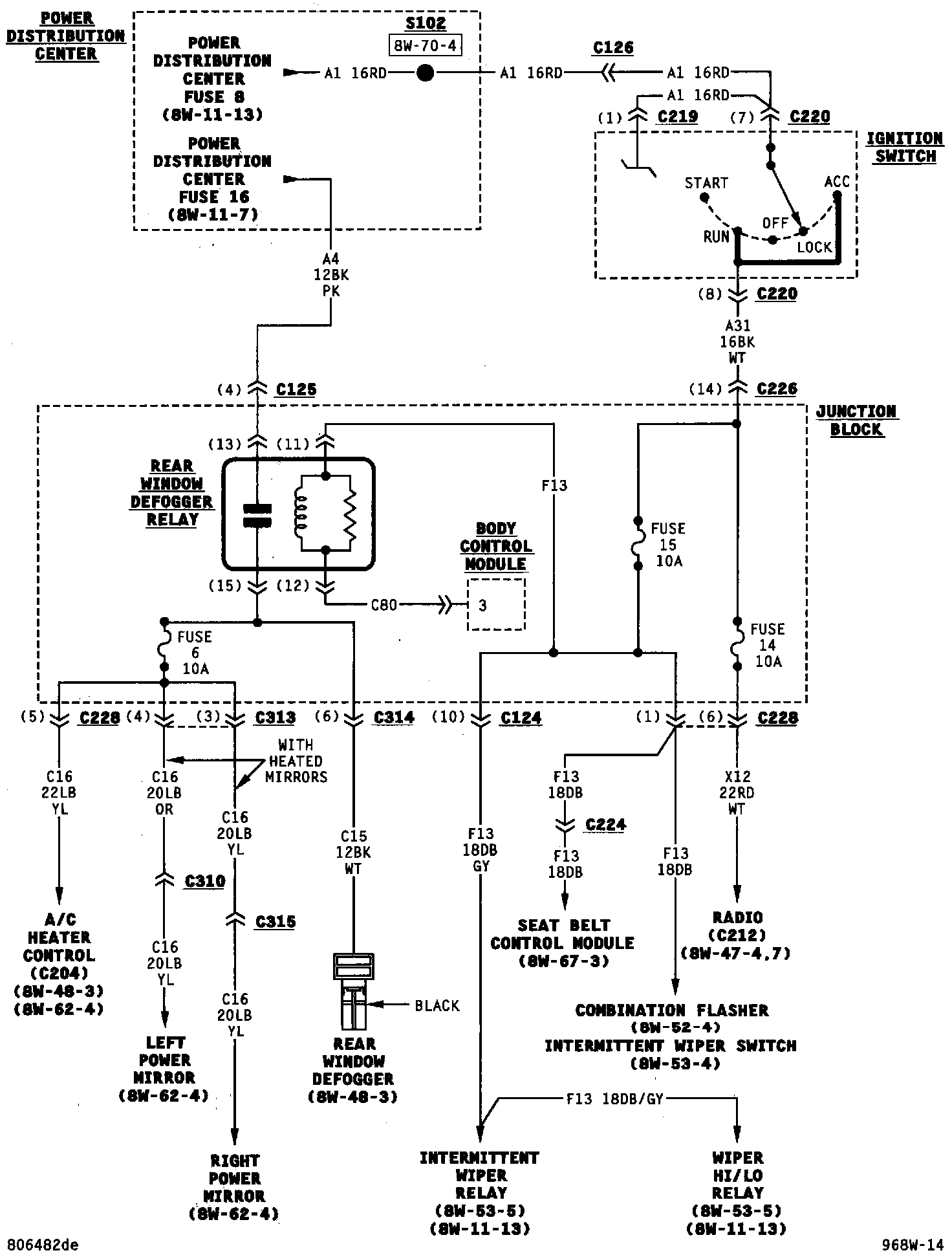

Junction Block (Part 6 Of 14):
Junction Block (Part 7 Of 14):
Junction Block (Part 8 Of 14):
Junction Block (Part 9 Of 14):
Junction Block (Part 10 Of 14):
Junction Block (Part 11 Of 14):
Junction Block (Part 12 Of 14):
Junction Block (Part 13 Of 14):
Junction Block (Part 14 Of 14):
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
