Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-80 Connector Pin-Outs >> Sheet 8W-80-23

Sheet 8W-80-23

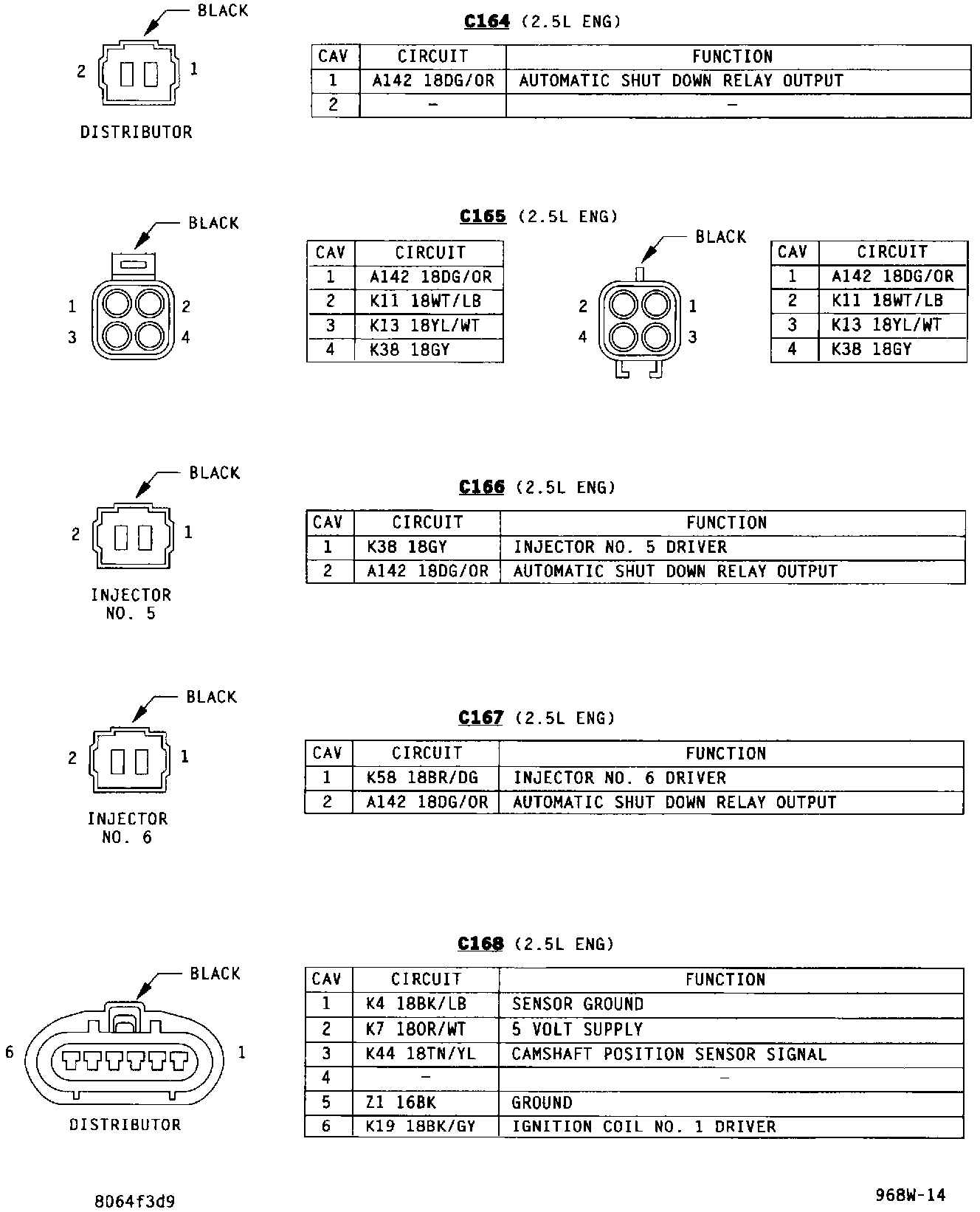

Connector Pin-Outs (Part 20 Of 52):
