Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-70 Splice Information >> Sheet 8W-70-5

Sheet 8W-70-5

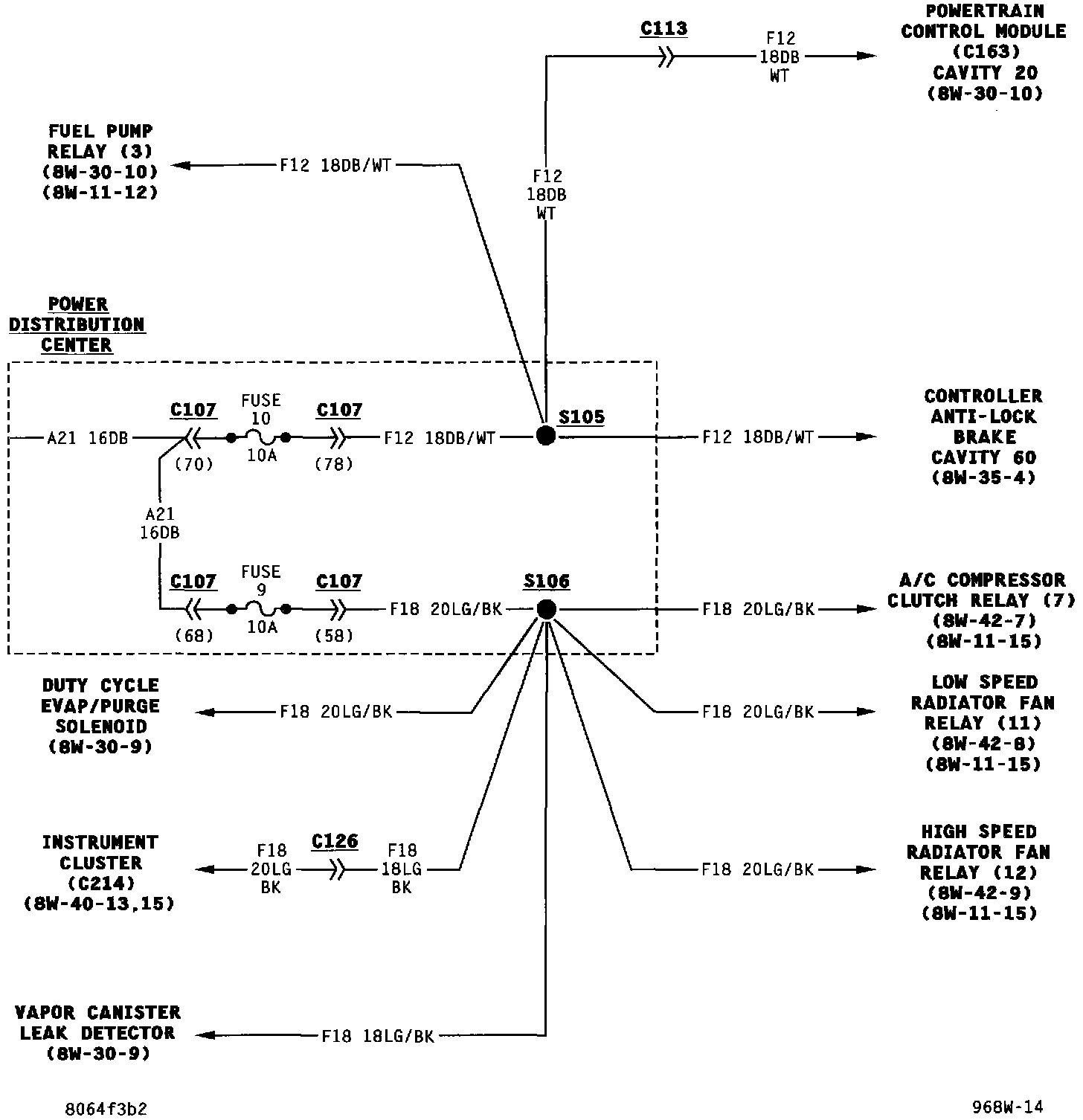

Splice Information (Part 3 Of 19):
