Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-42 Air Conditioning/Heater >> Sheet 8W-42-7

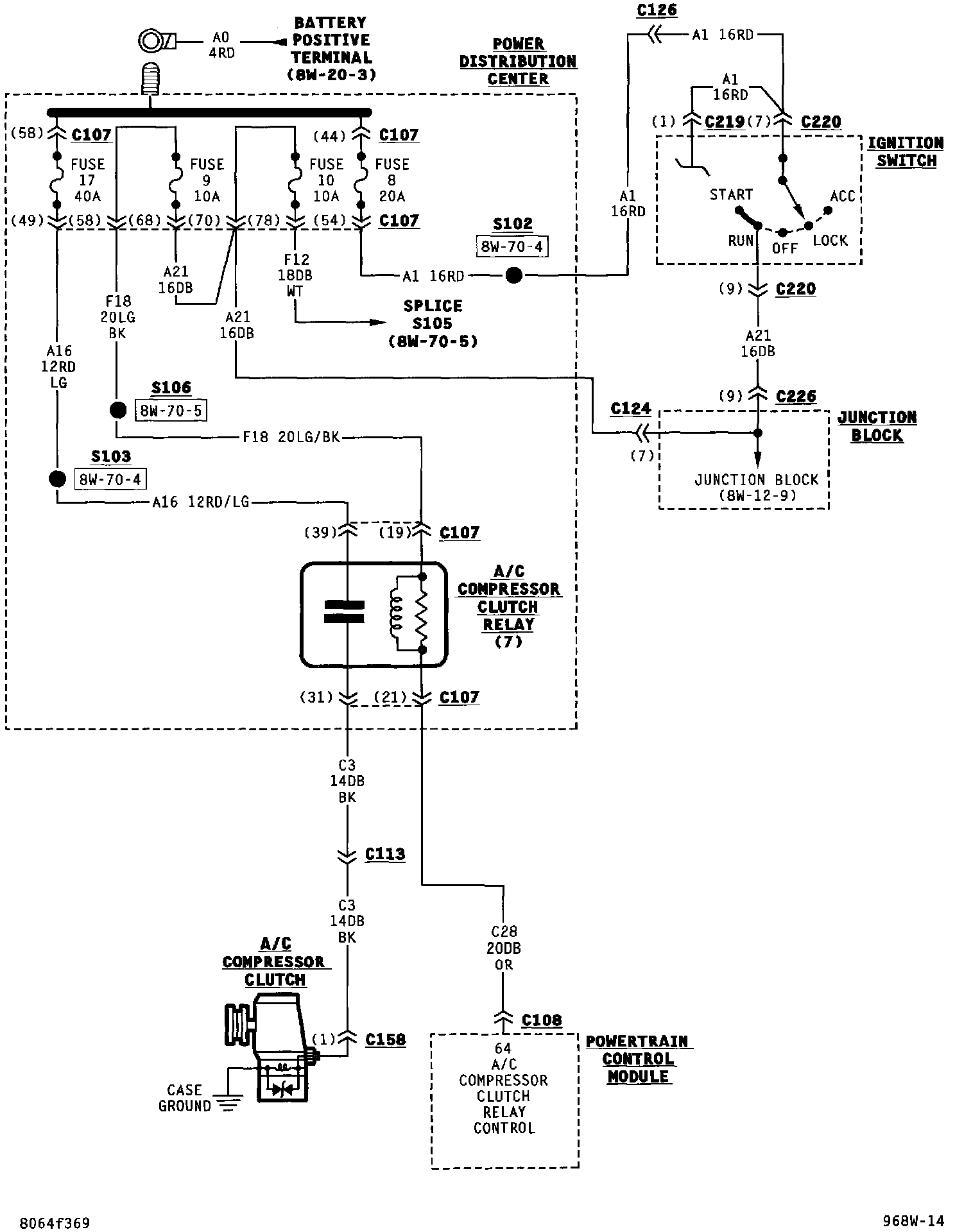

Sheet 8W-42-7

Air Conditioning/Heater (Part 4 Of 6):
