Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-31 Transmission Controls >> Sheet 8W-31-11

Sheet 8W-31-11

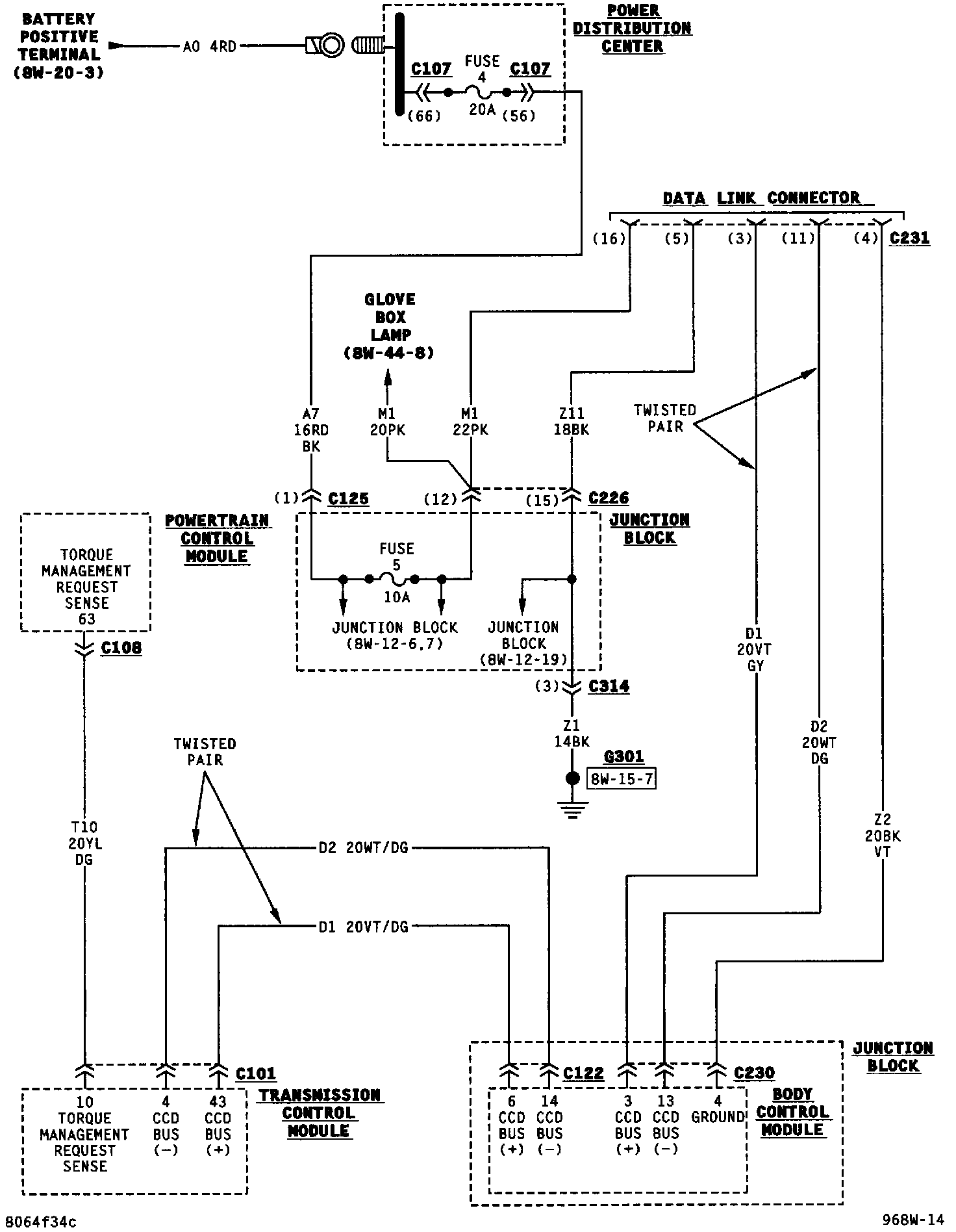

Transmission Control System (Part 8 Of 9):
