Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Group Number >> Group 8W-12 Junction Block >> Sheet 8W-12-18

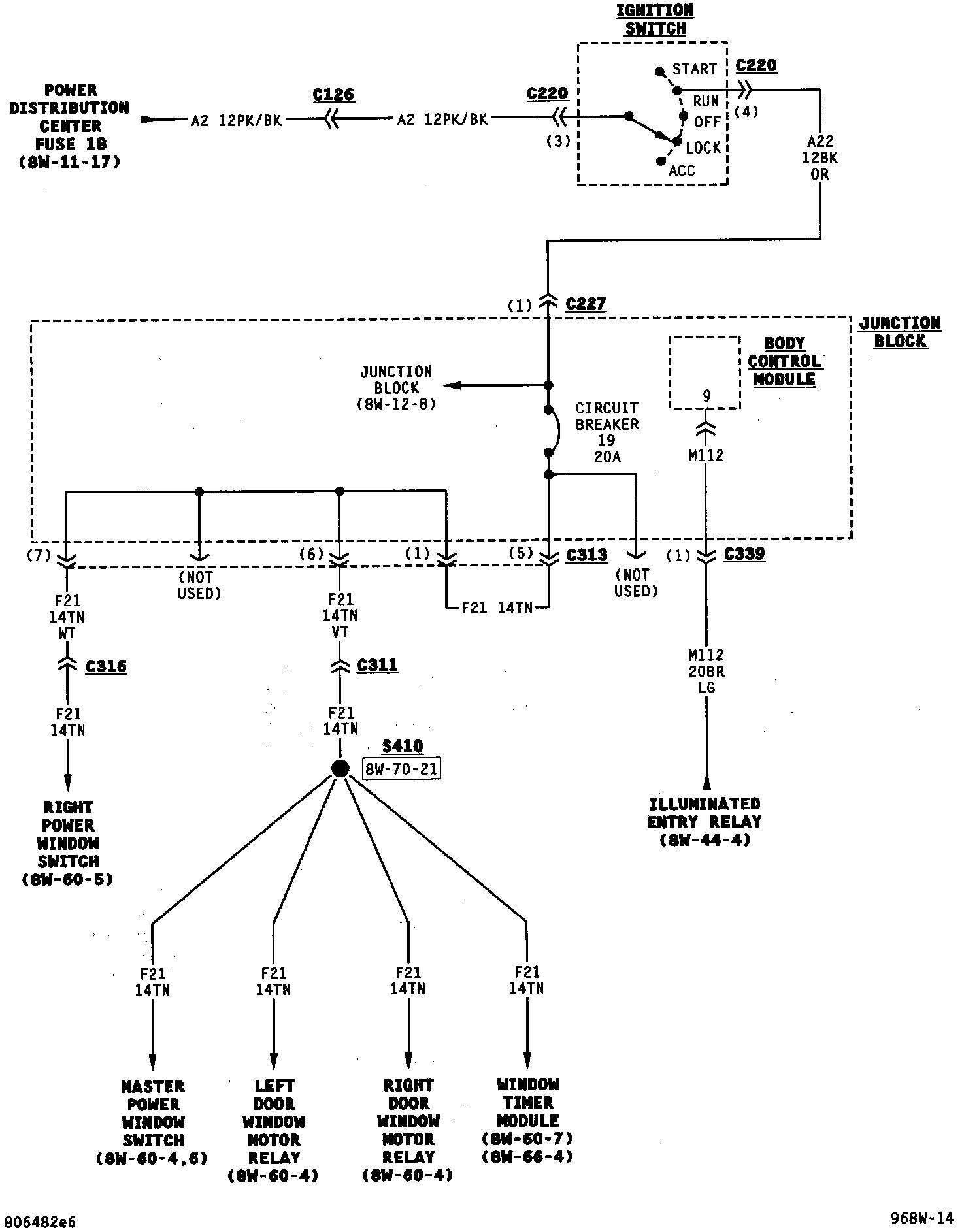

Sheet 8W-12-18

Junction Block (Part 13 Of 14):
