Main Relay (Computer/Fuel System)
Main Relay (Computer/Fuel System)

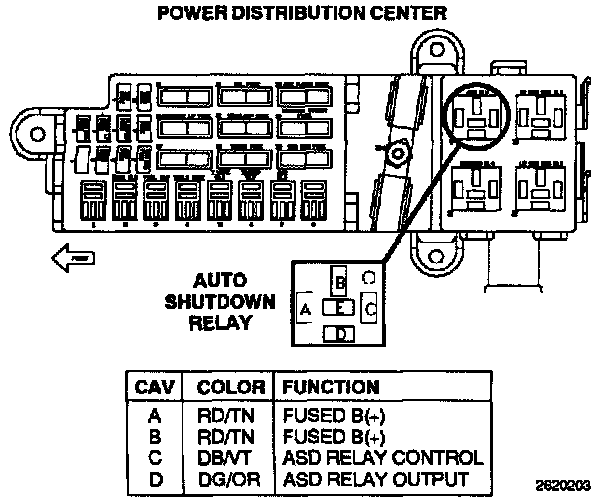

Automatic Shutdown Relay Connector:

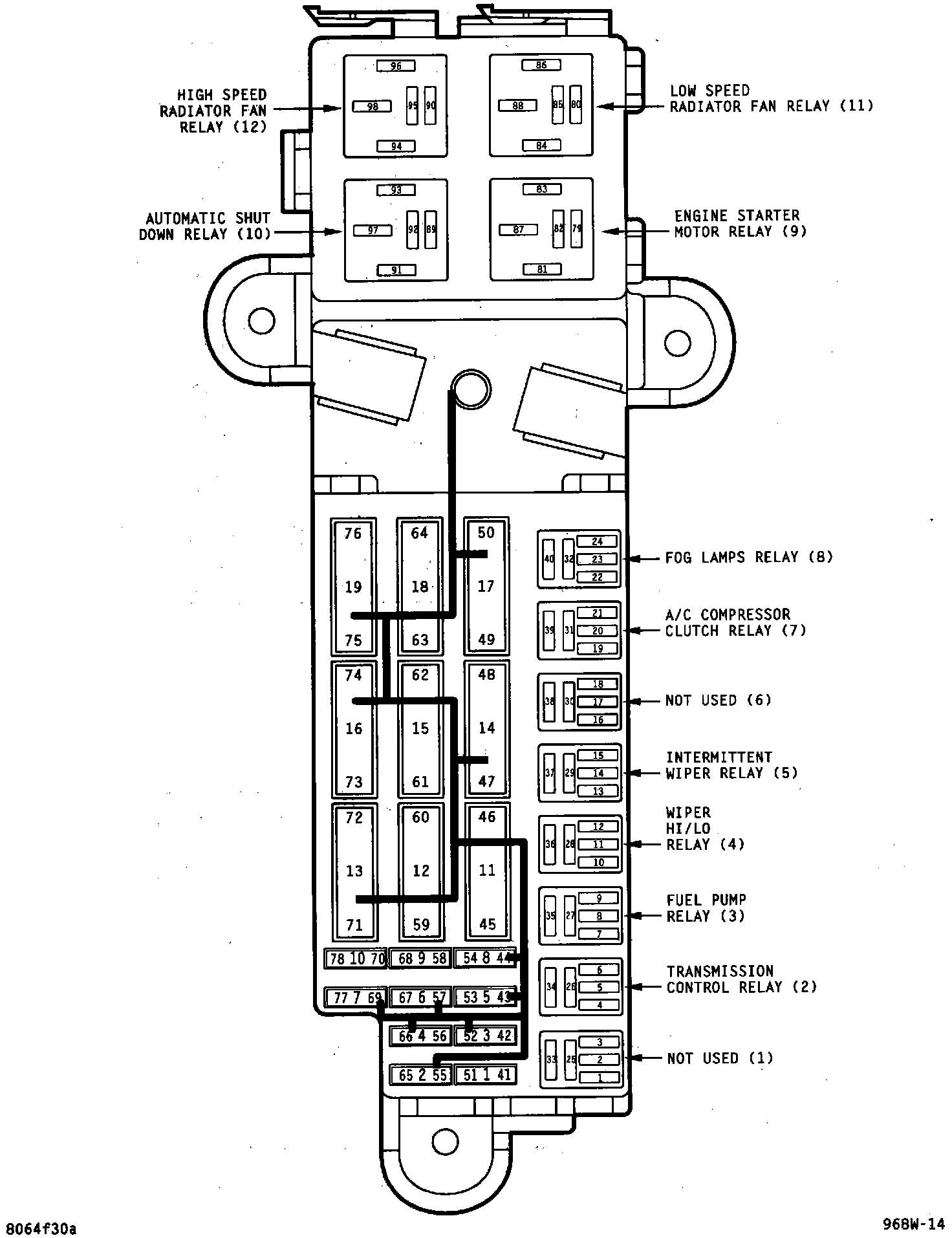

Power Distribution (Part 1 Of 4):
