Junction Block

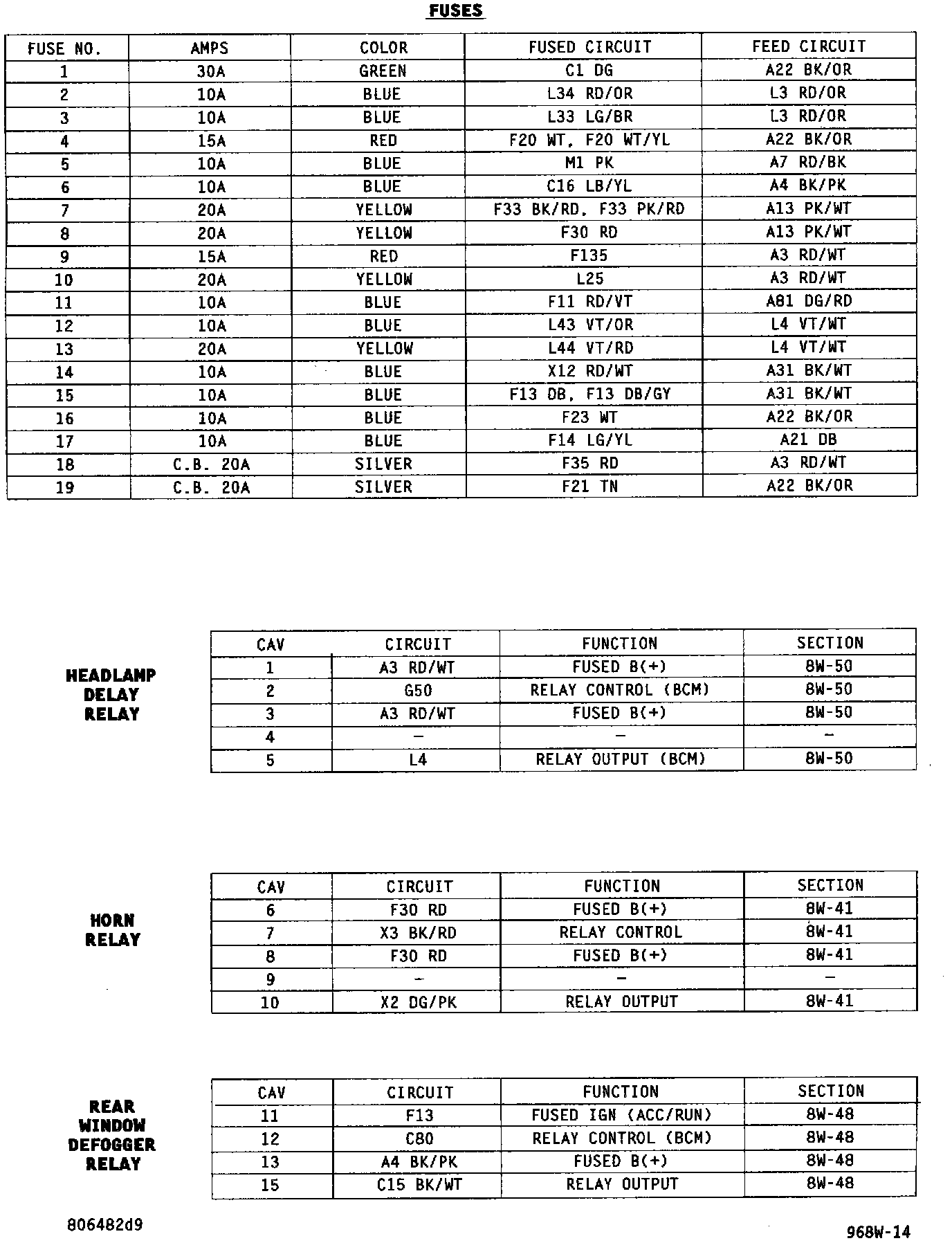

Junction Block (Part 1 Of 3):

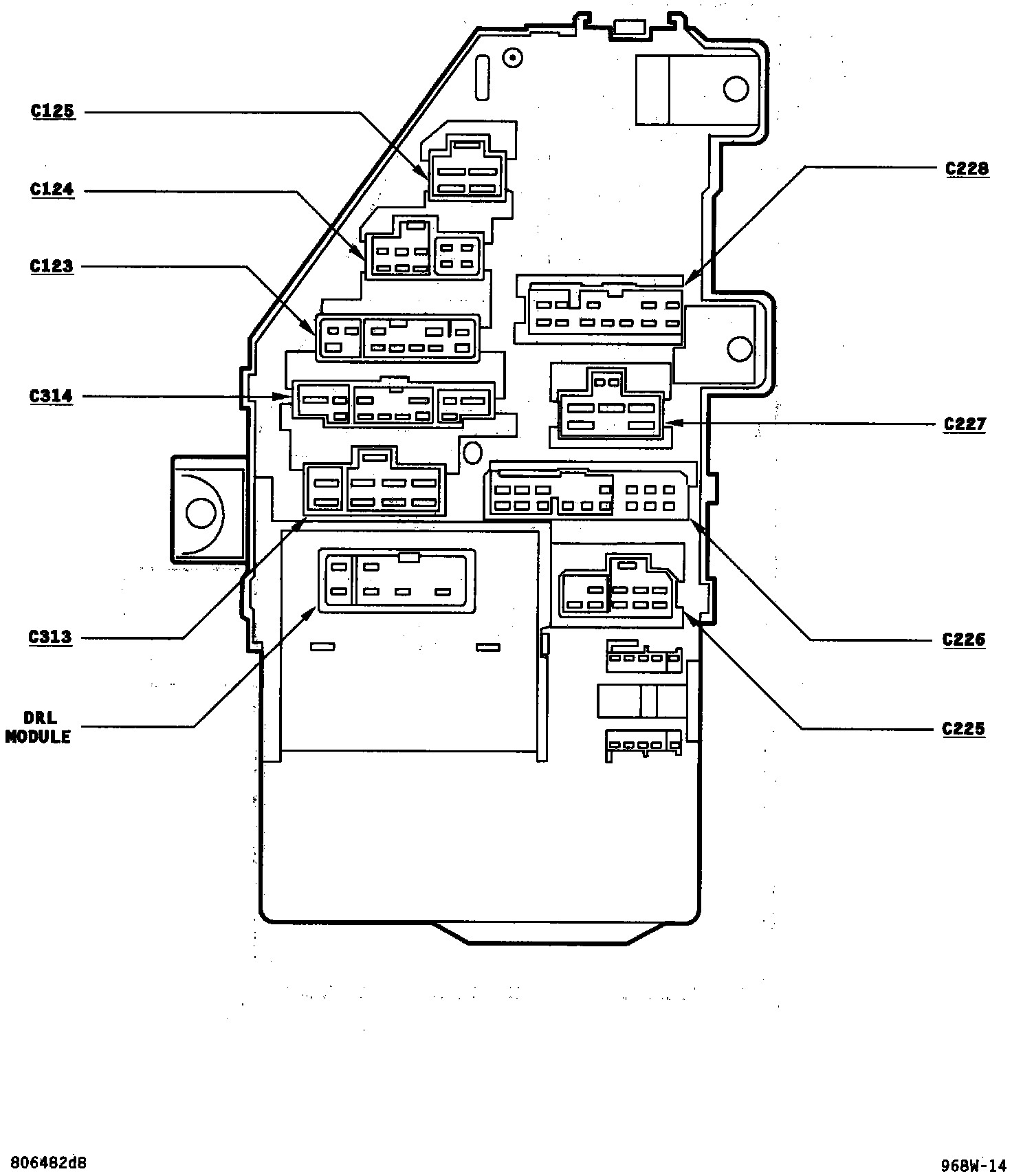

Junction Block (Part 2 Of 3):




Junction Block (Part 3 Of 3):






NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
