Home >> Chrysler >> 1996 >> Sebring Convertible L4-2.4L DOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Air Bag Control Module >> Air Bag Control Module 13 Way Connector

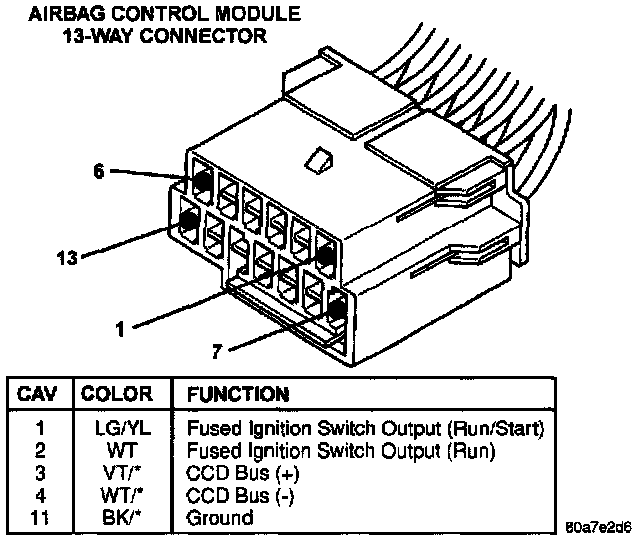

Air Bag Control Module 13 Way Connector

* = Wire With Tracer Stripe:
