Electrical Diagrams

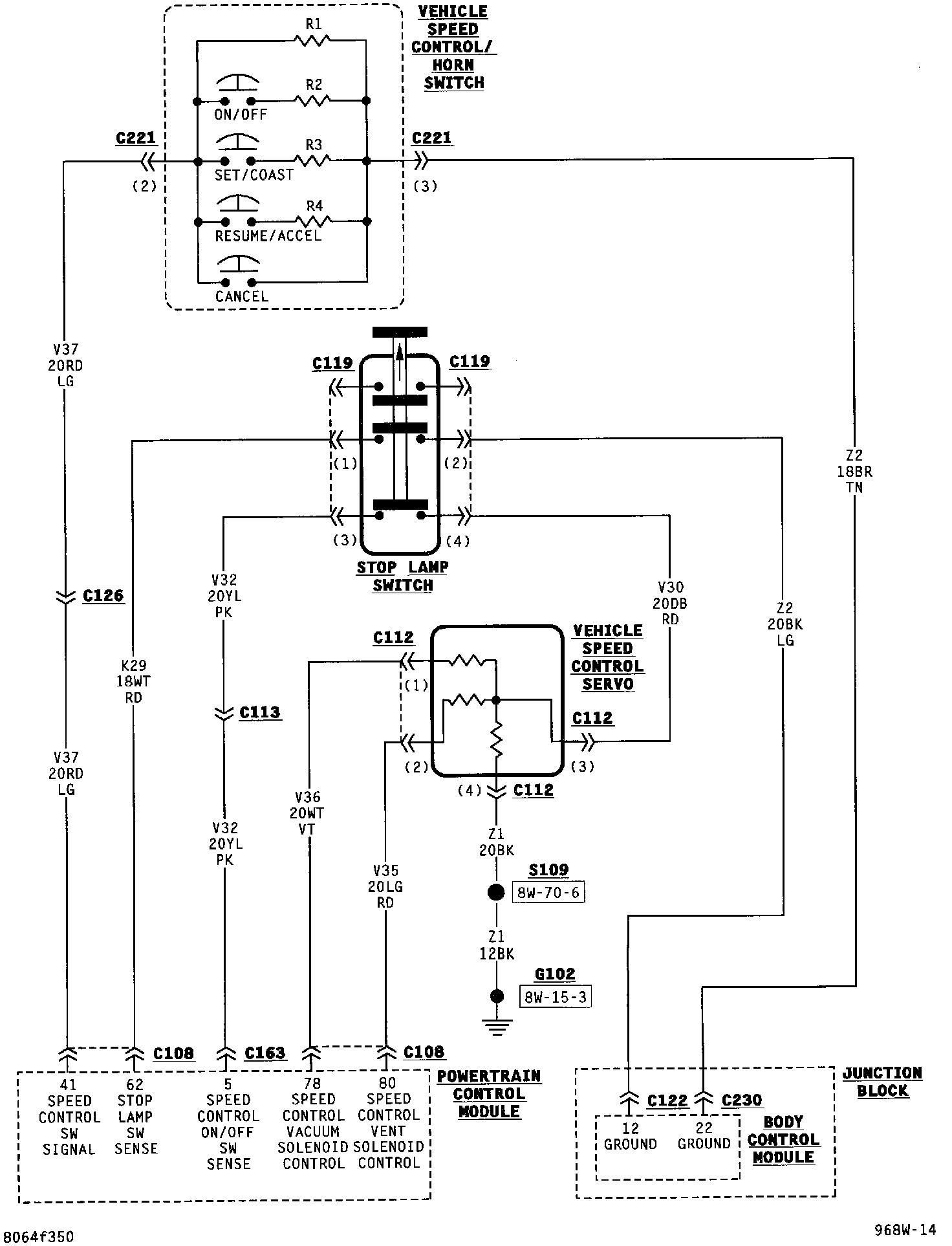

Vehicle Speed Control (Part 1 Of 2):
Vehicle Speed Control (Part 2 Of 2):
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
