Disc Brake System: Testing and Inspection

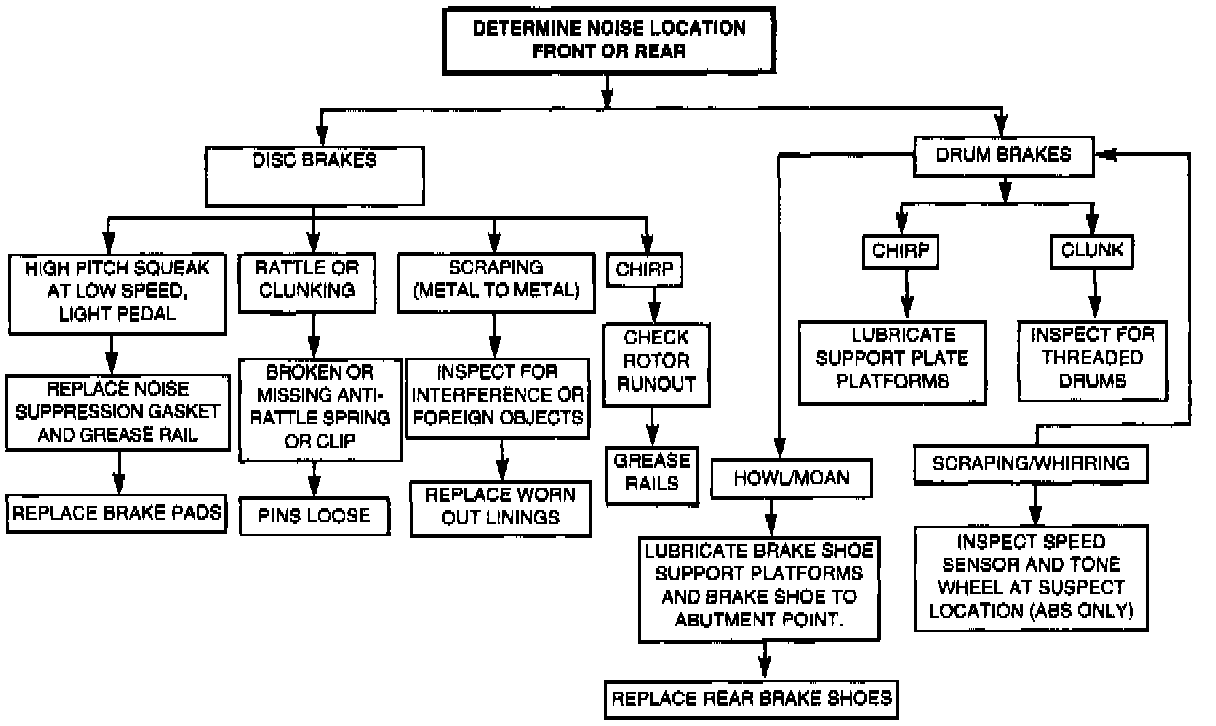

Fig 1 Brake System Troubleshooting (Part 1 Of 2):

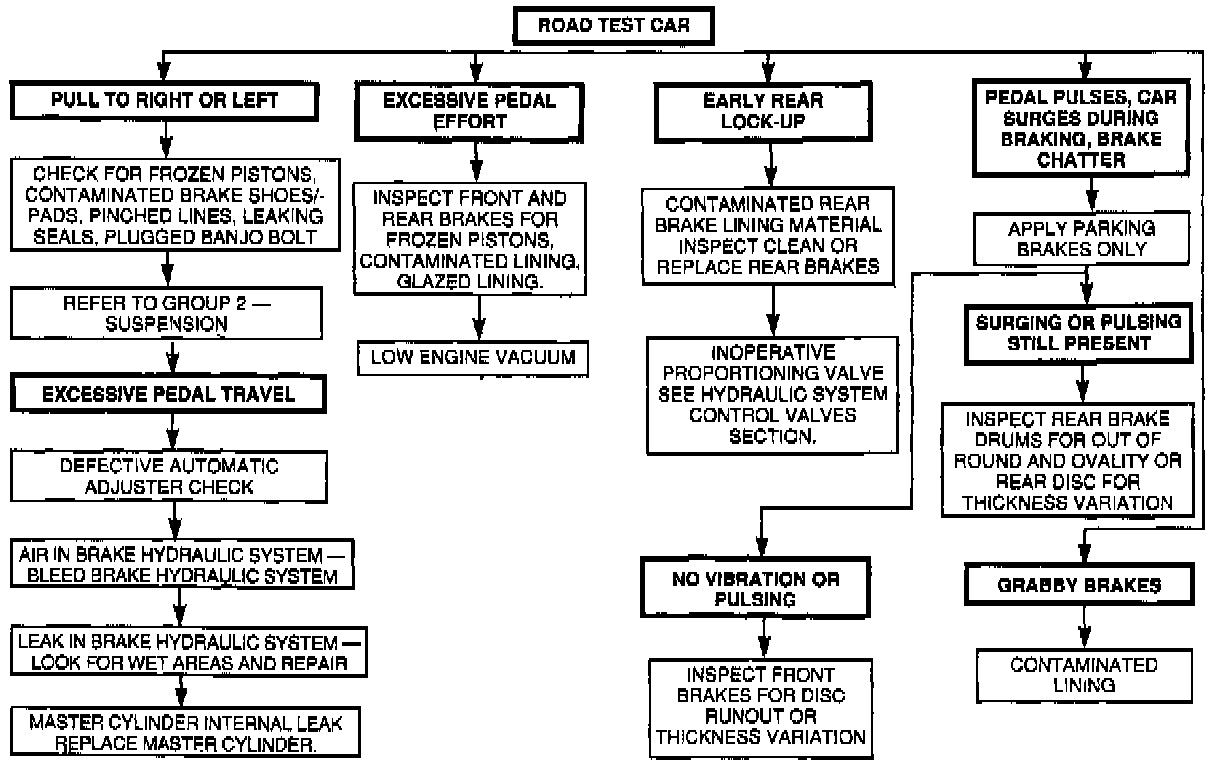

Fig 1 Brake System Troubleshooting (Part 2 Of 2):
